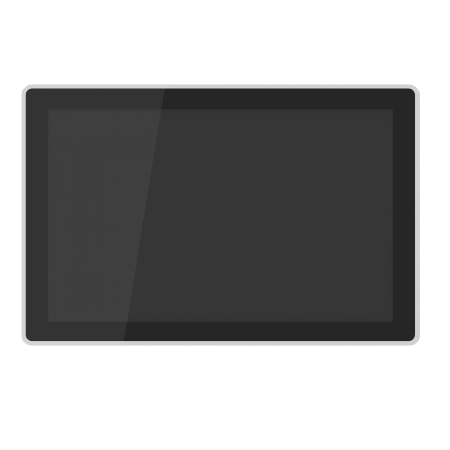

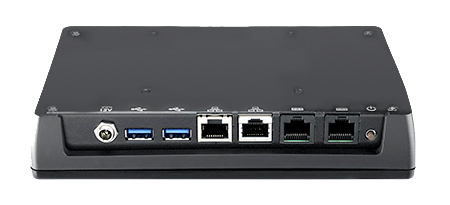

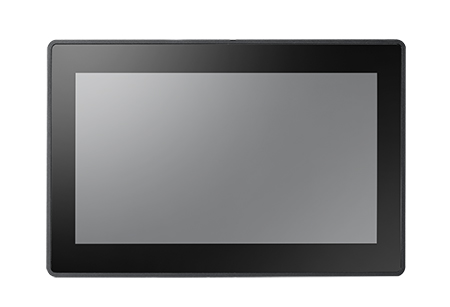

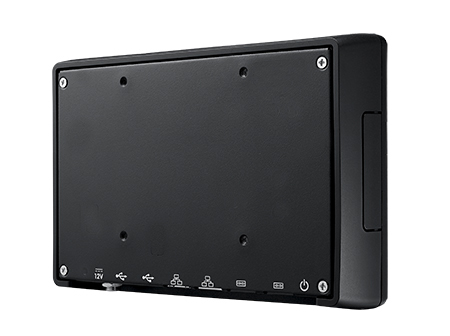

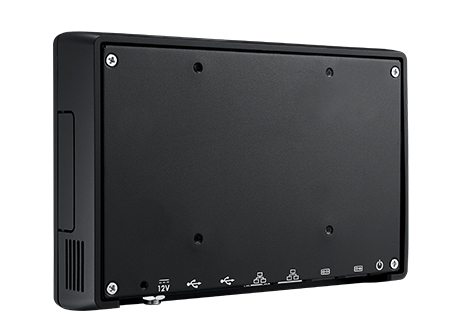

UTC-307GP-ATW0E Phase Out 7" Touch Screen Computer (PoE Model) with Intel® Celeron® N3350 in White

7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White
  • 7" Touch Screen Computer (PoE Model) with Intel<sup>&#174;</sup> Celeron<sup>&#174;</sup> N3350 in White

  1. Features Intel® Celeron® N3350(default)/Pentium® N4200 processor
  2. Lightweight, fanless system with low power consumption
  3. Detachable frame design for stand-alone, panel, or in-wall mount installation
  4. IP65-rated front panel for water and dust resistance
  5. Seamless optional peripherals: barcode scanner, MSR, RFID
  6. Supports Power over Ethernet function (PoE)
  7. VESA 75mm standard mounting holes
  8. Optional green and red LED light to support indicator service
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
2 years extended warranty
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Processor System
CPU
Intel® Celeron® N3350 1.10GHz
Processor System
OS
Win 10 IoT Enterprise 64bit / Android 6.0 / Android 8.1 / Linux Ubuntu 18.04
Processor System
RAM
2G DDR3L installed
Processor System
Storage
1 x M.2 2242 SSD
Display
Brightness
450 cd/m²
Display
Max. Resolution
WVGA (800 x 480)
Display
Size
7" TFT LCD
Touch Screen
Type
Projected Capacitive
Color
Color
White
I/O Interface
Ethernet
2 x Gigabit Ethernet (1 with PoE)
I/O Interface
Extendable Slot
1 x M.2 key2230, 1 x M.2 key2242
I/O Interface
Serial Port
2 x COM (RS-232)
I/O Interface
Speaker
1 x 2W Speaker
I/O Interface
USB Port
2 x USB3.0, 2 x USB3.0 (optional)
Power
Input Rating
12 V/3 A ~ 24 V/1.5 A (36W ITE Adapter) / Optional IEEE 802.3at/30W PoE
Power
PoE
IEEE 802.3at/30W (Optional)
Environment
Operating Humidity
10 ~ 95% @ 40°C non-condensing
Environment
Operating Temperature
0~40° C
Environment
Shock
10G peak acceleration (11 msec. duration)
Environment
Vibration
0.5G
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
UTC-WALL-MOUNT5E Fixed Wall Mount Kit for UTC Series All-in-One Touch Computer (VESA 75mm) $28.00
UTC-300P-R70E RFID Reader, White, for UTC-307/UTC-310 series $120.00
UTC-300P-R71E RFID Reader, Black, for UTC-307/UTC-310 series $120.00
UTC-TABLE-STAND0E Table Stand, White, For UTC-307/310 $20.00
Part No. Qty
UTC-WALL-MOUNT5E
Fixed Wall Mount Kit for UTC Series All-in-One Touch Computer (VESA 75mm)
Unit Price: $28.00
UTC-300P-R70E
RFID Reader, White, for UTC-307/UTC-310 series
Unit Price: $120.00
UTC-300P-R71E
RFID Reader, Black, for UTC-307/UTC-310 series
Unit Price: $120.00
UTC-TABLE-STAND0E
Table Stand, White, For UTC-307/310
Unit Price: $20.00
