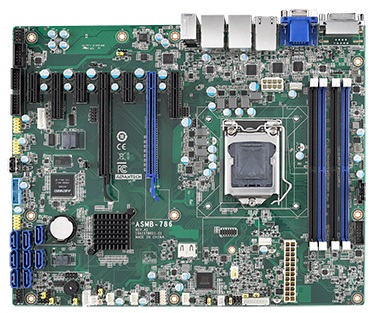

ASMB-786G2-00A1 LGA 1151 ATX Server Board C246 GbEx2

LGA 1151 ATX Server Board C246 GbEx2
  • LGA 1151 ATX Server Board C246 GbEx2
  • LGA 1151 ATX Server Board C246 GbEx2
  • LGA 1151 ATX Server Board C246 GbEx2

  1. Supports LGA 1151 Intel® Xeon® & 8th Generation Core™ i7/i5/i3 processors
  2. DDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 64 GB
  3. 1 Gen 3.0 PCIe x16 link (or two PCIe x16 slots with x8 link), two PCIe x4, and three PCIe x1 slots
  4. Triple displays - DVI-D, VGA and HDMI 2.0 ports
  5. 8 SATA3 ports and four USB 3.1 ports
  6. Rackmount optimized placement with positive air flow design
  7. 0 ~ 60° C ambient operation temperature range
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadDriverManual3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$659.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
Controller
Intel HD graphics Integrated
Display
Display Interface
VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200, HDMI: Up to 2K/4K
Display
Graphic Memory
Share system memory up to 1 GB with 2 GB and above memory installed
Display
Multiple Display
Triple
Form Factor
Form Factor
ATX
I/O
COM Port
2 x RS-232
I/O
GPIO
8-bit
I/O
LPT
1
I/O
PS/2 Keyboard/Mouse
1
I/O
SAS controller
-
I/O
SAS Port
-
I/O
SATA
8 x SATAIII (RAID 0,1,5,10)
I/O
SPDIF
1
I/O
System Fan
5
I/O
USB2.0
7
I/O
USB3.0
6
Memory
Capacity
Up to 128 GB (32 GB per DIMM)
Memory
ECC Support
Yes
Memory
REG Support
-
Memory
Technology
Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz
Ethernet
Connector
2 x RJ45
Ethernet
Controller
1 x Intel I219-LM + 1 x Intel I210-AT
Ethernet
Speed
10/100/1000 Mbps
Processor System
BIOS
AMI SPI 256 Mbit
Processor System
Chipset
Intel C246
Processor System
Core Number
Up to 6 cores
Processor System
CPU
LGA 1151 Intel® Xeon® E and 8th/9th generation Core™ i7/i5/i3 processors
Processor System
CPU TDP
Up to 95W
Processor System
DMI
Gen3 x4
Processor System
Frequency
Up to 3.7 GHz
Processor System
Integrated Graphics
Yes
Processor System
L3 Cache
Up to 13.5MB
Rear I/O Interface
COM
-
Rear I/O Interface
DVI
1
Rear I/O Interface
Ethernet
2
Rear I/O Interface
PS/2
-
Rear I/O Interface
USB3.1 Gen 2
4
Rear I/O Interface
VGA
1
Watchdog Timer
Interval
Programmable 1 ~ 255 sec/min
Watchdog Timer
Output
System Reset
Power Requirement
Voltage
+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total
Certification
EMC
CE/FCC
Environment
Non-Operating Vibration
3.5 Grms
Environment
Non-Operational Temperature
-40 ~ 85° C @ 95% RH Non-Condensing
Environment
Operating-Temperature
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Expansion Interface
LPC
1
Expansion Interface
PCI
-
Expansion Interface
PCI Express x 1
3
Expansion Interface
PCI Express x 16
1(or 2 PCIe x8)
Expansion Interface
PCI Express x 4
2
Expansion Interface
SMBus
1
Physical Characteristics
Dimensions (LxW)
304.8 x 244 mm (12" x 9.6")
Physical Characteristics
Weight
0.8 kg (1.8 lb)
Management Solution
Out of band remote management
Optional (IPMI-1000) / AMT
Management Solution
Software
SUSIAccess (Optional)
Recommended Peripherals

Recommended Industrial Grade Peripherals (Optional – Not Required)

Processor
Part No. Description Unit Price Qty
96MPI3C-3.1-6M11T CPU ON SOCKET, CORE 3.1G 6M 1151P 4CORE I3-8100T $156.00
96MPI3C-3.6-6M11T CPU ON SOCKET, CORE 3.6G 6M 1151P 4CORE I3-8100 $156.00
96MPI3CR-2.2-6M11T CORE 2.2G 6M 1151P 4C I3-9100TE $163.00
96MPI3CR-3.1-6M11A CORE 3.1G 6M 1151P 4C I3-9100E(SRGQY) $204.00
96MPI5C-2.1-9M11T CPU ON SOCKET, CORE 2.1G 9M 1151P 6CORE i5-8500T $256.00
96MPI5C-3.0-9M11T CPU ON SOCKET, CORE 3G 9M 1151P 6CORE I5-8500 $256.00
96MPI5CR-2.2-9M11T CORE 2.2G 9M 1151P 6C I5-9500TE $256.00
96MPI5CR-3.0-9M11T CORE 3G 9M 1151P 6C I5-9500E $256.00
96MPI7C-2.4-12M11T CPU ON SOCKET, CORE 2.4G 12M 1151P 6CORE I7-8700T $404.00
96MPI7C-3.2-12M11T CPU ON SOCKET, CORE 3.2G 12M 1151P 6CORE I7-8700 $404.00
96MPI7CR-1.8-12M11 CORE 1.8G 12M 1151P 8C I7-9700TE $433.00
96MPI7CR-2.6-12M11 CORE 2.6G 12M 1151P 8C I7-9700E $436.00
96MPXEC-3.4-8M11T CPU ON SOCKET, XEON 3.4G 8M 1151P 4CORE E-2124G $333.00
96MPXEC-3.7-12M11T CPU ON SOCKET, XEON 3.7G 12M 1151P 6CORE E-2176G $541.00
96MPXECR-2.0-16M11 XEON 2G 16M 1151P 8C E-2278GEL $692.00
96MPXECR-3.3-16M11 XEON 3.3G 16M 1151P 8C E-2278GE $696.00
96MPXECR-3.4-11M11 XEON 3.4G 12M 1151P 6C E-2226GE $477.00
CPU Fans
Part No. Description Unit Price Qty
1960049408N001 CPU cooler for 1U Rackmount chassis $71.00
1960052651N021 CPU Cooler for 2U, 4U and wallmount chassis $42.00
Memory
Part No. Description Unit Price Qty
AQD-D4U8GE24-SE (DEL22)8G ECC DDR4-2400 1GX8 1.2V SAM $93.00
AQD-D4U8GN26-SE MEMORY MODULE, 8G DDR4-2666 1GbX8 1.2V SAM $53.00
Cables and Accessories
Part No. Description Unit Price Qty
1700002204 CABLE/WIRE, (Del)A Cable 2*5P-2.54 /USB-A 4P(F)*2 27CM F/9 $10.00
1700008461 CABLE/WIRE, A Cable USB-A 4P(F)*4/2*5P-2.54*2 30.5 W/BKT $10.00
1700019268-11 CABLE/WIRE, A Cable M-DIN 6P(F)*2/1*6P-2.5 35cm ARS-2110 $10.00
1700020294-01 CABLE/WIRE, F Cable D-SUB 25P/IDE#3 2*13P-2.54 42CM W/BKT $10.00
1700028292-01 CABLE/WIRE, M Cable IDE#2 20P-2.0/USB-A 9P(F)*2 30CM W/BKT $10.00
1701090401 CABLE/WIRE, F Cable IDE#3 10P-2.54/D-SUB 9P(M) 40cm W/BKT $10.00
1960063434N000 SHEET METAL, PCI PS2 BRACKET FOR ASMB-584 $10.00
PCA-COM232-00A1E CIRCUIT BOARD, 4 Ports RS-232 Module for CPU card, A101-1,RoHS $41.00
PCA-COM485-00A1E CIRCUIT BOARD, 4 Ports RS-485/422 Module by LPC, A101-1,RoHS $49.00
PCA-TPM-00B1E CIRCUIT BOARD, TPM 2.0 Module by LPC for CPU cards, A101-1,RoHS $44.00
Add to Quote Add to Cart
