Home Boards & Cards Network Interface & Acceleration Cards

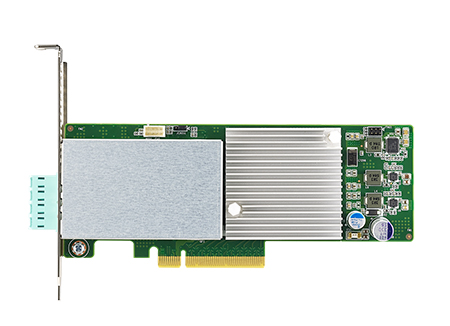

PCIE-2221BP-00A1E Phase out ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710

ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710
  • ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710
  • ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710
  • ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710
  • ETHERNET DEVICE, 2-ports 10G fiber bypass NIC w Intel XL710

  1. 1 x Intel® X710-BM2 10GbE Ethernet controller
  2. 2 x 10GbE LAN ports
  3. Supports 10G-SR Optical Bypass Module
  4. PCIe gen. 3 x8 host interface
  5. Supports SR-IOV based virtualization
  6. Low profile and half height form factors
Certifications
CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info
2 years extended warranty
Request Quantity Discount
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Voltage
+12V
Power
Watts
8.5W
Ethernet
PCI Express Lanes
x8
Ethernet
Port Number
2
Ethernet
Ports
10GbE SFP+
Ethernet
Speed
Gen 3
Controller
Controller
Intel® X710
Controller
Physical Functions
2
Controller
Virtual Functions
64
Certification
EMC
CE/FCC Class A
Mechanical Design
Board Dimensions
167 x 68.9 mm
Mechanical Design
Bracket
Full height and half height options available
Environment
Operating Humidity
0 to 90% (non-condensing)
Environment
Operating Temperature
0 ~ 55 °C (32 ~ 131 °F)
Environment
Storage
-40 ~ 65° C (-40 ~ 149° F)
Networking
LAN bypass
Supported
Compatibility (Processor architecture/Model)
Intel Broadwell
SKY-8100 / SKY-8200
Compatibility (Processor architecture/Model)
Intel Haswell
SKY-8200 / ASMB-923 / ASMB-823 / AGS-913
Compatibility (Processor architecture/Model)
Intel Kaby Lake
ASMB-585 / ASMB-785
Compatibility (Processor architecture/Model)
Intel Skylake
SKY-8101 / SKY-8201 / ASMB-815 / ASMB-825 / ASMB-925 / ASMB-935 / ASMB-975 / SKY-6100 / SKY-6200
Compatibility (Processor architecture/Model)
OS version
Win2012/ CentOS Linux release 7.3
