UNO-238-1 Compact IoT Edge Computer with 8th Generation Intel® Core™ i Processor

UNO-238-87N1AE
  • UNO-238-87N1AE
  • UNO-238-87N1AE
  • UNO-238-87N1AE
  • UNO-238-87N1AE
  • UNO-238-87N1AE
  • UNO-238-87N1AE

  1. 8th Generation Intel® Core™ i Processor
  2. Supports up to 32GB DDR4 Memory
  3. 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
  4. 32GB of eMMC 5.1 (Onboard)
  5. TPM 2.0 provides hardware-based security
  6. Compact, fanless design
  7. Threaded DC jack for reliable power supply
  8. Rubber stopper for stand mount and optional kit for DIN-rail mounting
Certifications
CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

€1,803.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Features

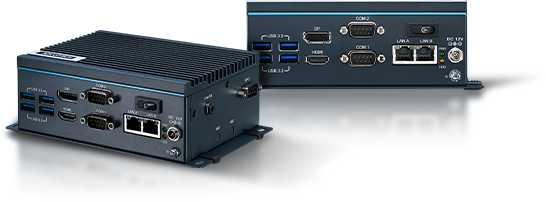

Compact but Powerful UNO-238

IoT Edge Computer with 8th Gen Intel® Core™ Processor

UNO-200 series are Industrial IoT edge computers aimed at IT-level applications. UNO-238 features its compact form factor with high computing performance. Equipped with the latest 8th gen Intel® Core™ i processor, diverse I/O interfaces, 32 GB eMMC memory, swappable RAM, and dual M.2 expansion card slots, UNO-238 provides optimal efficiency and superior edge computing in a compact size.

Feature Highlights

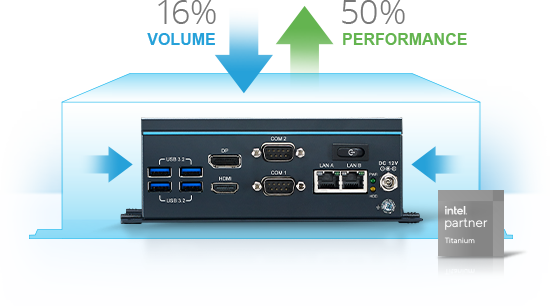

Compact Form Factor with Enhanced Computing Performance

  • 8th gen Intel processor delivers 50% increased performance compared to the previous model
  • Compact design (150 x 106 x 60 mm/5.91 x 4.22 x 2.36 in) is 16% smaller than its predecessor

Comprehensive I/O Supports Diverse Applications

  • 1 x M.2 3042/3052 B-key socket for a 5G/LTE module
  • 1 x M.2 2230 E-key socket for a Wi-Fi module
  • 4 x USB 3.2 Gen 2 for increased data transfer speeds (double that of Gen 1)

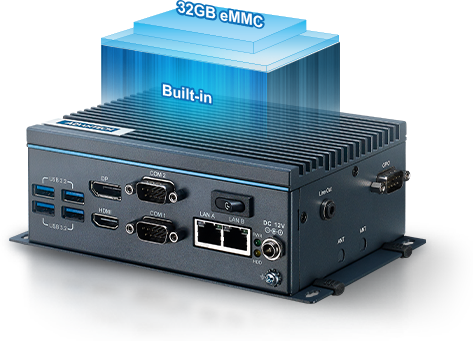

  • 32 GB eMMC memory on board
  • 2 x GbE, 8 x GPIO, 1 x HDMI, and 1 x DisplayPort

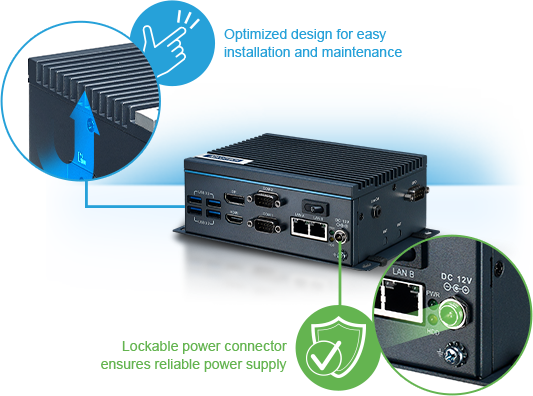

Increased Accessibility and Reliability

  • To reduce system downtime and ensure convenient maintenance, UNO-238 features an optimized design for easy RAM access and configuration. This allows customers to adjust RAM capacity according to their requirements and complete RAM installation without disassembling the entire chassis.
  • To prevent unexpected power interruptions or disconnections, the power adapter is equipped with a threaded DC jack that locks the connector in place to ensure stable and reliable power supply.
Target Applications

The optimized processing performance, compact form factor, and flexible I/O make UNO-238 ideal for a wide range of factory applications, including factory automation, process automation, and manufacturing execution system (MES) integration.

Factory Automation

AGV/AMR

MES Integration

Product Specifications

Dimensions

Unit: mm
UNO-238
Front View
Front I/O

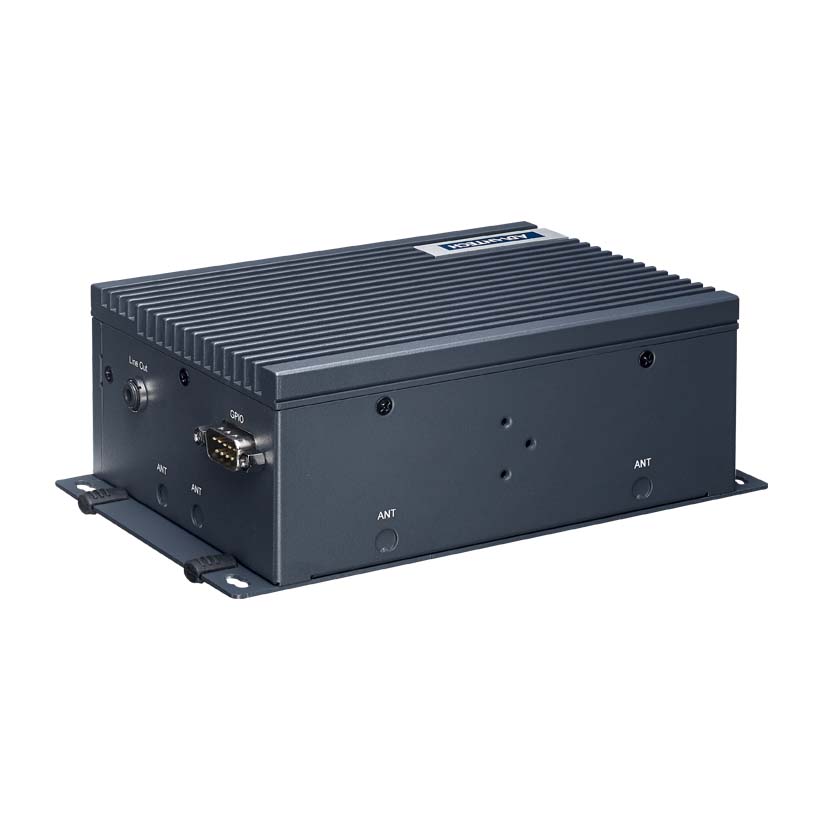

Rear I/O

Inside the Box

UNO-238
Configure System
  • Configure Your System
Base System : Compact IoT Edge Computer with Intel® Core™ i7-8665UE Processor
Compact IoT Edge Computer with Intel® Core™ i7-8665UE Processor
[ +€0.00 ]
Compact IoT Edge Computer with Intel® Core™ i5-8365UE Processor
[ -€-220.17 ]
Compact IoT Edge Computer with Intel® Core™ i3-8145UE Processor
[ -€-601.45 ]
Power Cord (E) : Power Cord Europe 3P
Power Cord Europe 3P
[ +€0.00 ]
Power Cord UK 3P
[ +€6.10 ]
None
[ -€-6.40 ]
Memory : 260pin SODIMM DDR4 2666 4GB 1.2v 512x8 (0-85)
260pin SODIMM DDR4 2666 4GB 1.2v 512x8 (0-85)
[ +€0.00 ]
8GB (1 x 8GB) DDR4-2666MHz 1.2V 260PIN 1Gx8 Memory (0-85)
[ +€8.08 ]
16GB (1 x 16GB) 260pin SODIMM DDR4 2666 16GB 1.2v 1Gx8 (0-85)
[ +€27.15 ]
Storage Device : EMMC 32GB Storage Built-In
EMMC 32GB Storage Built-In
[ +€0.00 ]
M.2 SSD : None
None
[ +€0.00 ]
SQF SATA M.2 2280 640 32G MLC (0~70°C)
[ +€43.50 ]
SQF SATA M.2 2280 640 64G MLC (0~70°C)
[ +€68.02 ]
SQF SATA M.2 2280 640 128G MLC (0~70°C)
[ +€117.06 ]
SQF SATA M.2 2280 640 256G MLC (0~70°C)
[ +€215.12 ]
SQF SATA M.2 2280 640 512G MLC (0~70°C)
[ +€411.15 ]
SQF SATA M.2 2280 640 32G MLC (-40~85°C)
[ +€52.20 ]
SQF SATA M.2 2280 640 64G MLC (-40~85°C)
[ +€81.59 ]
SQF SATA M.2 2280 640 128G MLC (-40~85°C)
[ +€140.39 ]
SQF SATA M.2 2280 640 256G MLC (-40~85°C)
[ +€258.10 ]
SQF SATA M.2 2280 640 512G MLC (-40~85°C)
[ +€493.26 ]
Mounting : None
None
[ +€0.00 ]
UNO-238 DIN Rail Mounting Kit
[ +€5.92 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (HighEnd, For i7/Xeon CPU)
[ +€156.92 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +€88.18 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€22.54 ]
Extended Warranty for 6 Months
[ +€45.08 ]
Extended Warranty for 12 Months
[ +€108.18 ]
Extended Warranty for 24 Months
[ +€180.30 ]
Extended Warranty for 36 Months
[ +€270.45 ]

Comment

Specifications
Category
Attribute
Value
System
System
Compact IoT Edge Computer with 8th Generation Intel® Core™ i Processor
Processor
Processor
8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/i7-8665UE quad-core processor
Memory
Memory
Up to 32GB
I/O Ports
I/O Ports
2 x RS-232/422/485
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
4 x USB 3.2
1 x HDMI 1.4 (up to 4096 x 2160 @30/24 Hz)
1 x DP 1.2 (up to 4096 x 2306 @60 Hz)
1 x Lockable DC jack
1 x Line out
1 x GPIO (8 bit) (CAN bus 2.0 is available upon request)
LAN Interface
LAN Interface
2 x 10/100/1000 Mbps
Storage
Storage
EMMC 32GB Built-In
M.2
M.2
1 x M.2 B Key 2280 (SATA or NVMe PCIex2), shared with expansion
1 x M.2 B Key 3042 (For LTE module , support USB 2.0 only), shared with storage
1 x M.2 E Key 2230 (For WiFi module, support PCIe and USB 2.0)
Power Input Voltage
Power Input Voltage
12Vdc
Power Consumption
Power Consumption
31W (Typical), 54W (Max)
Operating System
Operating System
Windows 10
Mounting Options
Mounting Options
Wall, Stand, DIN
Weight
Weight
1.8 kg (3.9 lb)
Dimensions (W x H x D)
Dimensions (W x H x D)
150 x 60 x 107 mm (5.91 x 2.36 x 4.22)
Operating Temperature
Operating Temperature
-20~60°C (-4~140°F)
Certification
Certification
BSMI, CCC, CE, FCC, UL
