UNO-430-1 All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom® E3950

UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A
  • UNO-430-E1A

  1. Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory
  2. 2 x Gigabit Ethernet, 2 x RS-422/485 with isolation protection, 1 x RS-232 console port
  3. All-around IP69K/68 rating for protection from water and dust ingress
  4. Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F
  5. Built-in TPM 2.0 for hardware-based security
  6. 1 x M.2 (E-key) and 1 x M.2 (B-key) expansion sockets for integrating CE-RED-compliant Wi-Fi, LTE, and GPS wireless communication modules

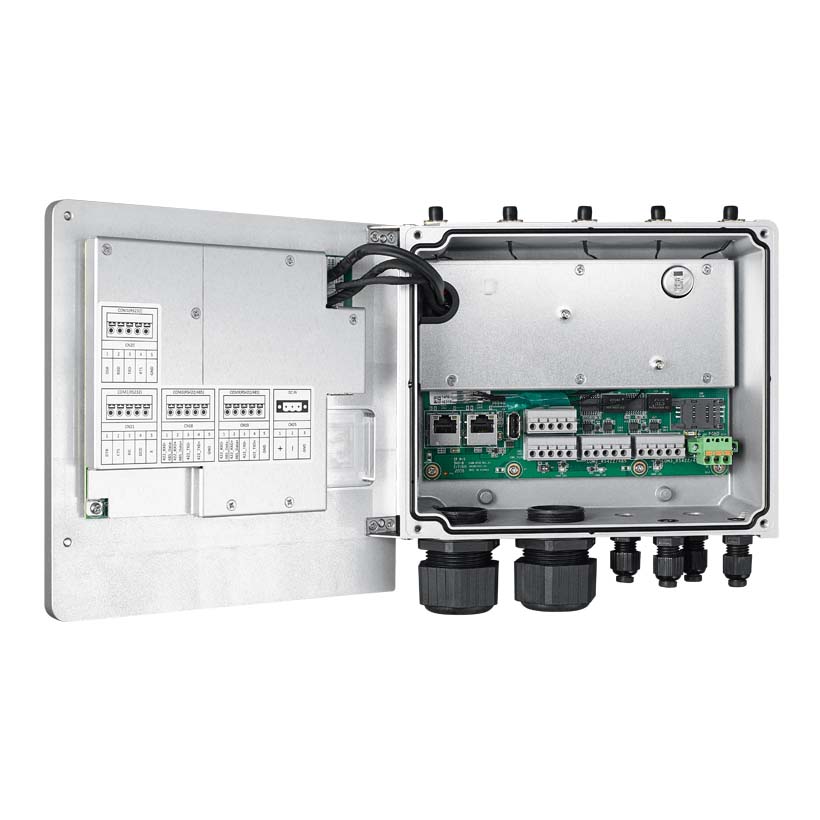

  7. Enclosure with front door and cable gland design ensures easy installation and maintenance
Certifications
CE CE CE CE CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

€1,596.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Base System : All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom E3950 Quad Core Processor
All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom E3950 Quad Core Processor
[ +€0.00 ]
Power Supply : None
None
[ +€0.00 ]
IP65 Rated 100W 90 ~ 305 VAC Power Supply
[ +€81.35 ]
M.2 SSD : SQF SATA M.2 2242 640 32G MLC (-40~85°C)
SQF SATA M.2 2242 640 32G MLC (-40~85°C)
[ +€0.00 ]
SQF SATA M.2 2242 640 64G MLC (-40~85°C)
[ +€31.25 ]
SQF SATA M.2 2242 640 128G MLC (-40~85°C)
[ +€90.16 ]
SQF SATA M.2 2242 640 256G MLC (-40~85°C)
[ +€207.76 ]
SQF SATA M.2 2242 640 256G 3D TLC BiCS3 (-40~85°C)
[ +€62.61 ]
SQF SATA M.2 2242 640 512G 3D TLC BiCS3 (-40~85°C)
[ +€171.36 ]
Wireless LAN Connectivity : None
None
[ +€0.00 ]
Cellular Card : None
None
[ +€0.00 ]
Quectel EM06 LTE module 4G (Cat.6) w/Antennas
[ +€167.65 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Entry)
[ +€49.42 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€19.95 ]
Extended Warranty for 6 Months
[ +€39.90 ]
Extended Warranty for 12 Months
[ +€95.76 ]
Extended Warranty for 24 Months
[ +€159.60 ]
Extended Warranty for 36 Months
[ +€239.40 ]

Comment

Specifications
Category
Attribute
Value
System
System
Waterproof Outdoor Data Gateway with All-Around IP69K/IP68 Rating
Processor
Processor
Intel Atom E3950 Processor
Memory
Memory
8GB DDR3L Memory Built-In
I/O Ports
I/O Ports
2 x RS-422/485, 50 ~115.2 kbps (terminal block with 2500VDC isolation protection) 1 x RS-232, 50 ~115.2 kbps (terminal block, console port)
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u, 1000BASE-T Fast Ethernet
1 x 3-pin terminal block
2 x M32 cable gland for Ethernet cable (cable size OD 5 ~ 6.6 mm/0.19 ~ 0.25 in)
4 x M12 cable gland for serial cable and power cable(cable size OD 4.5 ~ 6.5 mm/0.17 ~ 0.25 in)
LAN Interface
LAN Interface
10/100/1000 Mbps
Storage
Storage
1 x M.2 SSD (2242)
Expansion
Expansion
1 x M.2 (E-key)(PCIe/USB2.0 signal) socket for 2230 Wi-Fi/Bluetooth module expansion
1 x M.2 (B-key)(USB2.0/USB3.0 signal) socket for 3042/3052 LTE/5G module expansion
1 x socket (USB signal) for MultiTech Dragonfly™ card
Power Input Voltage
Power Input Voltage
10~36VDC
Power Consumption
Power Consumption
21W (typical), 27W (max.)
Operating System
Operating System
Windows 10 IoT
Mounting Options
Mounting Options
Wallmount
Weight
Weight
3 kg/6.61 lb
Dimensions (W x H x D)
Dimensions (W x H x D)
200 x 68 x 200 mm/7.87 x 2.67 x 7.87
Operating Temperature
Operating Temperature
-40 ~ 70 °C/-40 ~ 158 °F with wide temperature peripherals
Operating temperature with M.2 SSDs should be maintained under 60 °C/140 °F
Certificate
Certificate
CE, FCC, IEC/ UL 62368-1, UL 60950-22 (Part 22: Equipment to be installed outdoors)
