UNO-247-J121W10 UNO-247, 4G, 64G SSD, WIN10 LTSC

  1. Intel® Celeron® J3455 processor
  2. Robust design with high stability
  3. 2 x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA
  4. Compact size with fanless design
  5. Rubber stopper design for stand mount and optional kit for DIN-rail mount
  6. Optional 3G/GPS/GPRS/Wi-Fi communication
  7. Threaded DC Jack design for more steady power supply
  8. Optimized mechanical design for easier RAM swapping
Certifications
CE
Please visit via PC to place order/quote
Contact us for stock info

€776.83

Features
    1. Accelerate
      Your Digital Transformation
      with UNO-247 IoT Edge Gateway!

  • UNO-247 is an entry-level fanless IoT edge gateway aimed at information technology (IT) applications. Equipped with an Intel® Celeron® J3455 processor, diverse I/O, and VGA and HDMI display interfaces, UNO-247 is designed to deliver high-performance computing at a competitive price.

  • Feature Highlights

    1. Comprehensive System I/O
      UNO-247 features diverse I/O to facilitate a wide range of applications.
      • I/O: 4 x RS-232, 2 x RS-485, 2 x LAN, 2 x USB 3.0, 2 x USB 2.0
      • Display: 1 x VGA, 1 x HDMI
      • Expansion: 1 x mPCIe slot, 1 x M.2 (2232, E Key)
      • Storage: 1 x mSATA, 1 x 2.5”SATA SSD/HDD
    2. Increased Accessibility and Reliability
      • To reduce system downtime and ensure convenient maintenance, the optimized design allows the installation of memory, storage, and extension modules without needing to disassemble the entire chassis.
      • To prevent unexpected power disconnections or interruptions, the power adaptor is equipped with a threaded DC jack for locking the connector in place, ensuring a stable and reliable power supply.

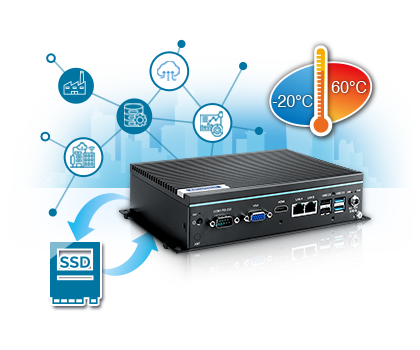

    3. Ruggedized for Industrial Applications
      • Cable-free, fanless design provides internal space savings and reduces the accumulation of dust and foreign contaminants for operation in industrial environments
      • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) with optional extended-temperature memory and SSD
  • Product Specifications

    1. Dimensions
    2. Unit: mm
    1. Mount Options
    2. ATo ensure flexible installation in a wide range of operating environments, UNO-247 supports wall, stand, and DIN-rail mounting (with optional DIN-rail mount kit).
    1. Product Contents
Specifications
Category
Attribute
Value
Hardware
BIOS
AMI EFI 64 Mbit Flash BIOS
Hardware
Certification
CB, UL, CE, FCC, CCC, BSMI
Hardware
CPU
Intel® Celeron® J3455 1.5GHz
Hardware
Ethernet
Realtek® RTL8111G-CG GbE
Hardware
Graphics Engine
Intel® HD Graphics
Hardware
LED Indicators
PWR
Hardware
Memory
1 x DDR3L SO-DIMM Slot
Hardware
OS Support
Microsoft® Windows 10 2019 LTSC, Linux
Hardware
Power Consumption
17 W @ 12 VDC
Hardware
Power Input
12 VDC
Hardware
Storage
1 x mSATA slot, 1 x 2.5" 64 GB SSD
Hardware
Watchdog Timer
1~255 s
I/O Interface
Audio
Line-Out
I/O Interface
Displays
1 x HDMI, 1 x VGA
I/O Interface
Expansion
1 x Full-size mPCIe Slot, 1 x M.2 E key 2230, 1 x Micro SIM Card Slot
I/O Interface
LAN Ports
2 x 10/100/1000 Mbps
I/O Interface
Power Connector
1 x DC Jack
I/O Interface
Serial Ports
4 x RS-232, 2 x RS-485
I/O Interface
USB Ports
2 x USB 3.0, 2 x USB 2.0
Environment
Ingress Protection
IP40
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Environment
Relative Humidity
10~95% RH (non-condensing)
Environment
Shock Protection
50 G, half sine
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Environment
Vibration Protection
3 Grms, random
Mechanical
Dimension (W x H x D)
200 x 140 x 50 mm
Mechanical
Enclosure
Aluminum housing
Mechanical
Mounting
Stand, Din-rail
Mechanical
Weight (Net)
1.0 kg (2.2 lb)
