Home Digital Signage Players Digital Signage Players

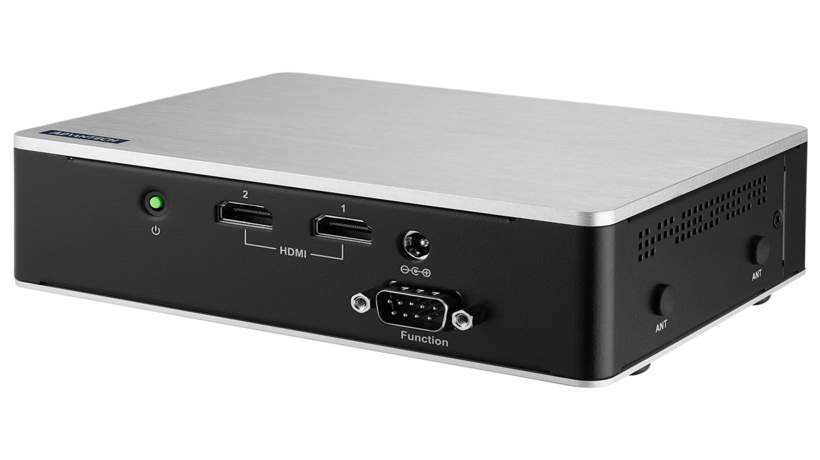

DS-450GB-U1A1E DS-450, J6412, Barebones, 8GB LPDDR4,

DS-450, J6412, Barebones, 8GB LPDDR4,

  1. Stylish Aluminum Die-cast Design with Intel Atom® J6412 processor
  2. Optimized GFX performace by on board 4GB/8GB DDR4 (3777Mhz)
  3. Support 2 x HDMI up to 4K(3840 x 2160), 6 x USB, 2 x Gb LAN
  4. 2 x COM, Power on/off, Phoenix connector for device connection via DB9 ports.
  5. Small system with PWM fan control for silent and smooth fan speed
  6. Support Windows 11 IoT Enterprise LTSC
Certifications
CE CE CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended Specifications
Please visit via PC to place order/quote
Limited availability

€488.17

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Features

Interactive and Intelligent Signage

Specifications
Category
Attribute
Value
Display
Resolution
3840 x 2160
I/O
HDMI
2
I/O
LAN
2 (RJ-45)
I/O
LED Indicators
1 x Power, 1 x HDD Access
I/O
PSW
1 x Power on/off button
I/O
Serial
1 x COM (RS-232)
I/O
USB
2 x USB 3.0, 4 x USB 2.0
Memory
Max. Capacity
8GB
Memory
Socket
Base on motherboard
Memory
Technology
LPDDR4 3733Mbit
Processor
BIOS
AMI UEFI 256 Mbit
Processor
Chipset
Integrated in SOC
Processor
CPU
Intel Celeron J6412
Storage
M.2
M.2 2242 M Key
Environment
Humidity
Operating: 40° C @ 95% relative humidity, non-condensing
Power
Input Voltage
19 V DC-in (ATX/AT mode)
Environment
Temperature (Operating)
0~45°C, with 0.7 m/s air flow
Software Development Kit
Linux
by Project support
Software Development Kit
Operating System
Windows 10 (64bit)
Certification
EMC
CE/FCC Class B, CCC, BSMI, UKCA
Certification
Safety Certifications
CB, UL, CCC, BSMI
Physical
Weight
0.7 kg (1.54 lb) (with heatsink)
Thermal Solution
Thermal Solution
FAN
