ARK-1221L-S5A1 NEW Intel Atom x6413E QC 1.5G HDMI+DP+2*GbE+2*COM

  1. Intel Atom® x6413E Quad Core SoC turbo burst up to 3.0 GHz

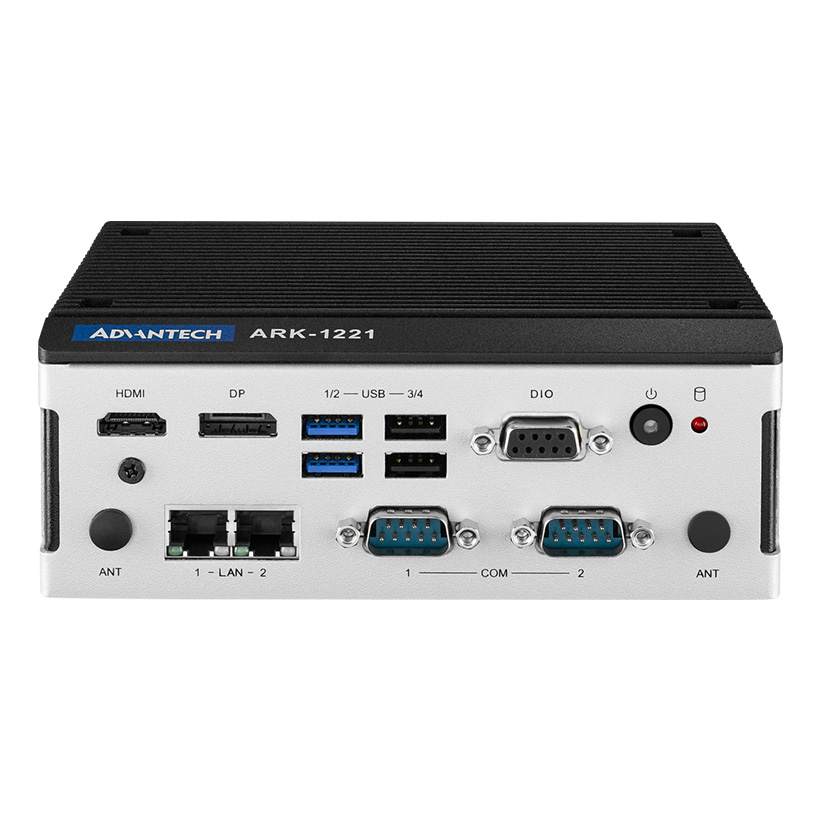

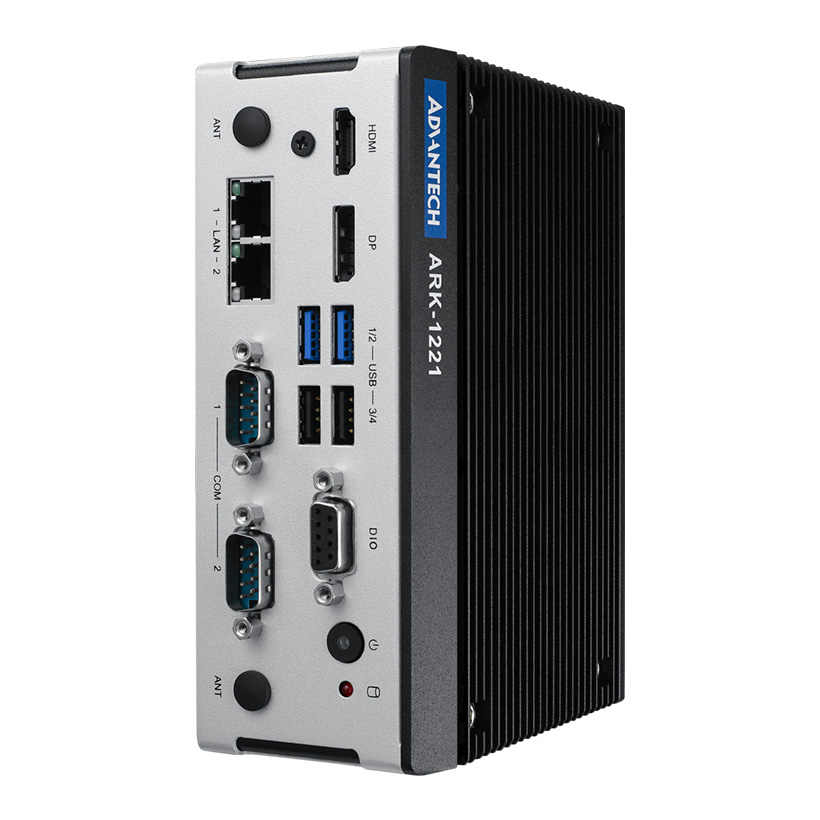

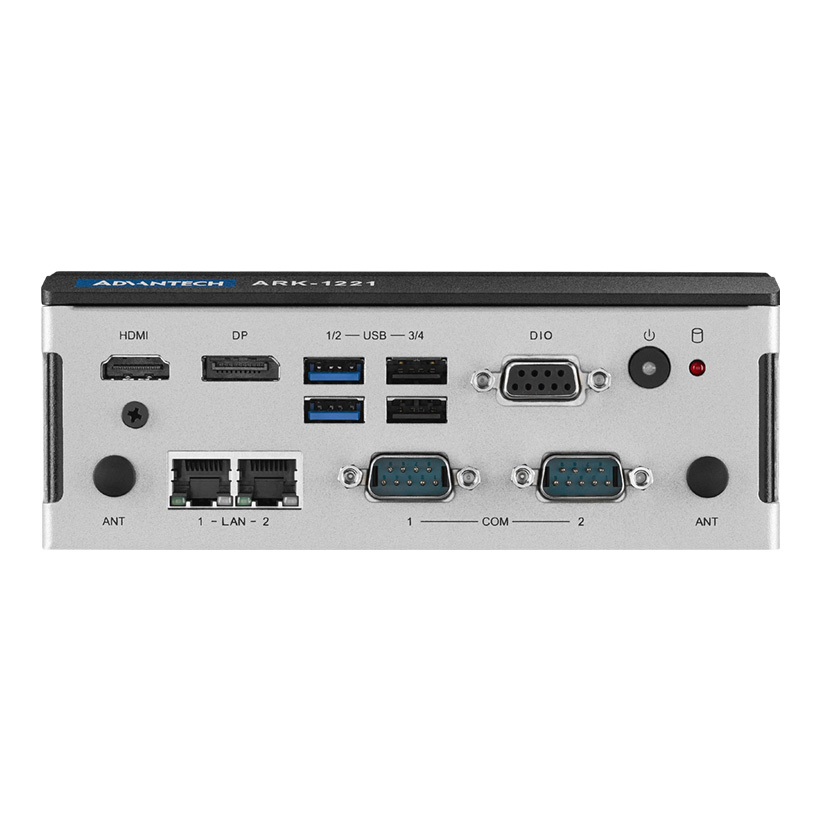

  2. DIN-Rail system with essential I/O ports on front-side bezel
  3. 2 x Intel GbE and 2 x RS-232/422/485
  4. Dual independent displays with one 4K HDMI and one 4K DP
  5. 2 x USB 3.2 and 2 x USB 2.0, 1 x internal USB2.0 for security dongle
  6. 1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key, 1 x full-size mPCIe
  7. mSATA and 1 x 2.5" SATA storage device
  8. 12V ~ 28V wide range power input, -40 ~ 60 °C extended operating temperature
  9. No RED Certification
Certifications
UKCA icon_UL FCC CE CCC CB_60X60 BSMI 2年保固(90X60)
Please visit via PC to place order/quote
Contact us for stock info
Make an inquiry
Specifications
Category
Attribute
Value
Memory
Max. Capacity
32 GB
Memory
Socket
2 x 260-pin SO-DIMM
Memory
Technology
DDR4 3200 MHz
Processor
BIOS
AMI EFI 256 Mbit
Processor
Core Number
4
Processor
CPU
Intel AtomTM x6413E
Processor
Frequency
1.5GHz
Storage
2.5" HDD/SSD
1 x 2.5" SATAIII Drive bay (compatible with 15mm height)
Storage
mSATA
1 x Full-size (support either mSATA or miniPCIe)
Operating System
Ubuntu
V
Environment
Shock Protection
With SSD/mSATA: 30G
Other
Watchdog Timer
255 levels timer interval, setup by software
Ethernet
LAN1
10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
Ethernet
LAN2
10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
Graphics
DP
1 x DP 1.4a: 4096x2160@60Hz
Graphics
Dual Display
HDMI + DP
Graphics
HDMI
HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz
Audio
Interface
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface
GPIO
8 bit GPIO
I/O Interface
Optional I/O
1 x CANBus 2.0 (DB9 connector)
I/O Interface
Serial Port
2 x RS-232/422/485 ports (support auto flow control, BIOS selectable)
I/O Interface
USB
2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle
Environment
Relative Humidity
95% @ 40° C (non-condensing)
Environment
Temperature (Operating)
-40~60°C
Environment
Temperature (Storage)
- 40 ~ 85° C (-40 ~185° F)
Environment
Vibration during Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Power Requirement
Input Voltage
12 ~ 28 VDC
Power Requirement
Power Adapter
AC to DC 24V/2.5A 60W (Optional)
Power Requirement
Power Type
AT/ATX
Expansion
M.2
1 x M2. 2230 E key and 1 x M.2 2280 B key with nano SIM holder
Expansion
Mini PCI Express
1 x Full-size
Power Consumption
Maximum
18.96W (Full loading)
Power Consumption
Typical
9.6W (OS idle mode)
Mechanical
Construction
Aluminum housing
Mechanical
Dimensions
60 x 158 x 114 mm (2.34” x 6.22” x 4.49”)
Mechanical
Mounting
DIN-rail/Wall Mount
Mechanical
Weight
1.5 kg (3.3lb)
Others
TPM
TPM 2.0 (by optional AMO-I029)
Certifications
EMC
CE, FCC Class B, CCC, BSMI
Certifications
Safety
CB, UL, CCC, BSMI
Software Support
Linux
Support by project
Software Support
Microsoft Windows
Windows 10 Enterprice
x
