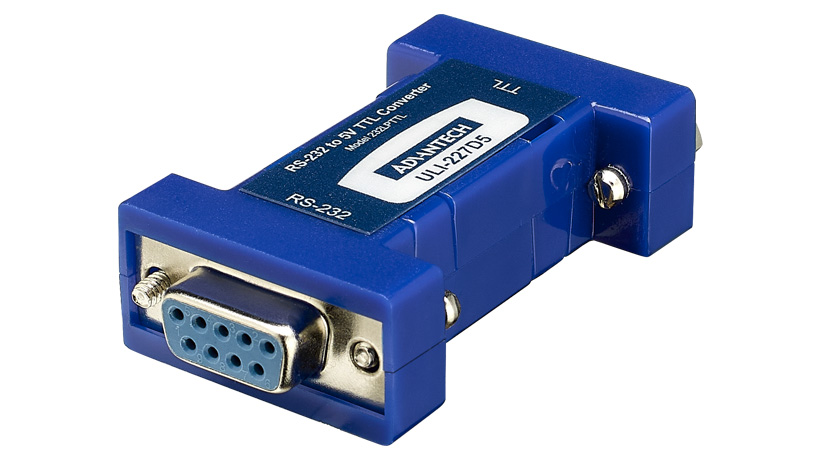

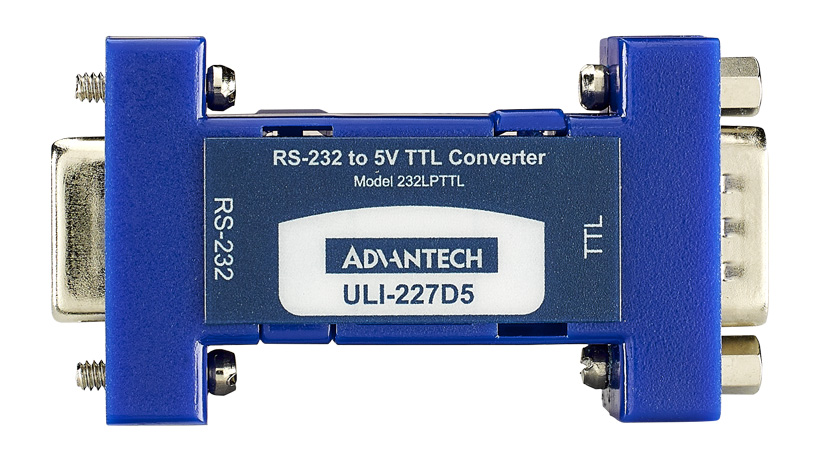

BB-232LPTTL ETHERNET DEVICE, PORT POWERED 232 TO TTL CONV

  1. Convert 2 channels in each direction from 5V TTL (“Transistor Transistor Logic") to RS-232
  2. Baud rates up to 115.2 kbps
  3. Powered from RS-232 data/handshake lines - no power supply required
Certifications
CE CE CE CE
Please visit via PC to place order/quote
Limited availability

€60.55

Specifications
Category
Attribute
Value
General
Technology
Serial
Power
Power Input (Serial)
Port-Powered from RS-232
Serial Communication
Maximum Serial Transmission Speed
115.2 Kbps
Serial Communication
Serial Port Connector Type
1 x DB9 Female, 1 x DB9 Male
Serial Communication
Serial Port Number
1
Serial Communication
TTL & Current Loop Converter
RS-232 to TTL 5 Vdc
Environment
Operating Temperature
0 ~ 70°C (32 ~ 158°F)
Accessory General
Mounting
Inline
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
BB-9PAMF6 CABLE, EXT CBL DB-9 M/F @6FT €13.07
Part No. Qty
BB-9PAMF6
CABLE, EXT CBL DB-9 M/F @6FT
Unit Price: €13.07
