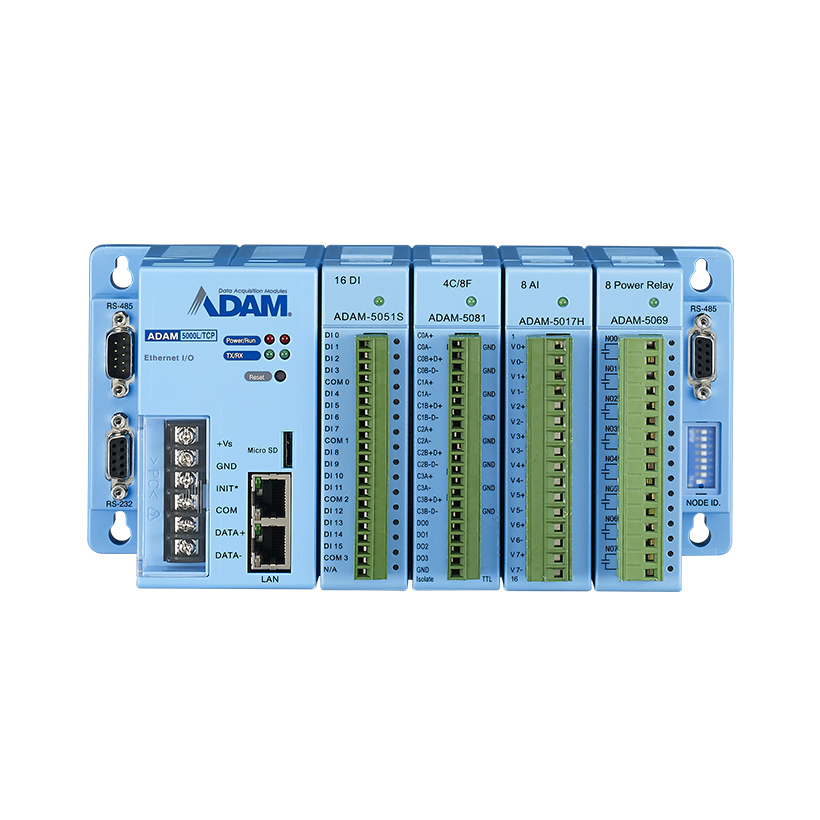

ADAM-5000L/TCP-BE CIRCUIT MODULE, 4-Slot Ethernet-based Distributed DA&C System

  1. ARM 32-bit RISC CPU
  2. 10/100Base-T auto-negotiation high-speed communication port
  3. Supports Modbus/TCP for easy integration
  4. Supports UDP event handling function
  5. Up to 100 m communication distance w/o repeater
  6. Allows remote configuration via Ethernet
  7. Allows concurrent access for 8 host PCs
  8. 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control- Data stream setting - Current status monitoring and alarm trigger
  9. Provides C and .NET class library to develop applications
Certifications
CE
Please visit via PC to place order/quote
Contact us for stock info

€453.18

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Connectors
1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (internal use), 1 x screw terminal for power input, 2 x RJ-45 for LAN
General
Humidity (Operating)
5~95% RH (non-condensing)
General
Humidity (Storage)
5~95% RH (non-condensing)
Hardware
Certification
CE, FCC class A
Hardware
CPU
Cortex M4
Hardware
Expansion
4 x I/O Slot
Hardware
I/O
1 x RS-232, 2x RS-485
Hardware
LAN
2 x 10/100 Mbps
Hardware
LED Indicators
Power, RUN, Communications
Hardware
Power Input
10~30 VDC
Environment
Operating Temperature
-10~70 °C (14~158 °F)
Environment
Storage Temperature
-25~85 °C (-13~185 °F)
Mechanical
Dimension (W x H x D)
231 x 110 x 75 mm
Mechanical
Enclosure
PC + ABS
Mechanical
Mounting
Wall, DIN-rail
