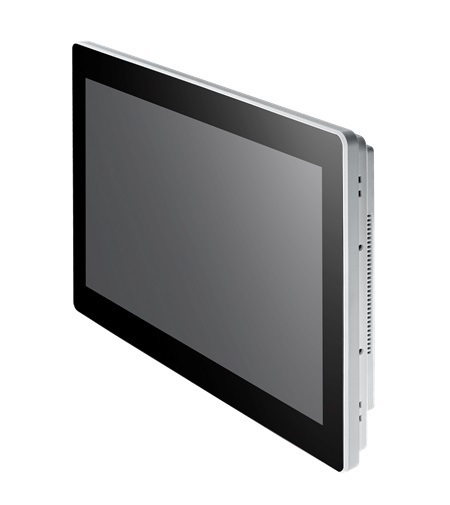

Home Panel PCs All-in-one Touch Computers Entry level (UTC)

UTC-315GP-ATB0E 15.6" Pcap,N4200,4G RAM,Black

15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black
  • 15.6" Pcap,N4200,4G RAM,Black

  1. Low power and fanless system design
  2. Built in Intel Pentium® N4200E
  3. 15.6" monitor with 16:9 widescreen display
  4. IP65-rated front panel for water and dust resistance
  5. Supports both landscape and portrait screen orientations
  6. VESA 75 mm standard mounting holes for varied mounting demands
  7. Detachable frame design for panel mount applications
Resources
Resources Download
DatasheetDownloadExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info
2 years extended warranty
Request Quantity Discount
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Processor System
CPU
Intel® Pentium® N4200 1.10GHz
Processor System
RAM
4GB DDR3L
Processor System
Storage
1 x 2.5 internal SATA HDD bay
Display
Brightness
220 cd/m²
Display
Max. Resolution
FHD (1920 x 1080)
Display
Size
15.6" TFT LCD
Touch Screen
Type
Projected Capacitive
Color
Color
Black
I/O Interface
Audio
1 x Line-out, 1 x Mic-in
I/O Interface
Cash Drawer
1 x RJ11
I/O Interface
Ethernet
2 x Gigabit Ethernet (RJ-45)
I/O Interface
Extendable Slot
M.2 2230/mSATA
I/O Interface
Output
1 x HDMI
I/O Interface
Serial Port
1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
I/O Interface
USB Port
2 x USB2.0, 4 x USB3.0
Power
Input Rating
12 V/7 A (84W ITE Adapter) *Optional 12-30V
OS Support
OS Support
Win 10 IoT Enterprise 64bit/ Linux/ Android 6.0
Environment
Operating Humidity
10 ~ 95% @ 40°C non-condensing
Environment
Operating Temperature
0~40° C
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
UTC-300P-C21E CIRCUIT MODULE, 5M Camera Module, Black, for UTC-318 €133.24
UTC-300P-B60E 2D Barcode Reader, White, for UTC-315/318/320 series €350.62
UTC-300P-R21E CIRCUIT MODULE, RFID Reader, Black, for UTC-318 €131.57
UTC-H01-STANDE UTC-315/318/515/520/532 H Shape Floor Stand 123.6 cm €294.00
UTC-300P-M21E CIRCUIT MODULE, Magnet Strip Reader, Black, for UTC-318 €122.70
UTC-300P-B61E 2D Barcode Reader, Black, for UTC-315/318/320 series €350.62
UTC-T01-STANDE UTC-315/318/515/520 Tri Shape Floor Stand 120 cm €383.00
UTC-300P-S20E CIRCUIT MODULE, Smart Card Reader, White, for UTC-318 €63.07
ARES-12240-AR01100 Wall Mount,support 2~10kg,75/100mm €48.00
ARES-12250-L101000 WallMount,max.support 25kg,75/100mm €34.00
Part No. Qty
UTC-300P-C21E
CIRCUIT MODULE, 5M Camera Module, Black, for UTC-318
Unit Price: €133.24
UTC-300P-B60E
2D Barcode Reader, White, for UTC-315/318/320 series
Unit Price: €350.62
UTC-300P-R21E
CIRCUIT MODULE, RFID Reader, Black, for UTC-318
Unit Price: €131.57
UTC-H01-STANDE
UTC-315/318/515/520/532 H Shape Floor Stand 123.6 cm
Unit Price: €294.00
UTC-300P-M21E
CIRCUIT MODULE, Magnet Strip Reader, Black, for UTC-318
Unit Price: €122.70
UTC-300P-B61E
2D Barcode Reader, Black, for UTC-315/318/320 series
Unit Price: €350.62
UTC-T01-STANDE
UTC-315/318/515/520 Tri Shape Floor Stand 120 cm
Unit Price: €383.00
UTC-300P-S20E
CIRCUIT MODULE, Smart Card Reader, White, for UTC-318
Unit Price: €63.07
ARES-12240-AR01100
Wall Mount,support 2~10kg,75/100mm
Unit Price: €48.00
ARES-12250-L101000
WallMount,max.support 25kg,75/100mm
Unit Price: €34.00
