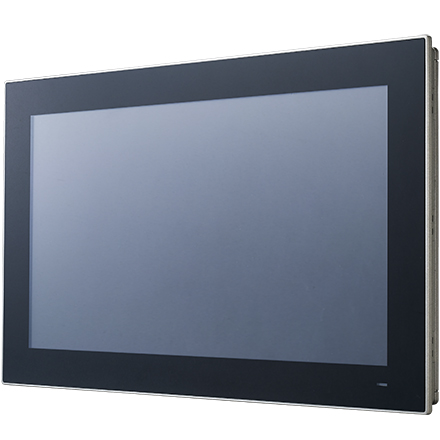

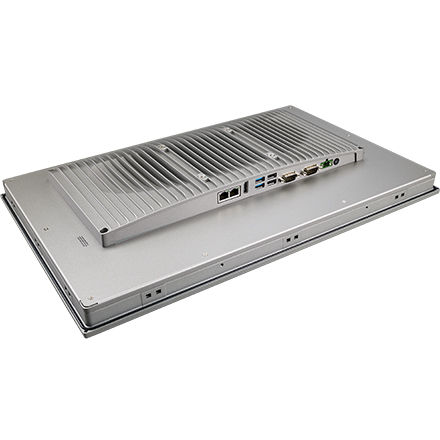

PPC-3181SW-9S50 18.5" Fanless Panel PC with Intel Core i5-6300U Processor

  1. Industrial 18.5" LED panel with 50k lifetime backlight
  2. Projected capacitive multi touch screen
  3. High performance Intel 6th Gen Core i CPU with Fanless design
  4. System memory up to 16GB DDR4 SDRAM
  5. Compact Fanless Design with solid AI Alloy enclosure; True-flat with IP65 certified front panel protection
  6. Support dual display; Full-size Mini PCIe; USB 3.0 and VESA 100
Certifications
CE CE CE CE CE CE CE
Please visit via PC to place order/quote

€2,333.00

2 years extended warranty
Configure System
  • Configure Your System
Base System : Fanless 18.5" Panel PC with Intel Core i5-6300U Processor
Fanless 18.5" Panel PC with Intel Core i5-6300U Processor
[ +0.00 ]
Power Adapter (E) : 19V DC power Adapter Module w/European Power cord
19V DC power Adapter Module w/European Power cord
[ +0.00 ]
19V DC power Adapter Module w/UK Power cord
[ +6.10 ]
NONE
[ --21.97 ]
Memory : 8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +0.00 ]
16GB (1x16GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +20.95 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
None
[ --58.51 ]
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +0.00 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +40.89 ]
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ --11.49 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +12.24 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +65.76 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +166.44 ]
Mounting :
None [ +€0.00 ]
VESA Standard ARM for PPC Series (w/o adapter) [ +€143.09 ]
Stand for PPC Series [ +€132.05 ]
Wallmount Kit for PPC-174/155/154T Series [ +€57.68 ]
Operating System (E) : None
None
[ +0.00 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +147.82 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +147.82 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +147.82 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +147.82 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +147.82 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +77.93 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +0.00 ]
Extended Warranty for 3 Months
[ +29.17 ]
Extended Warranty for 6 Months
[ +58.33 ]
Extended Warranty for 12 Months
[ +139.98 ]
Extended Warranty for 24 Months
[ +233.30 ]
Extended Warranty for 36 Months
[ +349.95 ]

Comment

Specifications
Category
Attribute
Value
OS (Optional)
OS (Optional)
Microsoft® Windows 7/8/10, WES7, AdvLinux
System
System
18.5" Fanless Panel PC with Intel Core i5-6300U Processor
Processor
Processor
Intel 6th Gen Core i CPU
Storage
Storage
1 x 2.5" SATA Bay
1 x mSATA Bay
Memory (Max Capacity)
Memory (Max Capacity)
Up to 16GB
I/O Ports
I/O Ports
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
Display Size
Display Size
18.5"
Max. Resolution
Max. Resolution
1366 x 768
Display Type
Display Type
TFT LCD (LED Backlight)
Luminance
Luminance
450 nits
LAN Interface
LAN Interface
2 x 10/100/1000Base-T
Expansion Slots
Expansion Slots
1 x Full-size Mini-PCIe
Power Input Voltage
Power Input Voltage
12 ~ 24 VDC
Operating Temperature
Operating Temperature
0~50°C (32~122°F)
Power Consumption
Power Consumption
45W (typical)
Touchscreen
Touchscreen
10-Points P-Cap Touch Screen
Mounting Options
Mounting Options
Stand, Wall, VESA (Optional)
Dimensions (W x H x D)
Dimensions (W x H x D)
488 x 309 x 61.7mm (19.2 x 12.1 x 2.4 in)
