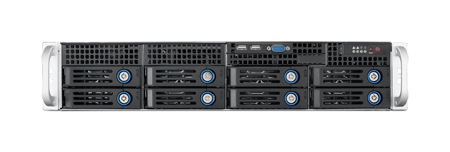

HPC-7282-00A1E Phase out 2U Rackmount Server Chassis for ATX/MicroATX Motherboard with 8 Hot-Swap HDD Trays & 7 PCIe x16 Expansion

  1. Supports EATX/ATX motherboard in short-depth (21.06 in.) 2U Rackmount chassis for dense computing applications
  2. Support for eight hot swap 3.5" SAS/SATA/SSD drive bays, preinstalled
  3. Support 1U single and redundant power supply
  4. Supports7 low-profile/half-length PCI-E x16 Expansion Slot
  5. Easy swap and anti-vibration FAN design
  6. Two front USB ports and one front COM port
  7. 80PLUS Power Supply extra. Options include 700 Watt Redundant PS. See Accessories below.
Certifications
CE CE
Resources
Resources Download
Please visit via PC to place order/quote
Contact us for stock info
Request Quantity Discount
Specifications
Category
Attribute
Value
Drive Bay
Hot Swap External
8 (3.5") Lockable
Drive Bay
Internal 3.5"
2
Drive Bay
Slim Optical Drive External
1
Miscellaneous
LED Indicators
Power, HDD, LAN1, LAN2, System Information
Front I/O Interface
COM Port
1
Front I/O Interface
USB 2.0
10 D-sub openings supporting up to 10 COMs with optinal COM cables
Cooling
System Fan
3 x 80 mm Fan Module with swappable bracket
Environment
Non-operating Humidity
10 ~ 95% @ 40° C, non-condensing
Environment
Non-Operating Vibration (5 ~ 500 Hz)
0.5 Grms
Environment
Non-Operational Temperature
-40 ~ 70° C (-40 ~ 158° F)
Environment
Operating Humidity
10 ~ 85% @ 40° C, non-condensing
Environment
Operating Temperature
0 ~ 40° C (32 ~ 104° F)
Environment
Vibration (5 ~ 500 Hz)
0.25 Grms
Physical Characteristics
Dimensions (W x H x D)
437 x 88.9 x 533.4 mm (17.2" x 3.5" x 21")
