Home Boards & Cards AMD motherboard plus

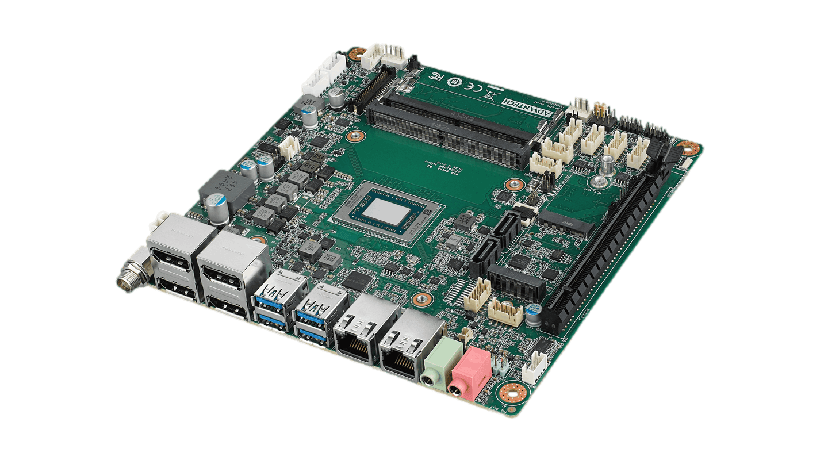

AIMB-2210R-01A1 MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP

MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP
  • MiniITX AMD Ryzen 8840U 28W 8C DDR5/PCIe/4DP

  1. High-performance Zen 4 up to 8 cores/16 threads with AMD XDNA NPU and 96 GB DDR5 SODIMM
  2. AMD Radeon RDNA3 Graphics, up to 12 CUs and Quad 4K display support
  3. Supports PCIe x8 Gen4, 3 x M.2 expansion slots, 6 x COM, 4 x USB 3.2 Gen2x1, 4 x USB 2.0
  4. Supports 12-24V wide voltage DC-In
  5. Support Windows 11 LTSC & Ubuntu 24.04 LTS; SUSI API and WISE-DeviceOn
Resources
Resources Download
DatasheetDownloadDriverManualExtended Specifications
Please visit via PC to place order/quote
2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Memory
Max. Capacity
96 GB (up to 48GB per DIMM)
Memory
Socket
2 x 262 pin DDR5 SO-DIMM
Memory
Technology
Dual Channel DDR5 5600 MT/s
Processor
Base Frequency
3.3 GHz
Processor
BIOS
AMI EFI 256Mb SPI
Processor
Core Number
8
Processor
L2 Cache
8MB
Processor
NPU
Yes
Processor
SOC
Ryzen 7 Pro 8840U
Processor
TDP
28W
Operating System
Linux
Ubuntu 24.04.2
Operating System
Microsoft Windows
Win 11
Environment
Non-Operational Temperature
-40 ~ 85° C (-40 ~ 185° F)
Environment
Operational Temperature
0 ~ 60° C (32 ~ 140° F)
Ethernet
Connector
2 x RJ-45
Ethernet
Controller
2 x RTL8111K (1GbE)
Ethernet
LAN
10/100/1000/2500 Mbps
Graphics
Controller
AMD Radeon RDNA3 Graphics
Graphics
DP
4 DP++
Graphics
eDP
By Option, up to 4096 x 2304 @ 60 Hz
Graphics
LVDS
1 (default, up to 1920 x 1200 @ 60 Hz)
Graphics
Multi Displays
4 independent display
Audio
Amplifier
Yes, 4 ohm 8W*2; 8 ohm 6W*2
Audio
CODEC
Realtek ALC888S, High Definition Audio (HD)
Watchdog Timer
Interval
Programmable 1 ~ 255 (second or minute)
Watchdog Timer
Output
System reset
Power Requirement
Power Type
ATX
Power Requirement
Voltage
12~24V DC in
Expansion
M.2
2 x M-key for SSD or Hailo, 1 x E-key for wireless module (WiFi/BT)
Expansion
PCIe
1
Physical
Dimension (mm)
170 x 170 mm
SATA
Channel
2
SATA
Max. Transfer Rate
6.0 Gb/s
Internal Connectors
GPIO
16-bit
Internal Connectors
LVDS/eDP
1 (eDP colay with LVDS)
Internal Connectors
SATA
2
Internal Connectors
Serial
6
Internal Connectors
USB
4 x USB 2.0

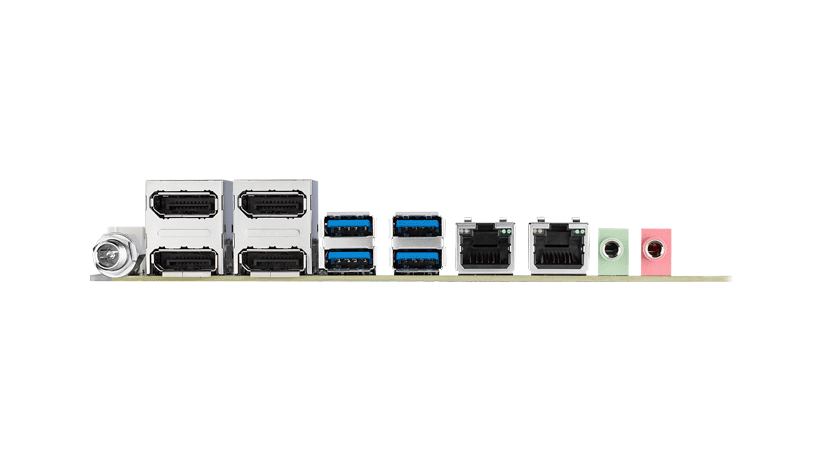

Rear I/O
Audio
1 (Line-Out, Mic-In)
Rear I/O
DP
4
Rear I/O
Ethernet
2
Rear I/O
USB
4 x USB 3.2 Gen 2x1 (10Gbps)
