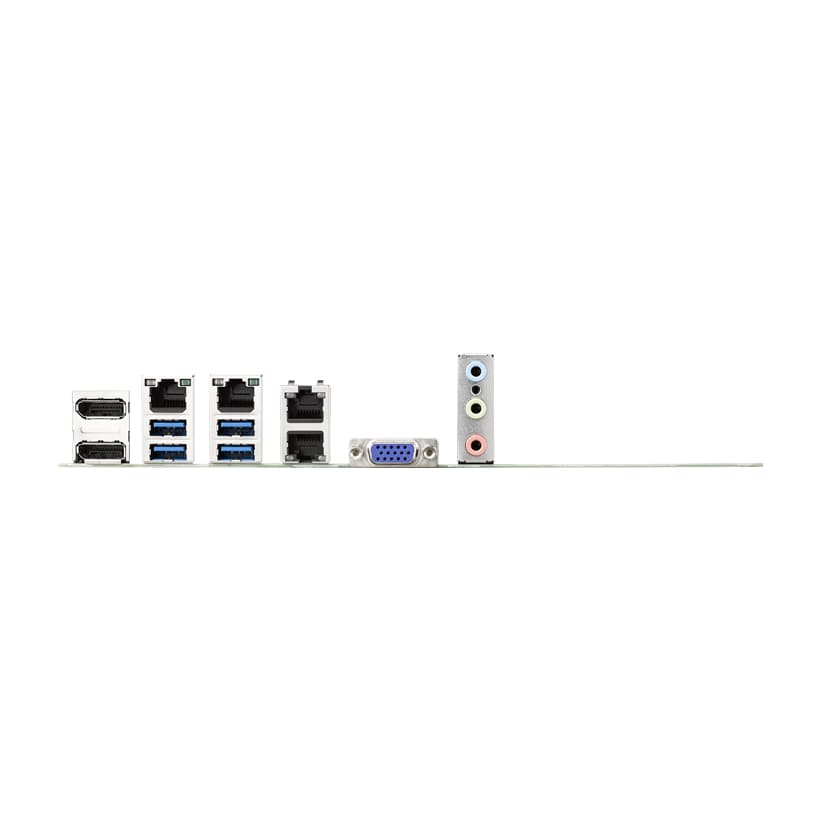

AIMB-587QG2-00A1E LGA1200 mATX 2DP/6SATA/6COM/12USB/2GbE/Q470E

  1. Supports Intel® 10th Gen Xeon/ Core™ i9/i7/i5/i3 processor with Q470E/ W480E/ H420E chipset
  2. Four U-DIMM sockets support up to 128GB DDR4 2666/2933 MHz SDRAM
  3. Supports 2 DP++, VGA(option), eDP display with Triple Display support
  4. Supports Intel AMT 12.0 and Intel vPro competent
  5. Supports PCIE Gen3, Dual 10 GbE LAN, Dual GbE LAN, M.2(M-key) and up to 8 x SATAIII
  6. Supports 4 USB3.2 Gen2, 6 USB3.1 Gen1 and 6 USB2.0
  7. Supports SUSI, WISE-DeviceOn and Edge AI Suite
Certifications
FCC CE Windows10_60X60 2年保固(90X60)
Please visit via PC to place order/quote
Contact us for stock info
Make an inquiry
Specifications
Category
Attribute
Value
Display
Controller
Intel HD Graphics
Display
DDI (HDMI/DVI/DisplayPort)
HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz
Display
Graphic Engine
DirectX 11.2, OpenGL 5.0, OpenCL 2.1
Display
Graphic Memory
1GB maximum shared memory with 2GB and above system memory installed
Display
LCD (TTL/LVDS/eDP)
eDP: support to 3840 x 2160 @ 60 Hz
Display
Multiple Display
Dual/ Triple
Form Factor
Form Factor
Micro ATX
I/O
COM Port
6 ( 5 x RS232, 1 x RS232/ 422/ 485)
I/O
GPIO
16-bit GPIO
I/O
Keypad
1
I/O
Smart Fan
5
I/O
TPM
Optional
I/O
USB2.0
6
I/O
USB3.0
6
Memory
ECC Support
Yes/NO
Memory
Max. Capacity
128GB
Memory
Socket
4 x 288-pin DIMM
Memory
Technology
Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM
Processor
BIOS
AMI EFI 128Mbit
Processor
Chipset
Intel Q470E
Processor
Core Number
10/8/6/4/2
Processor
CPU TDP
65W / 35W
Processor
Frequency
2.2GHz ~ 3.8GHz
Processor
L3 Cache
2 ~ 8MB
Storage
RAID
Software RAID 0, 1, 5, 10
Storage
SATA
6 x SATAIII (Max. Data Transfer Rate 600 MB/s)
Operating System
Linux
Yes
Operating System
Microsoft Windows
Yes
Operating System
SUSIAccess
Yes
Operating System
Ubuntu
V
Environment
Non-Operational Temperature
-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Environment
Operational Temperature
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Environment
Vibration Resistance
3.5 Grm (Non-Operation Mode)
Power
Battery
Lithium 3 V / 200 mAh
Power
Connector
ATX24P
Power
Power Consumption (Full Load)
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Power
Power Type
ATX
Ethernet
Connector
RJ45 x 2
Ethernet
Controller
LAN1: Intel i219LM / LAN2: Intel i211AT
Ethernet
Speed
10/ 100/ 1000 Mbps
Audio
Audio Interface
HD Audio
Audio
CODEC
Realtek ALC888S, High Definition Audio (HD)
Audio
Connector
2 (Line out, Mic-in)
Watchdog Timer
WatchDog Timer
Yes
Certification
EMC
CE, FCC
Expansion
PCI Express x 1
1
Expansion
PCI Express x 16
1
Expansion
PCI Express x 4
1
Expansion
PCI Express x 8
option
Expansion
SMBus
1
Physical
Dimension (mm)
244 x 244 mm
Physical
Weight
1.2 kg (2.64 lb), weight of total package
