System
System

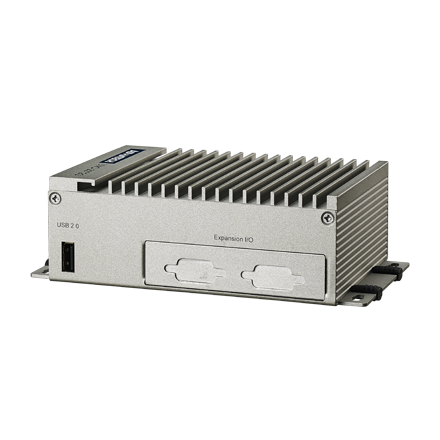

Intel Atom J1900 Based Palm-Size Automation Computer with 2 Mini-PCIe Slots
Processor
Processor
Intel® Baytrail J1900 2GHz CPU Built-In
Memory
Memory
2GB DDR3 Memory Built-In
Battery Backup RAM
Battery Backup RAM
512KB
VGA/ Mouse/ Keyboard
VGA/ Mouse/ Keyboard
Yes
I/O Ports
I/O Ports
3 x USB2.0
1 x RS-232
1 x VGA
1 x RJ-45
LAN Interface
LAN Interface
10/100/1000Base-T Fast Ethernet
PC Card Slots
PC Card Slots
N/A
PC/104 Expansion
PC/104 Expansion
N/A
PCI Expansion
PCI Expansion
N/A
Onboard I/O
Onboard I/O
N/A
Watch Dog Timer
Watch Dog Timer
Interrupt, system reset
Programmable 1 ~ 255 sec
2.5" HDD Expansion
2.5" HDD Expansion
None
Operating System
Operating System
Windows® 7
Programming Runtime Library
Programming Runtime Library
Yes
Software Development Kit
Software Development Kit
Yes
Mounting Options
Mounting Options
N/A
Anti-Vibration
Anti-Vibration
2G with CF, 1G with HDD (for X and Y Axis), 1G with HDD at IEC 68 section 2-64, sine, 5~500Hz, 1Oct./min, 1hr/axis.
Anti-Shock
Anti-Shock
20 G with HDD at IEC 68 section 2-27, half sine, 11ms
50 G with CF at IEC 68 section 2-27, half sine, 11ms
Power Input Voltage
Power Input Voltage
10~53 VDC
Operating Temperature
Operating Temperature
-20 ~ 60° C (-4 ~ 140° F)
Humidity
Humidity
95% @ 40C (non-condensing)
Power Consumption
Power Consumption
8W
Power Requirement
Power Requirement
9 ~ 36VDC, +24V @ 2 A power input
Dimensions (W x H x D)
Dimensions (W x H x D)
157 x 88 x 50 mm
( 6.2" x 3.5" x 2.0")
OS (Optional)
OS (Optional)
Windows® 7
