Home Compact & Tower Systems Embedded Box Computers Fanless Embedded Box Computers (ARKs)

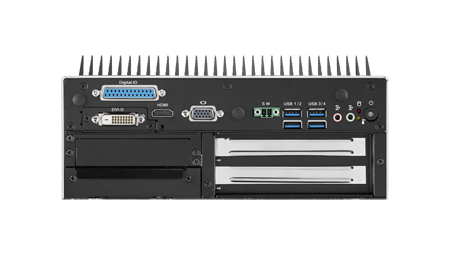

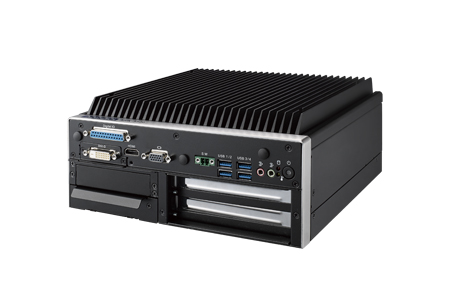

ARK-3520P-9S51 6th Gen Intel Core i-Series based Fanless Box PC with iDoor Expansions

ARK-3520P-9S51
  • ARK-3520P-9S51
  • ARK-3520P-9S51
  • ARK-3520P-U7A1E
  • ARK-3520P-U7A1E
  • ARK-3520P-U7A1E
  • ARK-3520P-U7A1E
  • ARK-3520P-U7A1E
  • ARK-3520P-U7A1E

  1. Intel® 6th Gen Intel® Core™ i3/i5/i7 processor
  2. DDR4 SO-DIMM memory up to 32 GB
  3. Flexible Expansion via PCI/PCIex4
  4. Advantech iDoor module compatible
  5. Triple independent display: VGA + HDMI + Optional (2nd HDMI/DP/DVI-D)
  6. 9-36V wide range Power input
  7. Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
Resources
  • ARK-3520P-9S51
  • Base System
Please visit via PC to place order/quote

€1,726.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Base System : 6th Gen Intel Core i5-6440EQ based Fanless Box PC with 2 x PCI/PCIe and iDoor Expansions
6th Gen Intel Core i5-6440EQ based Fanless Box PC with 2 x PCI/PCIe and iDoor Expansions
[ +€0.00 ]
6th Gen Intel Core i7-6820EQ based Fanless Box PC with 2 x PCI/PCIe and iDoor Expansions
[ +€312.00 ]
Power Adapter (E) : AC-to-DC Adapter AC100-240V, DC24V 230W with Power Cord [European Type]
AC-to-DC Adapter AC100-240V, DC24V 230W with Power Cord [European Type]
[ +€0.00 ]
AC-to-DC Adapter AC100-240V, DC24V 230W with Power Cord [UK Type]
[ +€4.78 ]
NONE
[ -€-51.83 ]
Memory : 8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +€0.00 ]
16GB (1x16GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +€18.69 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +€0.00 ]
2x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +€52.50 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +€24.26 ]
2x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +€101.02 ]
256GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€171.99 ]
512GB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€368.00 ]
1TB 2.5" SATA Solid State Disk (MLC 830, 0~70°C)
[ +€765.82 ]
iDoor Modules : None
None
[ +€0.00 ]
CANBus module, 2-Ch, USB Interface
[ +€123.00 ]
Parallel LPT module, 1-Ch, USB Interface
[ +€41.40 ]
High Speed Serial COM module, 1-Ch, USB Interface
[ +€76.00 ]
Giga LAN Ethernet module, 1-Ch, PCIe Interface
[ +€52.00 ]
Isolated CANBus, 2-Ch, DB9, PCIe Interface
[ +€209.00 ]
Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface
[ +€146.00 ]
Display Solution : None
None
[ +€0.00 ]
Displayport For ARK-2250L
[ +€39.80 ]
HDMI For ARK-2250L
[ +€43.00 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +€168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +€168.16 ]
Microsoft® Windows® 10 IoT Enterprise LTSB x64 English (HighEnd, For i7/Xeon CPU)
[ +€156.92 ]
Microsoft® Windows® 10 IoT Enterprise LTSB x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +€88.18 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€21.58 ]
Extended Warranty for 6 Months
[ +€43.15 ]
Extended Warranty for 12 Months
[ +€103.56 ]
Extended Warranty for 24 Months
[ +€172.60 ]
Extended Warranty for 36 Months
[ +€258.90 ]

Comment

Specifications
Category
Attribute
Value
System
System
6th Gen Intel Core i-Series based Fanless Box PC with iDoor Expansions
Processor
Processor
6th Gen Intel® Core™ i-Series Processor Onboard
Chipset
Chipset
Intel® QM170
Memory
Memory
8GB DDR4 Memory Built-In
Expansion Slots
Expansion Slots
2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)
2 x PCI (Default)
2 x PCIex4 (Optional)
HDD
HDD
2 x 2.5" SATA HDD
HDD Expansion
HDD Expansion
2 x 2.5" SATA HDD bay
Solid State Disk
Solid State Disk
1 x 2.5" SSD HDD (Optional)
LVDS
LVDS
None
DVI
DVI
None
VGA
VGA
x1
HDMI
HDMI
x1
Ethernet
Ethernet
2 x 10/100/1000Base-T Gigabit Ethernet
I/O Ports
I/O Ports
4 x USB 3.0
2 x USB 2.0
2 x RS-232
2 x RS-232/422/485
1 x DVI
1 x HDMI
1 x DP
1 x Speaker-out
1 x Mic-In
Environment
Environment
With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
With HDD: 0 ~ 40° C with 0.7m/s air flow
Dimensions (W x H x D)
Dimensions (W x H x D)
220 x 101 x 233 mm
(8.66" x 3.98" x 9.17")
OS (Optional)
OS (Optional)
Windows® XP Pro
Windows® 7
Additional OS options available
