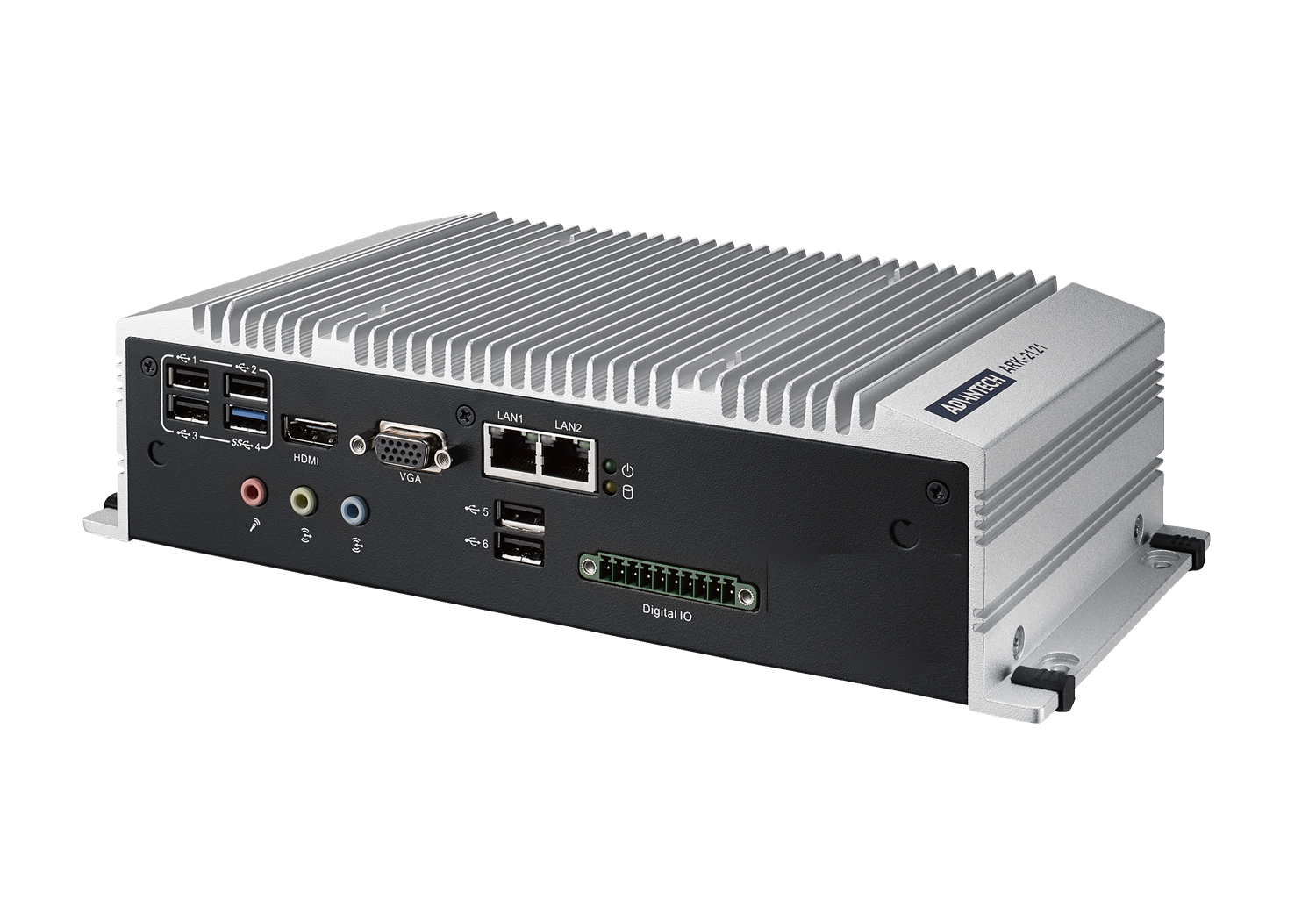

ARK-2121F-U0A2E Celeron J1900 D1 2.0GHz 6COM

  1. Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
  2. VGA and HDMI dual independent display
  3. 6 x COM, 6 x USB, isolated DIO
  4. 9 ~ 36 VDC wide range power input
  5. -20 ~ 70° C extend temperature operating
  6. Mini PCIe expansion with SIM holder for communication module
  7. mSATA and 1 x 2.5" SATA storage device
  8. Optional DVI/2nd HDMI/4x GbE by project support
  9. No RED Certification
Please visit via PC to place order/quote
Contact us for stock info
Request Quantity Discount
Specifications
Category
Attribute
Value
Memory
ECC Support
No
Memory
Max. Capacity
8 GB
Memory
Socket
1 x 204-pin SO-DIMM
Memory
Technology
DDR3L 1333 MHz
Processor
BIOS
AMI EFI
Processor
Core Number
4
Processor
CPU
Intel Celeron Processor J1900 Quad Core SoC
Processor
Frequency
2.0 GHz, turbo boost up to 2.42 GHz
Processor
L2 Cache
2 MB
Storage
2.5" HDD/SSD
1 x 2.5" SATA Drive bay (Compatible with 12.5mm height)
Storage
mSATA
1 x full size mSATA socket, with USB signal co-lay
Environment
Operational Temperature
With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
Environment
Storage Temperature
-40 ~ 85° C (-40 ~ 185° F)
Other
Digital IO
4ch digital input and 4ch digital output with 3kV isolation
Power
Consumption
Typical 8.4 W, Max. 16.2 W
Power
Input Voltage
9 ~ 36 VDC
Power
Power Adaptor
AC to DC, DC19 V/3.42 A, 65 W (Optional)
Power
Power Type
ATX
Ethernet
Controller
2
Ethernet
LAN1
10/100/1000Mbps Intel i210 GbE, support Wake On LAN,
Ethernet
LAN2
10/100/1000Mbps Intel i210 GbE, support Wake On LAN,
Ethernet
LAN3/LAN4
support by project
Graphics
Chipset
Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core
Graphics
Dual Display
Yes, VGA + HDMI
Graphics
Graphic Engine
DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2
Graphics
HDMI
1
Graphics
VGA
1
Audio
Main System
Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface
GPIO
8-bit
I/O Interface
PS/2
Yes ( by project only)
I/O Interface
Serial
6
I/O Interface
Serial Port
6 x RS232/ 422/ 485
I/O Interface
USB Interface
1 x USB 3.0, 5 x USB 2.0, 1 x internal USB 2.0 for security dongle
I/O Interface
USB2.0
6
I/O Interface
USB3.0
1
Environment
Relative Humidity
95% @ 40° C (non-condensing)
Environment
Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Environment
Vibration During Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Certification
EMC
CE/FCC Class A, CCC, BSMI
Certification
Safety Certifications
CB, UL, CCC, BSMI
Expansion
Mini PCI Express
2
Expansion
Mini PCIe #1
1 x Full-size mPCIe with SIM holder
Expansion
Mini PCIe #2
1 x Full-size mPCIe
Power Consumption
Max.
16.2W
Power Consumption
Typical
8.4W
Mechanical
Construction
Aluminum housing
Mechanical
Dimensions
264.5 x 68.4 x 133.0 mm (10.41" x 2.69" x 5.24")
Mechanical
Mounting
Din-Rail mounting, Desk/wall-mounting, VESA mounting
Mechanical
Weight
2.3 kg (5.07 lb)
Others
Watchdog timer
255 levels timer interval, setup by software
Software Support
Linux
Support by project
Software Support
Microsoft Windows
WES8, Windows 8, WES7, Windows 7
