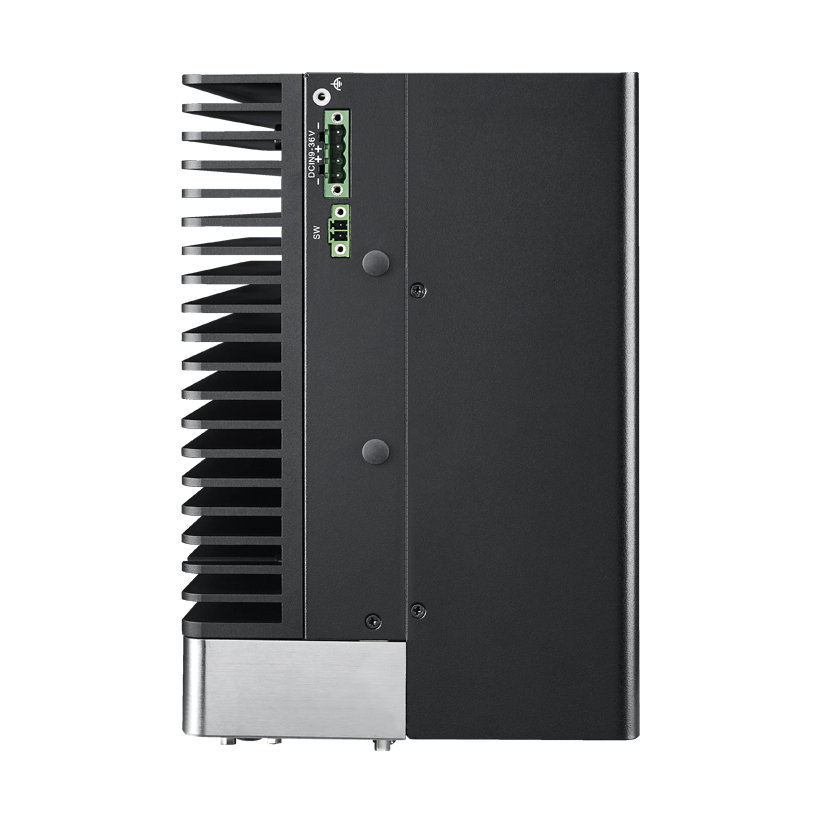

ARK-3532C-00A1 Intel CML W480E PCIex4+2*PCI, 9-36V

  1. Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
  2. Triple independent display: VGA + HDMI + Optional Display
  3. DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
  4. 9-36VDC wide range power input
  5. Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
  6. Support 4GbE, 8USB, 6COM
  7. No RED Certification
Please visit via PC to place order/quote
Contact us for stock info

€867.60

Request Quantity Discount Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Specifications
Category
Attribute
Value
Memory
ECC Support
Yes(by processor)
Memory
Max. Capacity
64 GB
Memory
Socket
2 x 260 pin SO-DIMM
Memory
Technology
DDR4 2933MHz SO-SIMM
Processor
Chipset
W480E
Processor
Core Number
10/ 10/ 8/ 6/ 4/ 2
Processor
CPU
Intel Xeon W-1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10100E/Intel Celeron G5900E
Processor
L3 Cache
20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB
Storage
2.5" HDD/SSD
2 x 2.5" SATAIII Drive bay (compatible with 15mm height)
Storage
mSATA
1 x mSATA socket (Share with Mini PCIe)
Environment
Operational Temperature
With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow
Power
Input Voltage
9 ~ 36 VDC
Power
Power Type
AT/ATX
Ethernet
Controller
4
Ethernet
LAN1
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
Ethernet
LAN2
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
Ethernet
LAN3/LAN4
10/100/1000 Mbps Intel I210 GbE, support Wake On Lan
Graphics
Chipset
Intel UHD Graphics 630
Graphics
Graphic Engine
Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
Graphics
HDMI
1
Graphics
VGA
1
Audio
Main System
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface
GPIO
16-bit
I/O Interface
Serial
6
I/O Interface
Serial Port
2 x RS232, 4 x RS232/422/485
I/O Interface
USB Interface
4 x USB 3.2 (10Gbs),2 x USB 3.0, 2 x Independent USB 3.0
I/O Interface
USB3.0
8
Environment
Relative Humidity
95% @ 40° C (non-condensing)
Environment
Shock During Operation
With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration
Environment
Temperature (Storage)
- 40 ~ 85° C (-40 ~185° F)
Environment
Vibration During Operation
With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Certification
EMC
CE/FCC Class B, CCC, BSMI
Certification
Safety Certifications
CB, UL, CCC, BSMI
Expansion
M.2
1
Expansion
Mini PCI Express
1
Expansion
Mini PCIe #1
1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1
Expansion
PCI
2
Expansion
PCI Express x 4
1
Power Consumption
Max.
64.8W
Power Consumption
Typical
30W
Others
Watchdog timer
255 levels timer interval, setup by software
Software Support
Linux
Support by project
Software Support
Microsoft Windows
Windows 10/11 IoT Enterprise LTSC
