Home

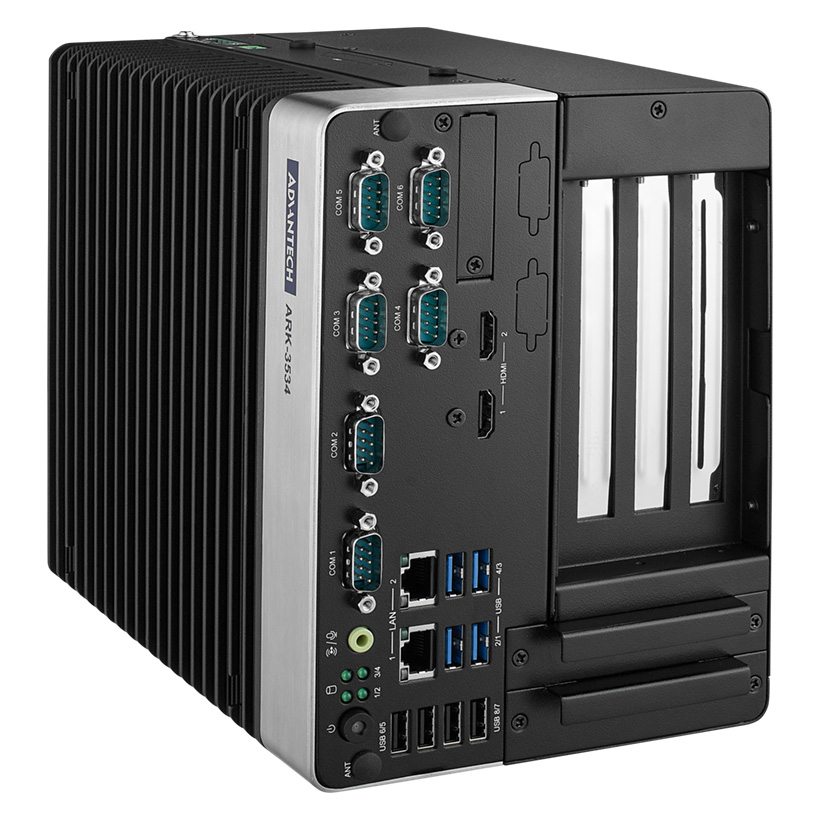

ARK-3534B-00A1 Intel ADL-S H610E PCIex4+PCIex16, 9-36V

Intel ADL-S H610E PCIex4+PCIex16, 9-36V
  • Intel ADL-S H610E PCIex4+PCIex16, 9-36V
  • Intel ADL-S H610E PCIex4+PCIex16, 9-36V
  • Intel ADL-S H610E PCIex4+PCIex16, 9-36V
  • Intel ADL-S H610E PCIex4+PCIex16, 9-36V

  1. Support Intel® 12th & 13th Gen. Core™ i3/i5/i7/i9 processor
  2. Triple independent display: HDMI + HDMI + Optional Display
  3. DDR5 SO-DIMM memory support up to 64 GB
  4. 9-36VDC wide range power input
  5. Up to 3sets 2.5" hard drive bays, support Intel® SW RAID
  6. Support up to 4GbE, 8USB, 8COM, 16bit DIO, 2CANBus, TPM2.0
  7. SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManual3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
2 years extended warranty
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Memory
Max. Capacity
64 GB
Memory
Socket
2 x 262 pin DDR5 SO-DIMM
Memory
Technology
DDR5 4800 MHz
Processor
Chipset
H610E
Processor
CPU
Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
Storage
2.5" HDD/SSD
2 x 2.5" SATAIII Drive bay (compatible with 15mm height)
Other
Watchdog Timer
255 levels timer interval, setup by software
Ethernet
Controller
2
Ethernet
LAN1
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
Ethernet
LAN2
10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
Graphics
Graphic Engine
DirectX 12, OpenGL 4.5 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
Graphics
HDMI
2
Audio
Main System
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface
Serial Port
4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable)
I/O Interface
USB Interface
4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0
Power Requirement
Power Input Votage
9 ~ 36 VDC
Power Requirement
Power Type
AT/ATX
Certification
EMC
CE/FCC Class B, CCC, BSMI, UKCA
Certification
Safety Certifications
CB, UL, CCC, BSMI, UKCA
Expansion
M.2
1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230)
Expansion
PCI Express x 16
1
Expansion
PCI Express x 4
1
Software Support
Microsoft Windows
Windows 10
