Home Compact & Tower Systems Embedded Chassis Universal Compact Chassis

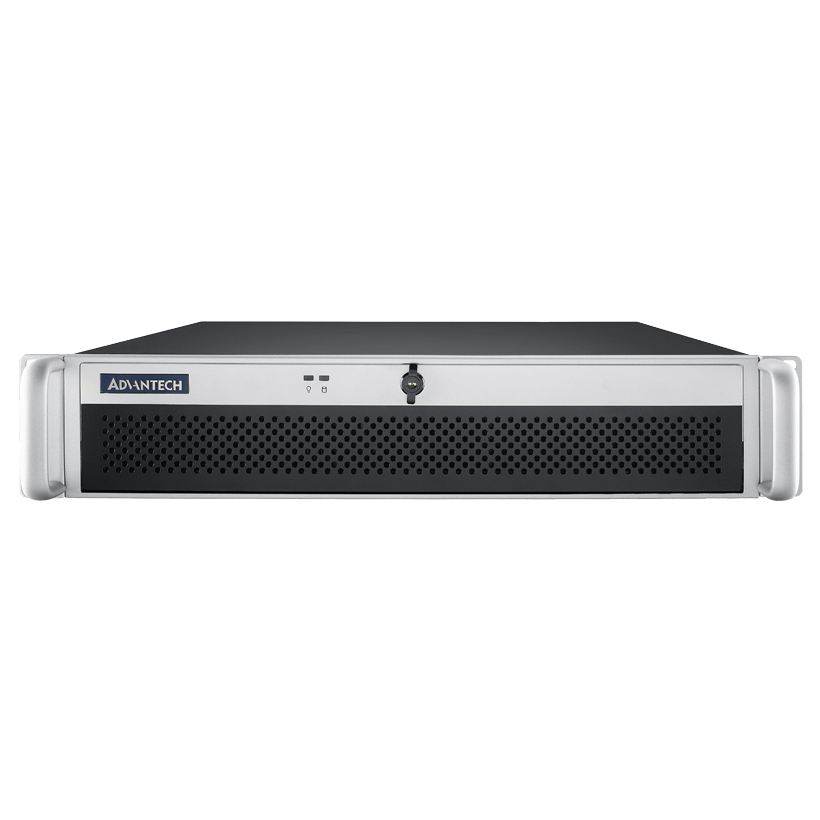

ACP-2020G-85Z ACP-2020G chassis W/850W single power supply

ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply
  • ACP-2020G chassis W/850W single power supply

  1. Support ATX and uATX form factor single processor motherboard with max 80W CPU TDP
  2. Special modularized card cage to provide 350W GPU card tool-less installation experience
  3. Two Internal 2.5" or one 3.5" drive bay and optional 2.5" hot-swap module available
  4. Built in 80 Plus Platinum single 850W power supply
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
Limited availability

€691.34

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Form Factor
2U Rackmount
Front I/O Interface
USB 2.0
2
Cooling
Air Filter
Yes
Cooling
Fan
2 (8 cm / 103 CFM)
Environment
Non-Operating Humidity
10 ~ 95% @ 60° C, non-condensing
Environment
Non-Operating Temperature
-20~60 °C (-4~140 °F)
Environment
Non-Operating Vibration (5 ~ 500 Hz)
2 G
Environment
Operating Humidity
10 ~ 85% @ 40° C, non-condensing
Environment
Operating Shock
10 G (with 11 ms duration, half sine wave)
Environment
Operating Temperature
0~40 °C (32~104 °F)
Environment
Operating Vibration (5 ~ 500 Hz)
0.5 Grms
Mechanical
Dimension (W x H x D)
482 x 88 x 445 mm (18.96" x 3.46" x 17.52")
Mechanical
Weight (Net)
11.78 kg (25.97 lb)
Miscellaneous
LED Indicators
Power, HDD
Miscellaneous
Rear Panel
2 x 9-pin D-Sub opening, phoenix connector
Drive Bay
2.5" External
2 (hot-swap tray module as optional)
Drive Bay
2.5" Internal
1
Drive Bay
3.5" Internal
1
Drive Bay
Slim Optical Drive External
1
Power
Power Consumption
850 W (Single)
System Monitoring
System Monitoring
Chassis intrusion switch
