Home Compact & Tower Systems Embedded Chassis Universal Compact Chassis

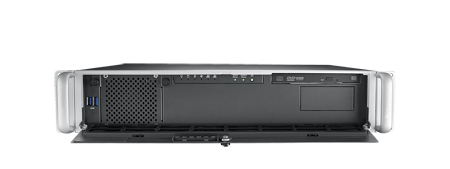

ACP-2020MB-50RE CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE

CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE
  • CHASSIS, ACP-2020MB chassis W/ RPS8-500U2-XE

  1. 398 mm short depth 2U rackmount chassis
  2. Supports ATX and mATX form factor motherboard
  3. Dual front USB 3.0
  4. Support 350W 80 plus single flex ATX power supply or 500W 2U redundant power supply
  5. Front-accessible system fan without opening top cover for easy maintenance
  6. Built-in Intelligent System Module enabling whole system fan control and remote manageability
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€890.91

2 years extended warranty
Request Quantity Discount See Configured Systems Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Form Factor
2U Rackmount
Front I/O Interface
USB 3.0
2
Cooling
Air Filter
Yes
Cooling
Fan
1 (8 cm / 46.62 CFM)
Environment
Non-Operating Humidity
10 ~ 95% @ 60° C, non-condensing
Environment
Non-Operating Temperature
-20~60 °C (-4~140 °F)
Environment
Non-Operating Vibration (5 ~ 500 Hz)
2 G
Environment
Operating Humidity
10 ~ 85% @ 40° C, non-condensing
Environment
Operating Shock
10 G (with 11 ms duration, half sine wave)
Environment
Operating Temperature
0~40 °C (32~104 °F)
Environment
Operating Vibration (5 ~ 500 Hz)
1 Grms
Mechanical
Dimension (W x H x D)
482 x 88 x 398 mm (19" x 3.46" x 15.7")
Mechanical
Weight (Net)
8.6 kg ( 18.96 lbs )
Miscellaneous
LED Indicators
Power, HDD, temperature, fan, LAN1, and LAN2
Miscellaneous
Rear Panel
2 x 9-pin D-Sub openings
Drive Bay
2.5" External
2 (hot-swap tray module as optional)
Drive Bay
2.5" Internal
2
Drive Bay
Slim Optical Drive External
1
Power
Power Consumption
500 W (Redundant)
Intelligent System Module
Remote Monitoring
CPU/System fan speed, CPU/System temperature
