Home Compact & Tower Systems Embedded Chassis Wallmount Chassis

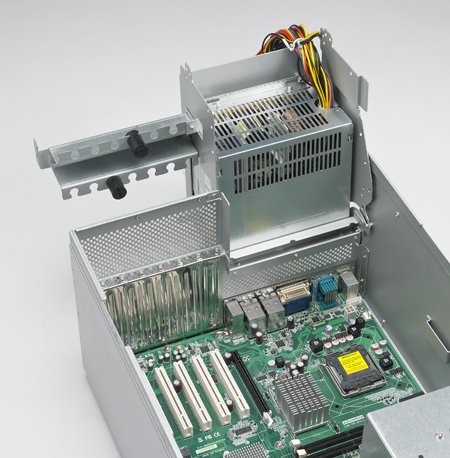

IPC-7130-50B Wallmount chassis ATX/mATX MB W/500W (62368)

Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)
  • Wallmount chassis ATX/mATX MB W/500W (62368)

  1. Shockproof drive bays - One 5.25", 2 hot-swap 3.5" and 1 internal 3.5"
  2. Lockable front door to prevent unauthorized access
  3. LED indicators for system fault detection
  4. Bidirectional to mount chassis on the wall or workbench
  5. Built-in Intelligent System Module enabling whole system fan control and remote manageability
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
Available for delivery

€493.01

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Front I/O Interface
USB 2.0
10 D-sub openings supporting up to 10 COMs with optinal COM cables
Power Supply
Power Supply
500W (Single)
Cooling
Air Filter
Yes
Cooling
Fan
1 (12 cm / 82 CFM) + 1 (6 cm / 27.72 CFM)
Environment
Non-Operational Temperature
-20 ~ 60° C (-4 ~ 140° F)
Environment
Operating Temperature
0~45 °C (32~113 °F)
Mechanical
Dimension (W x H x D)
200 x 320 x 480 mm (7.9" x 12.6" x 18.9")
Mechanical
Weight (Net)
12.8 kg (28.2 lb)
Disk Drive Bay
5.25 External Bay
1
Disk Drive Bay
Hot-swap
2
Miscellaneous
Front Panel
Power, HDD, Temp, Fan
Miscellaneous
LED Indicators
Power, HDD, temperature, fan
