Home Displays Embedded LCD Kits & Modules High Brightness

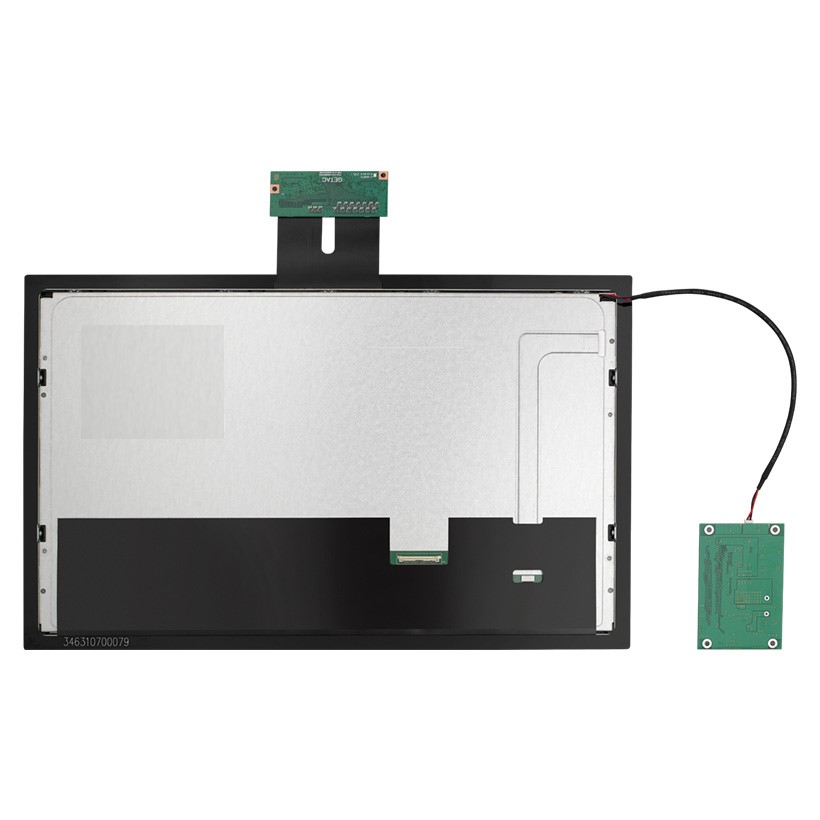

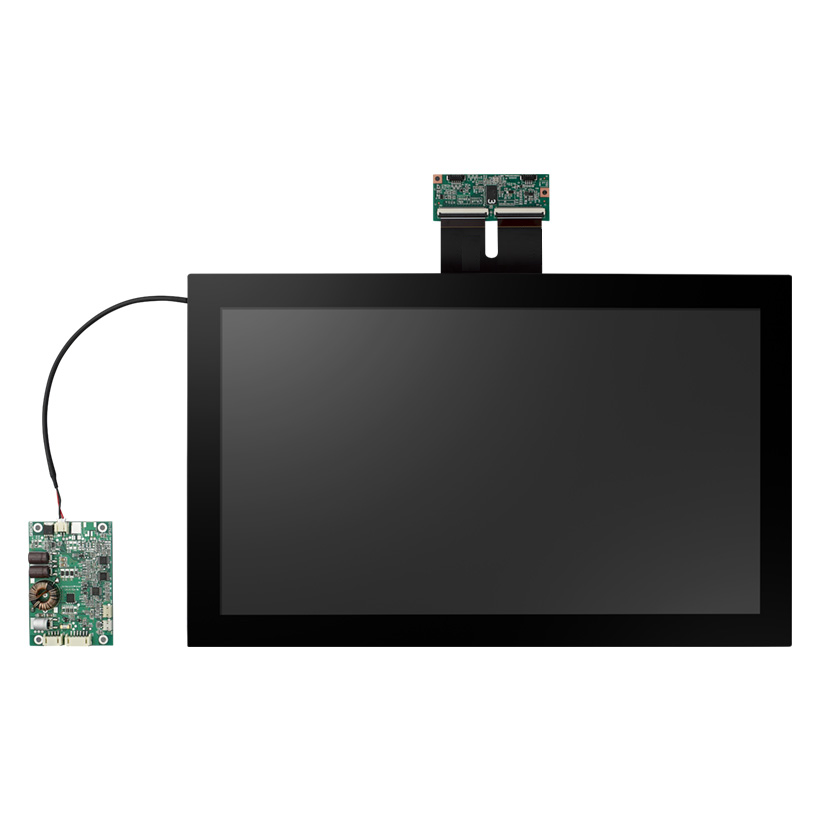

IDK-2115WP-K2FHA1 15.6" 1920x1080 1200N LCD, W/AF PCAP

15.6" 1920x1080 1200N LCD, W/AF PCAP
  • 15.6" 1920x1080 1200N LCD, W/AF PCAP

  1. 15.6" LCD supports 1920 x 1080 pixels
  2. Brightness of 1200 cd/m2 with LED backlight
  3. Wide wiew angle as 170° x 170°
  4. Projected Capacitive touch solution
  5. Touch controller included (USB)
  6. With External LED Driver board
Certifications
CE CE
Resources
Resources Download
DatasheetDownload3D ModelExtended Specifications
Please visit via PC to place order/quote
2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Environment
Operational Temperature
-20 ~ 70° C
LCD Display
Backlight Life (hrs)
50,000
LCD Display
Brightness
1200nits
LCD Display
Colors
262K/16.2M
LCD Display
Contrast Ratio
800 : 1
LCD Display
Interface
LVDS Dual 24bits
LCD Display
Resolution
1920 x 1080
LCD Display
Response Time (ms)
25
LCD Display
Size
15.6"
LCD Display
Touch Screen
Projected Capacitive
LCD Display
Viewing Angle (H/V°)
170/170
Touchscreen
Surface Treatment
Anti-Finger
Touchscreen
Transparency
87%
