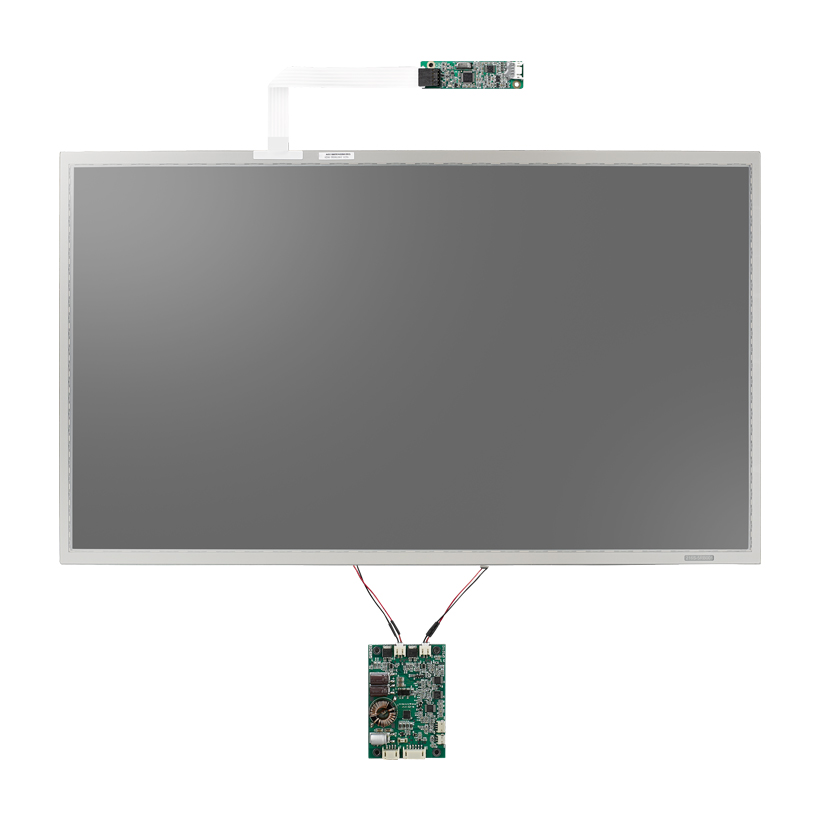

IDK-2121WP-K2FHB1 21.5" LCD, 1920x1080, 1200N W/PCAP

21.5" LCD, 1920x1080, 1200N W/PCAP
  • 21.5" LCD, 1920x1080, 1200N W/PCAP

  1. 21.5" LCD supports 1920 x 1080 pixels
  2. Ultra-high brightness of 1200 cd/m2
  3. High uniformity of 85%
  4. Superior sunlight readability
  5. LVDS signal interface
  6. 5W resistive touch solution (optional)
  7. Anti-Reflection surface treatment (optional)
  8. Manually VR brightness control (optional)
  9. Auto-dimming solution with light sensor (optional)
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadDriverManual3D ModelExtended Specifications
Please visit via PC to place order/quote
2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Environment
Operational Temperature
0 ~ 60°C
Environment
Storage Temperature
-20 ~ 60° C
LCD Display
Backlight Life (hrs)
50,000
LCD Display
Backlight Type
LED
LCD Display
Brightness
1200 nits
LCD Display
Colors
16.7M
LCD Display
Contrast Ratio
1000 : 1
LCD Display
Resolution
1920 x 1080, FHD
LCD Display
Response Time (ms)
16
LCD Display
Signal Interface
2 Channel LVDS
LCD Display
Size
21.5"
LCD Display
Touch Screen
Projected Capacitive
LCD Display
Viewing Angle (H/V°)
178/178
Touchscreen
Durability
No limited
Touchscreen
Transparency
87%
