Home Displays Embedded LCD Kits & Modules LCD Kit Modules

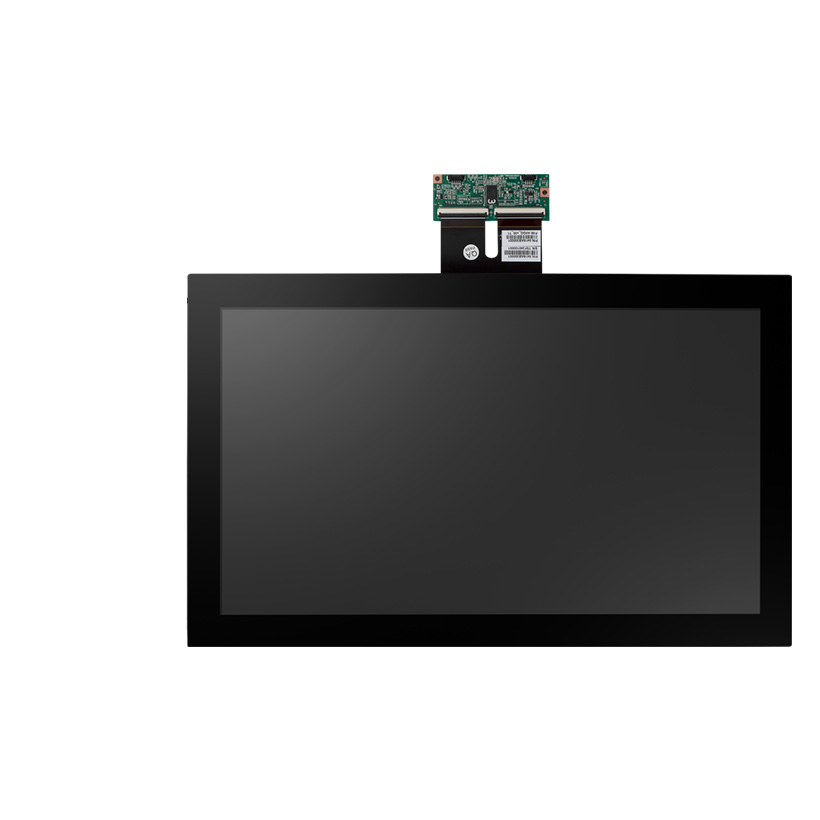

IDK-1115WP-45FHA2 15.6" LCD, 1920x1080, 450N, NB W/AF PCAP

15.6" LCD, 1920x1080, 450N, NB W/AF PCAP
  • 15.6" LCD, 1920x1080, 450N, NB W/AF PCAP
  • 15.6" LCD, 1920x1080, 450N, NB W/AF PCAP
  • 15.6" LCD, 1920x1080, 450N, NB W/AF PCAP

  1. 15.6" LCD supports 1920 x 1080 resolution
  2. LCD Brightness 450 cd/m2 with LED backlight
  3. Projected Capacitive touch solution with Anti-Finger Print surface treatment
  4. Wide view angle
  5. LVDS signal interface
  6. Touch controller included (USB)
  7. Anti Reflector surface treatment (customized solution)
  8. Optical bonding (customized solution)
  9. Note: The panel kits need extra LVDS and backlight cable to connect to single board computer.
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote
2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Environment
Operational Temperature
-20 ~ 70° C
LCD Display
Backlight Life (hrs)
50,000
LCD Display
Brightness
450 nits
LCD Display
Colors
262K/16.2M
LCD Display
Contrast Ratio
800 : 1
LCD Display
Interface
LVDS Dual 24bits
LCD Display
Resolution
1920 x 1080
LCD Display
Response Time (ms)
25
LCD Display
Size
15.6"
LCD Display
Touch Screen
Projected Capacitive
LCD Display
Viewing Angle (H/V°)
170/170
Touchscreen
Surface Treatment
Anti-Finger
Touchscreen
Transparency
87%
