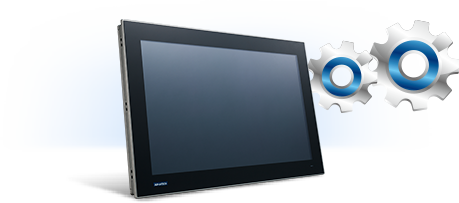

FPM-221W-P4AE LCD DISPLAY, 21.5" Full HD Ind. Monitor, w/ PCAP touch (HDMI)

  1. 21.5" Full HD TFT LED LCD with true-flat touchscreen
  2. 16:9 wide screen aspect ratio, increases viewing area by 40%
  3. Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
  4. Slim design enables easy installation

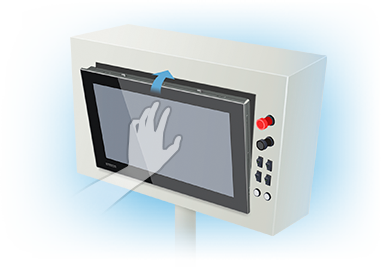

  5. Supports various mount options: panel, wall, desktop, and VESA arm
  6. Touchscreen with reliable glass surface and P-CAP touch control
  7. Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  8. Lockable I/O connectors
Please visit via PC to place order/quote

€669.06

Make an inquiry Add to Quote Add to Cart
Features
Specifications
Category
Attribute
Value
Display
Backlight Life (hrs)
50,000 hrs
Display
Contrast Ratio
1000:1
Display
Display Size
21.5"
Display
Display Type
Full HD TFT LED LCD
Display
Luminance (cd/m2)
250
Display
Max. Colors
16.7 M
Display
Max. Resolution
1920 x 1080
Display
Viewing Angle (H/V°)
178/178
General
Certifications
BSMI, CCC, CE, FCC Class A, UL, CB
General
Dimensions (W x H x D)
558.4 x 349.8 x 56.2 mm (21.98 x 13.77 x 2.21 in)
General
Enclosure
Front panel: Die-casting aluminium,Rear cover: Die-casting aluminium
General
Mounting
Panel, wall, desktop, VESA arm
General
Power Input
External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
General
Video Port
HDMI
General
Weight (Net)
8 kg (17.64 lbs)
Environment
Humidity (Storage)
10 ~ 95% non-condensing
Environment
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Environment
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Environment
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
Environment
Waterproof
Front panel IP65 compliant
Touchscreen
Hardness
7H
Touchscreen
Interface
USB
Touchscreen
Multi Touch
10 points, USB interface in Win 7/8.
Touchscreen
OS Support
Windows® 7, 8, 10, XPe, CE and Linux
Touchscreen
Touch Type
Projected capacitive
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
1702002600 Power Cord UL 3P 10A 125V 183cm €3.95
1700000596-11 Power Cord CCC 3P 10A 250V 183cm €3.23
1702002605 Power Cord EU 3P 10A 250V 183cm 90° €3.70
1702031801 Power Cord BSI 3P 10A 250V 183cm €7.55
Part No. Qty
1702002600
Power Cord UL 3P 10A 125V 183cm
Unit Price: €3.95
1700000596-11
Power Cord CCC 3P 10A 250V 183cm
Unit Price: €3.23
1702002605
Power Cord EU 3P 10A 250V 183cm 90°
Unit Price: €3.70
1702031801
Power Cord BSI 3P 10A 250V 183cm
Unit Price: €7.55
