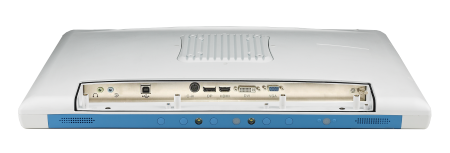

PDC-W210-D10-AGE 21.5" Medical-Grade Monitor

  1. Wide 21" screen with Full HD 1920 x 1080 resolution
  2. Professional LCD quality with 2.3 Megapixel color image
  3. DICOM Pre-setting and convenient for switching between DICOM and Gamma 2.2
  4. Support USB hub function and AC internal power supply
  5. Medical grade, IP-54-rated and cleanable
  6. PCAP Touchscreen (Optional)
Resources
Resources Download
Please visit via PC to place order/quote
Contact us for stock info
Request Quantity Discount
Specifications
Category
Attribute
Value
Display
Backlight
LED
Display
Contrast Ratio
1000:1 (Typ.)
Display
Display Type
21.5" wide TFT color LCD (16:9)
Display
LCD MTBF
30,000 Hours
Display
Luminance (cd/m2)
250 cd/m2 (Typ.)
Display
Max. Colors
16.7 M colors (6-bits+A-FRC)
Display
Max. Resolution
1680 x 1050 (WSXGA+)
Display
Pixel Pitch (mm)
0.2475 x 0.2475
Display
Response Time
25ms (Typ., on/off)
Display
Type
IPS
Display
Viewing Angle (H/V°)
178/178°
Power Supply
Battery Capacity
420 Wh
Power Supply
Battery Charge Time
< 3hr. DOD 100%
Power Supply
Battery Life SPAN
DOD 80%, 2000 cycles
Power Supply
Battery Runtime
8 ~ 10 Hours
Power Supply
Battery Type / Capacity
LiFePO4 (Lithium-Iron Phosphate; LFP)
Power Supply
Management Software
Alerts (Battery capacity, temperature, warning)
Power Supply
Power Adapter
Input:100~250V,0.6A,60/50Hz universal/Output:12V,4.5A
Power Supply
Power Consumption
<30W
Power Supply
Power Input Voltage
100 ~ 240 VAC, 50 ~ 60 H, Max 4.5A
I/O Ports
Audio out
1
I/O Ports
DP
1
I/O Ports
DVI
1
I/O Ports
HDMI
1
I/O Ports
Line in
1
I/O Ports
P-cap USB (Type B)
1 (optional, for P-cap touch only)
I/O Ports
Speaker
Left/ Right
I/O Ports
VGA
1
Computing System
Chipset
4th Generation Intel® Core™ ULT processors + Lynx Point-LP
Computing System
CPU
Intel Atom D510 1.66 GHz with 1M L2 cache
Computing System
Memory
2 GB DDR2 SODIMM
Computing System
Operating System
Supports Microsoft Windows 7; Windows 8
Computing System
Storage
2.5" SATA HDD 160 GB
Computing System
WLAN
802.11b/g/n
Optional Touchscreen
Controller
USB interface
Optional Touchscreen
Durability
Over 50 million touches
Optional Touchscreen
Light Transmission
90±3%
Optional Touchscreen
Resolution
Continuous
Optional Touchscreen
Type
Projected Capacitive 2-points (AR)
Certifications
-
FCC, CE, UL60601-1, EN60601-1
Environment
Humidity
10 ~ 95% @ 40° C (non-condensing)
Environment
Temperature
0 ~ 40° C (Operating)
Environment
Vibration /Shock Resistance
5 ~ 500 Hz, 1G acceleration / 30G half sine, 11 ms duration
Environment
Water/dust Resistance
IP54 for whole system
Optional Functions
DICOM
Compatible to DICOM Part 14
IP Rating
Front Panel
IP65
Base Cart
Accessory Integration Interface
Work Surface: Din Rail (Right and Left )
Base Cart
Casters
125 mm x 125 mm (Medical casters, two locking, two non-locking)
Base Cart
Dashboard
Battery power button
Base Cart
Display Holder
Standard VESA Mount (VESA 75/75; VESA 100/100)
Base Cart
Footprint
19.7" x 18.5" (500 mm x 470 mm)
Base Cart
Height Adjustment Range
32.0” ~ 45.8” (813 ~ 1163 mm)
Base Cart
I/O Ports
USB 2.0 ports x 4, Gigabit Ethernet interface (RJ-45) x 1
Base Cart
Keyboard & Mouse Area
Keyboard LED light
Base Cart
Work Surface
18.5" x 19.3" (469.9 x 489.9 mm)
Color Temperature
Cool
9300° K color temperature
Color Temperature
Neutral
6500° K color temperature
Color Temperature
Warm
5500° K color temperature
Physical Characteristics
Dimensions (W x D x H)
550 x 360 x 65 mm (22.95" x 15.19" x 2.71")
Physical Characteristics
Mounting
VESA 100 x 100 mm
Physical Characteristics
Weight
5.5 Kg
