Home I/O Devices & Communication Cellular Routers & Applications

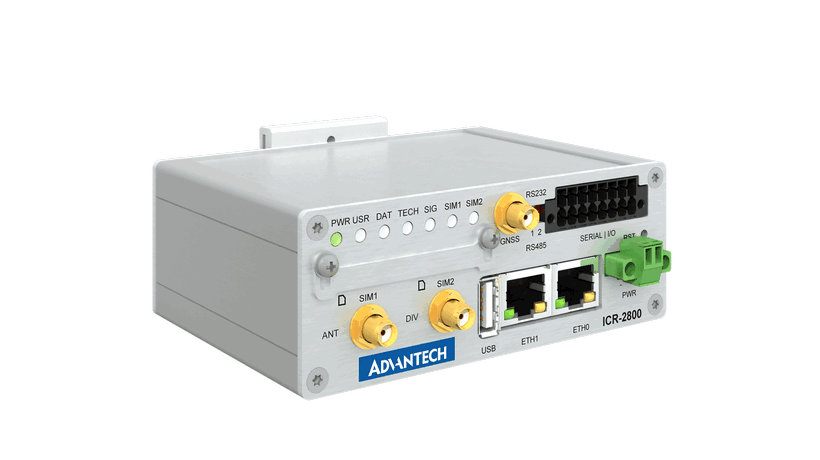

ICR-2834G Cellular Router, Cat4

Cellular Router, Cat4

  1. LTE Cat.4 with 3G/2G fallback
  2. GNSS receiver
  3. 1.3 GB eMMC storage to host customer SW applications
  4. 2× SIM with cover, eSIM ready
  5. 2× Ethernet 10/100, 2× Serial RS232/RS485, USB Host 2.0
  6. Metal case
  7. DIN Rail mounting
  8. Wide operational temperature range
  9. Backup real time clock, Sleep mode
Resources
Resources Download
DatasheetDownloadManualExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€474.80

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Input (DC)
9 ~ 48 VDC
Power
Sleep Mode
Yes
Software
Advances Software Tool
WA/DMP, WA/VPN
Interface
ETH Port(s)
2
Interface
I/O
4 x DI + 2 x DO
Interface
RS232
1-2
Interface
USB
1
Environment
Operating Humidity
5~95%
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Mechanism
Dimensions (W x H x D)
113.2 x 42 x 80.3 mm
Mechanism
Enclosure (Metal)
Metal
Mechanism
Mounting (DIN-rail)
Yes
Wi-Fi / GPS / PoE
GNSS receiver
Yes
Region
EMEA
Yes
Antenna Connectors
Cellular Antennas
2 x SMA
Antenna Connectors
GPS Antenna
1 x SMA
