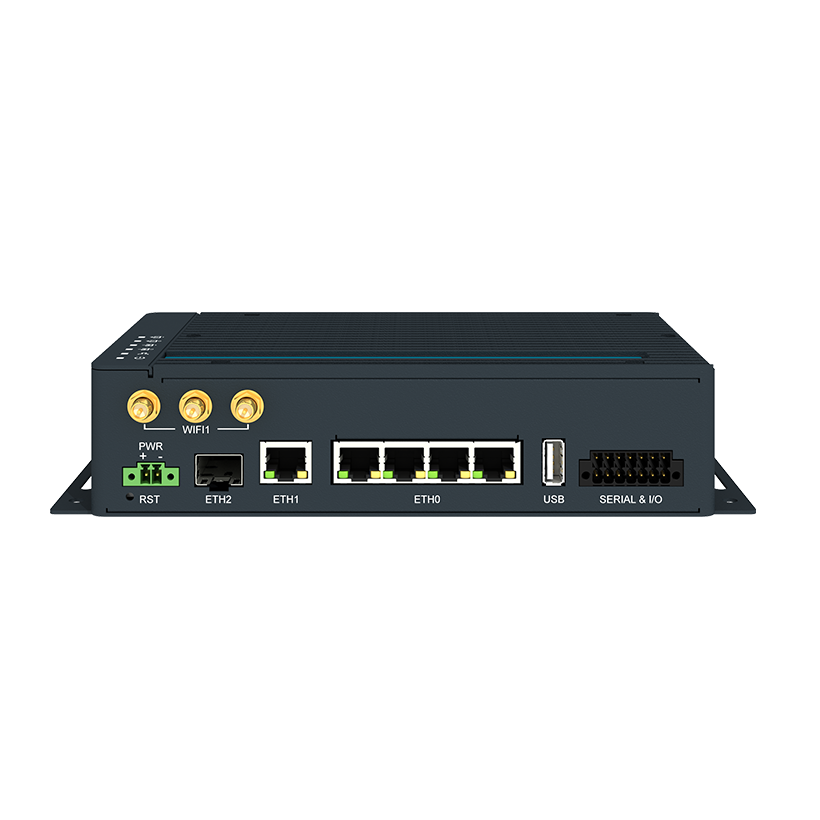

ICR-4401WS Industrial Router, 5x ETH, WIFI, POE

Industrial Router, 5x ETH, WIFI, POE

  1. Quad-core CPU with 1 GB RAM
  2. 5× Gigabit Ethernet, 4× POE+ PSE (PoE use is limited – see the ICR-4401 user manual)
  3. Dual-Band Wi-Fi
  4. SFP Connector for SFP modules up to 10 Gbps
  5. TPM 2.0
  6. RS232, RS485, CAN BUS, 2× DI, 2× DO, USB Host
  7. Micro SD Card
  8. Robust metal cover with wall and DIN mount options
  9. Wide operational temperature range (-40 to +75 °C)
Resources
Resources Download
DatasheetDownloadManualExtended Specifications
Please visit via PC to place order/quote
3 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Input (DC)
9 ~ 48 VDC
Power
Sleep Mode
Yes
Interface
CAN
1
Interface
ETH Port(s)
5
Interface
I/O
2 x DI + 2 x DO
Interface
MicroSD
Yes
Interface
RS232
1
Interface
SFP Cage
1
Interface
USB
1
Environment
Operating Humidity
5~95%
Environment
Operating Temperature
-40 ~ 70°C (-40 ~ 158°F)
Mechanism
Dimensions (W x H x D)
195 x 47 x 109 mm
Mechanism
Enclosure (Metal)
Metal
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Wall)
Yes
PoE Information
PoE-PSE
PoE+ 30W
Wi-Fi / GPS / PoE
WiFi 2.4/5 GHz
Yes
Region
Global
Yes
Antenna Connectors
WiFi Antennas
3 x R-SMA
