Home I/O Devices & Communication Cellular Routers & Applications

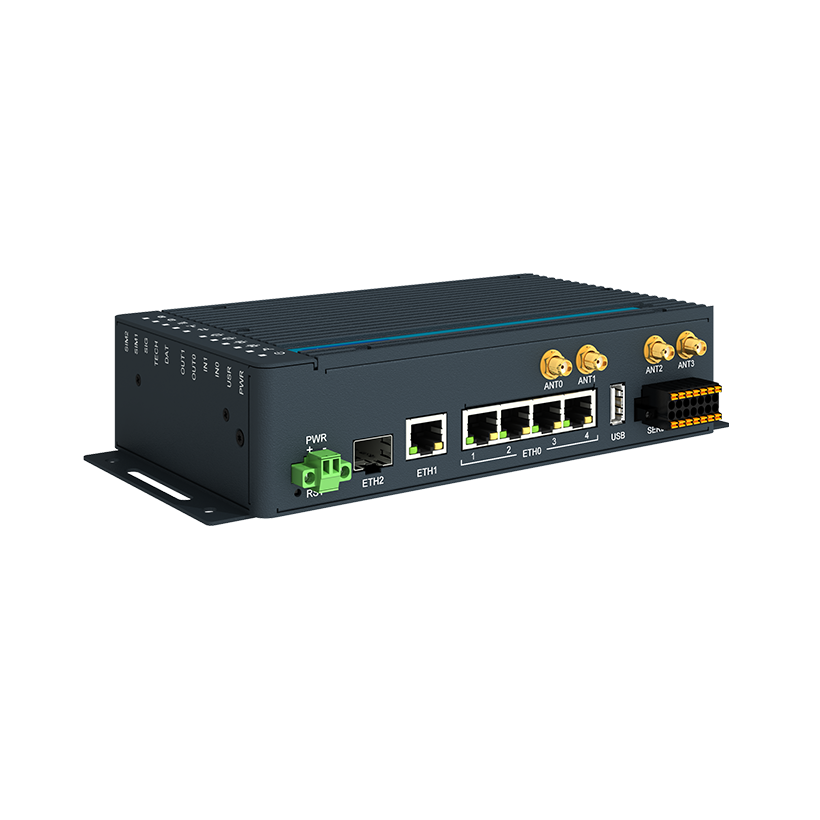

ICR-4461S Cellular Router, 5G, 5x ETH, POE

Cellular Router, 5G, 5x ETH, POE

  1. 5G NR Cellular Connectivity, Sub-6GHz
  2. 3GPP Release 16, Support both NSA and SA modes
  3. Quad-core CPU with 1 GB RAM
  4. 2× SIM, eSIM Ready, TPM 2.0
  5. 5× Gigabit Ethernet, 4× PoE+ PSE (PoE use is limited – see the ICR-4461 user manual)
  6. SFP Connector for SFP modules up to 10 Gbps
  7. RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
  8. Robust metal cover with wall and DIN mount options
  9. Wide operational temperature range
Resources
Resources Download
DatasheetDownloadManualExtended Specifications
Please visit via PC to place order/quote
3 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Input (DC)
9 ~ 48 VDC
Power
Sleep Mode
Yes
Software
Advances Software Tool
WebAccess / DMP
Interface
CAN
1
Interface
ETH Port(s)
5
Interface
I/O
2 x DI + 2 x DO
Interface
MicroSD
Yes
Interface
RS232
1
Interface
RS485
1
Interface
SFP Cage
1
Interface
USB
1
Environment
Operating Humidity
5~95%
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Mechanism
Dimensions (W x H x D)
195 x 47 x 109 mm
Mechanism
Enclosure (Metal)
Metal
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Wall)
Yes
PoE Information
PoE-PSE
PoE+ 30W
Wi-Fi / GPS / PoE
GNSS receiver
YES - Passive
Region
Global
Yes
Region
NAM
Yes
Antenna Connectors
Cellular Antennas
4 x SMA
