Home I/O Devices & Communication Industrial Communication Industrial Media Converters

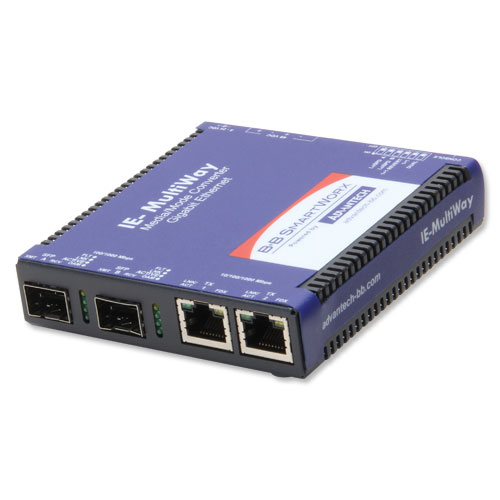

IMC-574I-SFP IE-MultiWay, 2TX/2SFP

IE-MultiWay, 2TX/2SFP
  • IE-MultiWay, 2TX/2SFP

  1. Versatile 4-port media converter
  2. Supports SNMP for management
  3. Supports a variety of SFP modules
  4. Works under an extended temperature range
  5. Supports OAM, VLAN, 1+1 revertive
  6. Provides RS-232 CLI (command line interface) console port
Resources
Resources Download
DatasheetDownloadManualExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info
2 years extended warranty
Request Quantity Discount
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Input (DC)
48 VDC
Environment
Operating Humidity
10~95% (non-condensing)
Environment
Operating Temperature
-10 ~ 50°C (14 ~ 122°F)
Environment
Storage Temperature
-45 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
9.38 x 2.2 x 9.94 cm (3.66 x 0.86 x 3.86 in.)
Mechanism
Weight
0.45 kg (1.0 lb)
Ethernet Communication
Fiber Port Connector Type
SFP cage
Ethernet Communication
Fiber Port Number
2
Ethernet Communication
Fiber Port Optical Mode
Various
Ethernet Communication
Fiber Transmission Speed
10/100/1000 Mbps
Ethernet Communication
Fiber Transmission Wavelength
Various
Ethernet Communication
RJ-45 Port Number
2
Certification
EMC
CE, FCC Class A
Certification
Safety
UL/cUL
PoE Information
PoE Port Number
0
PoE Information
PoE-PSE
-
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
BB-895-39229 BRACKET, WALLMOUNT FOR IE-MediaChassis €17.02
Part No. Qty
BB-895-39229
BRACKET, WALLMOUNT FOR IE-MediaChassis
Unit Price: €17.02
