Home I/O Devices & Communication Industrial Communication Industrial Ethernet Switch

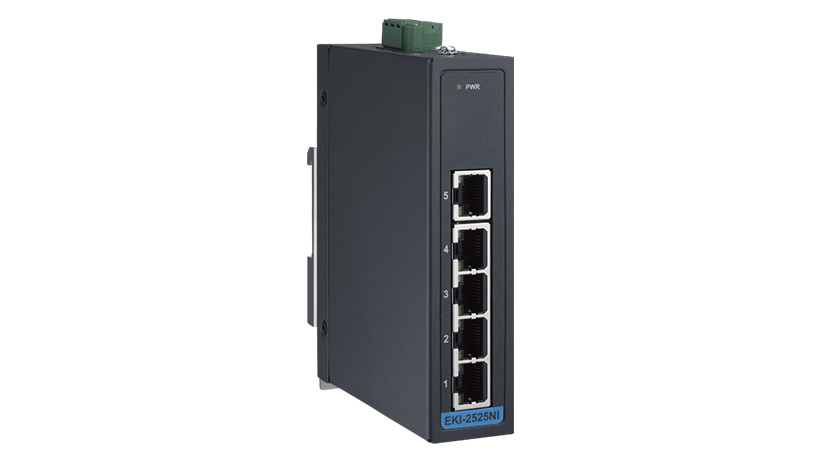

EKI-2525NI-A 5-port Ethernet Switch w/ Wide Temp

5-port Ethernet Switch w/ Wide Temp
  • 5-port Ethernet Switch w/ Wide Temp
  • 5-port Ethernet Switch w/ Wide Temp
  • 5-port Ethernet Switch w/ Wide Temp
  • 5-port Ethernet Switch w/ Wide Temp

  1. Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  2. Supports 10/100 Mbps Auto-Negotiation
  3. Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
  4. Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  5. Supports wide operating temperatures from -40 to 75°C
Certifications
CE CE CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€83.85

5 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Consumption
Max 2W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
75°C (167°F)
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Mechanism
Dimensions (W x H x D)
30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.)
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
-
Ethernet Communication
Fiber Port Connector Type
-
Ethernet Communication
Fiber Port Interface
-
Ethernet Communication
Fiber Port Number
-
Ethernet Communication
Fiber Transmission Distance
-
Ethernet Communication
Fiber Transmission Speed
-
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
5
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Certification
EMI
CE, FCC Class A
Certification
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Certification
Safety
UL 62368
Certification
Shock
IEC 60068-2-27
Certification
Vibration
IEC 60068-2-6
Warranty
Warranty Period
5 years
PoE Information
Support PoE
No
