EKI-2706G-1GFP-AE ETHERNET DEVICE, 5GE+1G SFP Unmanaged Ind. PoE Switch

  1. Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
  2. Supports jumbo frame transmission up to 9 kbytes
  3. DIN-rail with IP30 metal mechanism
  4. Redundant 48 VDC power input
  5. Provides broadcast storm protection
  6. 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
Certifications
RoHS CE 5年保固(90X60)
Please visit via PC to place order/quote

€315.12

Make an inquiry Add to Quote Add to Cart
Features
Specifications
Category
Attribute
Value
Power
Power Connector Type
6-pin removable screw terminal ((power & relay)
Power
Power Consumption
Max 2W
Power
Power Input (AC)
48 VDC
Power
Power Input (DC)
48VDC
Power
Power Operating Current
1A @24VDC
Power
Reverse Polarity (X)
Present
Interface (B)
Ports Number
6
Environment
Relative Humidity
10 ~ 95%
Environment
Temperature (Operating Range)
-10 ~ 60°C (14 ~ 140°F)
Environment
Temperature (Storage Range)
-40 ~ 85°C (-40 ~ 185°F)
Mechanism

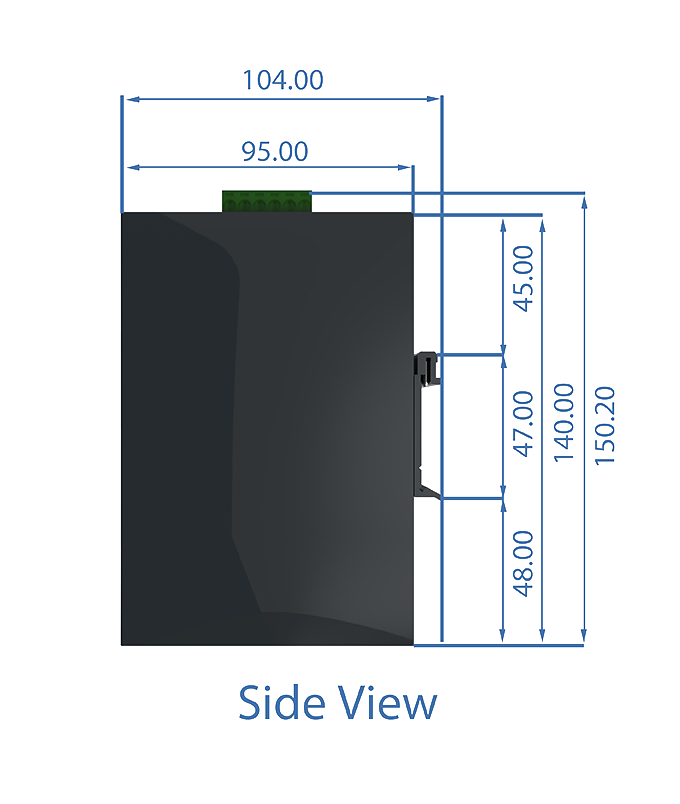

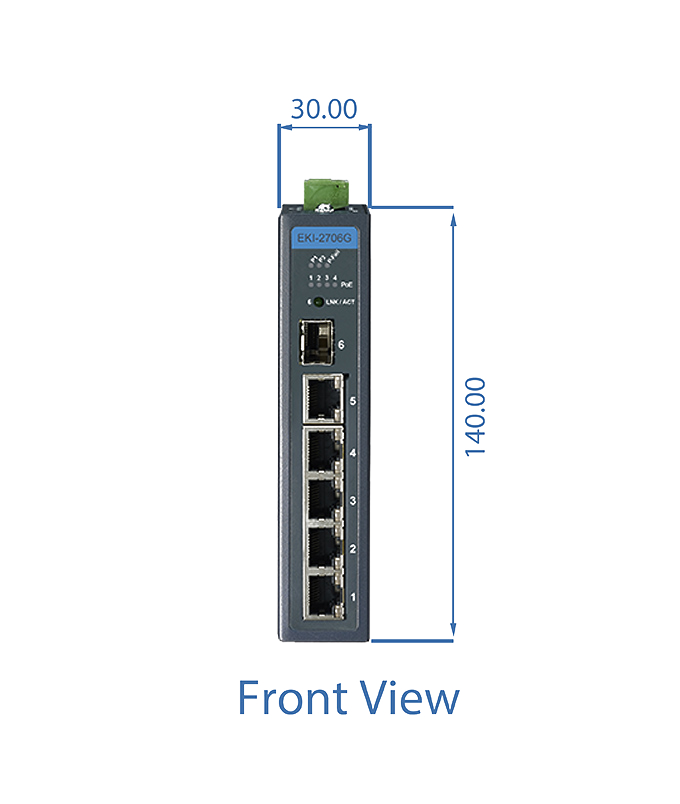

Dimensions (W x H x D)
30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Mechanism
Enclosure (Metal)
Metal
Mechanism
IP Rating
IP30
Mechanism

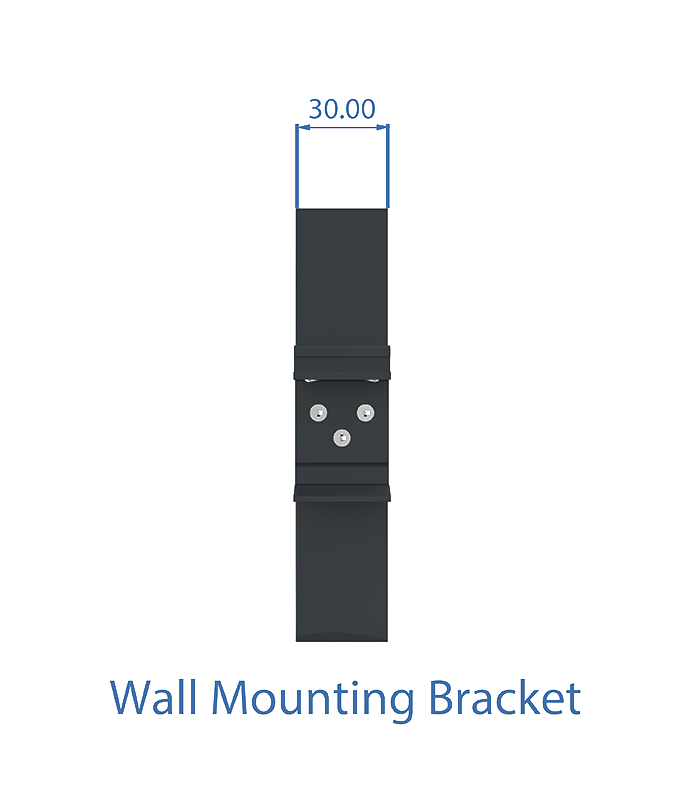

Mounting (X)
DIN-rail, Wall
Mechanism
Weight
0.45 Kg
Ethernet Communication
Fiber Transmission Distance
Up to 110km
Ethernet Communication
RJ45 Port Connector Type
5 x RJ-45 + 1 x SFP ports
Ethernet Communication
RJ45 Transmission Distance
100 m
Ethernet Communication
RJ45 Transmission Speed
10/100/1000Base-T(X) ; 100/1000Base SFP Ports
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
2K
Switch Properties
Packet Buffer Size
1M bit
Switch Properties
Switch Fabric Speed
12Gbps
Certification
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification
EMI
CE, FCC Class A
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
Certification
Freefall
IEC 60068-2-32
Certification
Safety
UL 60950
Certification
Shock
IEC 60068-2-27
Certification
Vibration
IEC 60068-2-6
* Port Configuration
Description
5 x 10/100/1000BaseT(X)
* Port Configuration
Fiber Port Description (X)
1 x SFP(mini-GBIC)port
* Port Configuration
Fiber Port Interface (X)
SFP
MTBF
Method
Telcordia(Relax), GB
MTBF
Time
1,697,086 hours
Warranty
Warranty Period
5 years
Product Category
Yes
PoE Information
PoE Port Number
4
