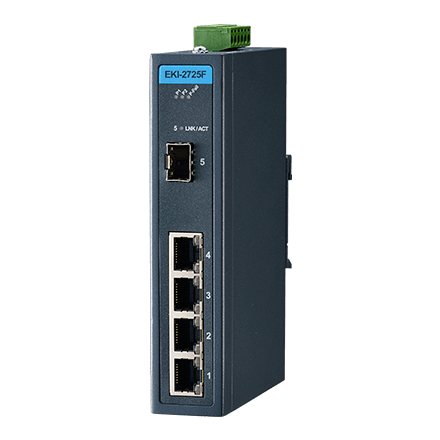

EKI-2725F-AE 4 GE + 1 SFP Ind. Unmanaged Switch

  1. Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
  2. Supports 10/100/1000 Mbps auto negotiation
  3. Supports jumbo frame transmission up to 9kb
  4. Provides slim size, DIN-rail with IP30 metal mechanism
  5. Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  6. Provides broadcast storm protection
Certifications
CE CE CE CE CE
Resources
Resources Download
Please visit via PC to place order/quote
Contact us for stock info

€179.33

Request Quantity Discount Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Features
    1. Power and Simplicity:
      The Widest Selection of Unmanaged Switches in the Industry

  • Advantech's EKI-2000 Series offers the best possible deal for your Ethernet connections. The super-slim IP30 metal casing design provides reliable and compact management that quickly delivers continuous data transmission with a high degree of security, making it an ideal option as your Ethernet solution.
  • Feature Highlights

    1. Highly Versatile Switch Products
      • Ranging from 5 to 28 ports. More than 30 skus
      • Supports din rail, wall mount or rack mount design
      • Supports fast Ethernet or gigabit transmission
      • Optional fiber ports help you conquer the distance boundary
      • PoE functionality serves power and data transmission with one cable
    2. Plug-and-Play
      • No setting effort
      • No compatibility issues
      • Goes along with any type of network infrastructure
      • Slim size for instant installation with minimum cost and effort, allowing users to upgrade to an intelligent plant with ease
    3. Robust Communication Solutions
      • Super slim IP30 metal casing provides reliable and compact management
      • Provides broadcast storm protection that prevents system from being overwhelmed by continuous multicast traffic
      • Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)
  • Product Dimensions and Packing Information

    1. Product Dimensions
    2. Unit: mm
    1. Packing
      • Advantech's EKI unmanaged Ethernet switch series provides several mounting methods to fit the varying needs of different projects in the field.
    1. Opening the Box
Specifications
Category
Attribute
Value
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power
Power Consumption
Max 2.5W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Power
Power Input (PoE)
-
Power
Power Operating Current
1A @ 24 VDC
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
60°C (140°F)
Environment
Temperature (Min. Operating)
-10°C (14°F)
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
0.45 kg (1.0 lb)
Ethernet Communication
Fiber Port Connector Type
SFP cage
Ethernet Communication
Fiber Port Interface
SFP
Ethernet Communication
Fiber Port Number
1
Ethernet Communication
Fiber Transmission Distance
Up to 110 km
Ethernet Communication
Fiber Transmission Speed
100/1000 Mbps
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
4
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100/1000 Mbps
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
2K
Switch Properties
Packet Buffer Size
1M bit
Switch Properties
Switch Fabric Speed
10Gbps
Certification
EMI
CE, FCC Class A
Certification
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification
Safety
UL 60950-1
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
