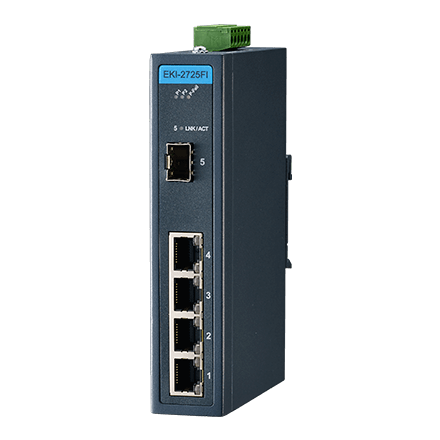

EKI-2725FI-AE 4 GE + 1 SFP Ind. Unmanaged Switch W/T

  1. Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
  2. Supports 10/100/1000 Mbps auto negotiation
  3. Supports jumbo frame transmission up to 9kb
  4. Provides slim size, DIN-rail with IP30 metal mechanism
  5. Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  6. Provides broadcast storm protection
Certifications
CE CE CE CE CE
Resources
Resources Download
Please visit via PC to place order/quote
Contact us for stock info

€252.17

Specifications
Category
Attribute
Value
Power
Power Connector Type
6-pin removable screw terminal (power & relay)
Power
Power Consumption
Max 2.5W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Power
Power Input (PoE)
-
Power
Power Operating Current
1A @ 24 VDC
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Temperature (Max. Operating)
75°C (167°F)
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Environment
Temperature (Operating Range)
-40 ~ 75°C (-40 ~ 167°F)
Environment
Temperature (Storage Range)
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
0.45 kg (1.0 lb)
Ethernet Communication
Fiber Port Connector Type
SFP cage
Ethernet Communication
Fiber Port Interface
SFP
Ethernet Communication
Fiber Port Number
1
Ethernet Communication
Fiber Transmission Distance
Up to 110 km
Ethernet Communication
Fiber Transmission Speed
100/1000 Mbps
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
4
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100/1000 Mbps
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
2K
Switch Properties
Packet Buffer Size
1M bit
Switch Properties
Switch Fabric Speed
10Gbps
Certification
EMI
CE, FCC Class A
Certification
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification
Safety
UL 60950-1
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
