EKI-2701MPI-5G-AE PoE injector 802.3bt-5G

PoE injector 802.3bt-5G
  • PoE injector 802.3bt-5G
  • PoE injector 802.3bt-5G
  • PoE injector 802.3bt-5G

  1. Supports multi data rate 10M/100M/1G/2.5G/5G for Data in and PoE out
  2. IEEE 802.3af/at/bt compliant
  3. Force mode power supports up to 90W by DIP switch
  4. Power input 54~57 VDC, injects power up to 90W
  5. Provides slim size and DIN-rail with IP40 metal mechanism
  6. Supports operating temperatures from -40 ~ 75°C
Resources
Resources Download
DatasheetDownloadManual3D Model
Please visit via PC to place order/quote
Contact us for stock info

€206.60

5 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Features

EKI-2701MPI-5G — Ruggedized Multi-speed Mega PoE Injector

Enables Diverse Infrastructure Applications

EKI-2701MPI-5G is a compact, industrial grade mega PoE injector. It is used to deliver Wi-Fi 6 network infrastructure, power over Ethernet (PoE), and advanced connectivity to out-of-date, extant infrastructure. It supports multiple data rates (10M/100M/1G/2.5G/5G) and IEEE802.3bt 90W PoE output; and is an excellent choice for obsolete infrastructure applications that require heavy network connectivity.



Upgrade network infrastructure using PoE and multiple data rates

  • Supports downward compatible 2.5 and 5Gbps data rates to deliver Wi-Fi 6 capabilities to existing wireless infrastructure
  • Downward compatible for 15, 30, and 60W PoE PD devices, easing network infrastructure upgrades
Press Release

Compatible with different generation devices

  • Downward compatible for 15, 30, and 60W PoE PD devices, easing network infrastructure upgrades
  • Extends extant device lifecycles and maximizes return on investment by future-proofing infrastructure from different generations
Datasheet

Wide operating temperature and compact design

  • Features a compact, palm-sized form factor adaptable to network infrastructure upgrade applications with limited space
  • Supports wide operating temperatures (-40 ~ 75 °C/ -40 ~ 167 °F) found in harsh working environments
360° Video
Certifications

CE

FCC

UL62368

Product Specifications

Dimensions

Unit: mm
EKI-2701MPI-5G
Front View
Side View
Back View
Datasheet

Mounting

Advantech's EKI-2701MPI-5G series features several mounting options that accommodative different field installation

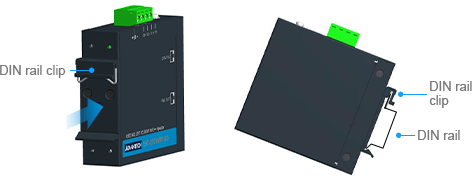

DIN-Rail Mount

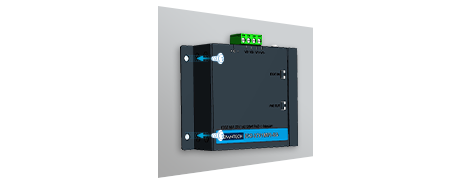

Wall Mount

Inside the Box

EKI-2701MPI-5G
