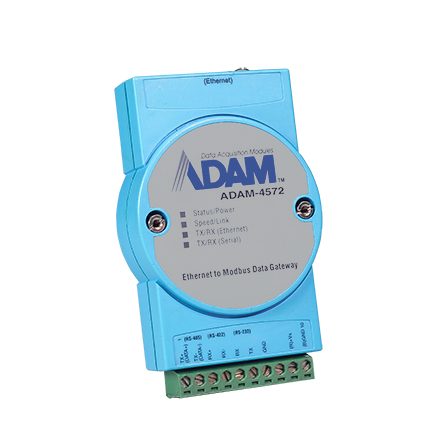

ADAM-4572-CE NEW 1-port RS-232/422/485 Serial Modbus Gateway

  1. Supports 10/100 Mbps communication speeds
  2. Allows up to 8 clients to access field data simultaneously
  3. Supports popular HMI software with Modbus/TCP driver or OPC server
  4. Up to 31 Independent serial ports if configured to RS-485 serial mode
  5. Provides auto-searching device ID Windows utility
  6. Surge protection for RS-485 and power line
  7. Automatic RS-485 data flow control
  8. Easy mounting on DIN-rail or panel
  9. Supports Modbus/ASCII, RTU Protocol to control devices
Certifications
CE
Please visit via PC to place order/quote
Contact us for stock info

€224.36

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Ethernet Port Count
1
General
Mounting
DIN, Panel
General
Power
10-30VDC
General
Serial Port Count
1
General
Serial Type
RS-232/422/485
General
Temperature
0 to 60C
Power
Power Consumption
2.5W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
10 ~ 30 VDC
Power
Power Input (PoE)
-
Power
Power Operating Current
0.3A @ 12 V
Power
Power Operating Voltage
-
Protection
Overload Current
-
Protection
Port to Port Isolation
-
Serial Communication
RS-232
Yes
Serial Communication
RS-422
Yes
Serial Communication
RS-485
Yes
Serial Communication
Serial Port Connector Type
Terminal block
Serial Communication
Serial Port Number
1
Serial Communication
Serial Transmission Speed
-
Software
Baud Rate
50 ~ 921.6 Kbps
Software
Configuration
Windows utility, Web Browser
Software
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software
Operation Mode
Modbus RTU Master/Slave, Modbus ASCII Master/Slave
Environment
Humidity (Operating Range)
5~95% RH
Environment
Relative Humidity
-
Environment
Temperature (Max. Operating)
-
Environment
Temperature (Min. Operating)
-
Environment
Temperature (Operating Range)
-10 ~ 60°C (14 ~ 140°F)
Environment
Temperature (Storage Range)
-20 ~ 80°C (-4 ~ 176°F)
Mechanism
Dimensions (W x H x D)
70 x 112 x 25 mm
Mechanism
Enclosure (Plastic)
Yes
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
125 g
Ethernet Communication
Ethernet Standard
IEEE 802.3 , 802.3u
Ethernet Communication
Fiber Port Number
-
Ethernet Communication
Fiber Port Optical Mode
-
Ethernet Communication
Fiber Port Supports VDSL
-
Ethernet Communication
Fiber Transmission Distance
-
Ethernet Communication
Fiber Transmission Speed
-
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
1
Ethernet Communication
RJ-45 Transmission Distance
-
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Ethernet Communication
RJ-45/SFP Combo Port Number
-
Ethernet Communication
RJ-45/SFP Combo Port Speed
-
Certification
EMC
CE, FCC
Certification
EMI
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification
EMS
EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
Certification
Freefall
NA
MTBF
Method
-
MTBF
Time
-
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
Protocol Support
Modbus ASCII
Yes
Protocol Support
BACnet
-
Protocol Support
EtherCAT
-
Protocol Support
Ethernet
Yes
Protocol Support
EtherNet/IP
-
Protocol Support
Modbus RTU
Yes
Protocol Support
Modbus TCP
Yes
Protocol Support
OPC UA
-
Protocol Support
PROFINET
-
