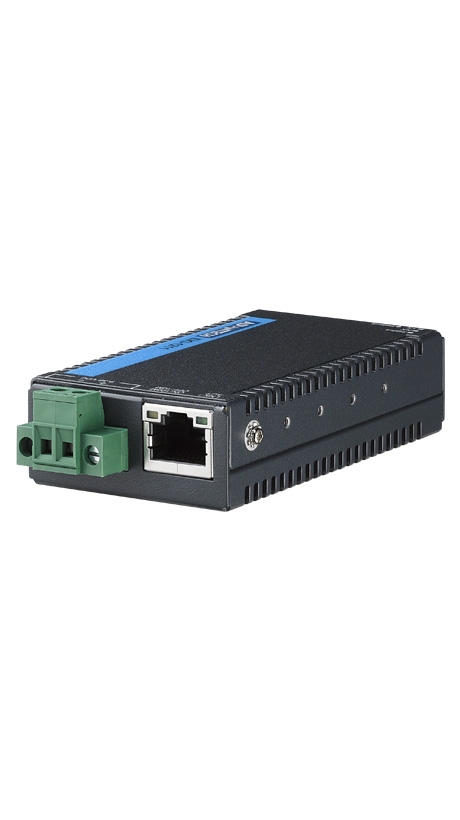

EKI-1211-A 1-port modbus gateway

1-port modbus gateway
  • 1-port modbus gateway
  • 1-port modbus gateway
  • 1-port modbus gateway

  1. 1 x 10/100 Mbps Ethernet port
  2. Integrates Modbus TCP and Modbus RTU/ASCII networks
  3. Baud rate: supports up to 230.4 Kbps
  4. Supports up to 16 connections per serial port under Modbus master mode and 32 sessions under Modbus slave mode
  5. Built-in 8-kV ESD protection for all serial signals
  6. Software-selectable RS-232/422/485-2w/485-4w communication
Certifications
CE CE CE CE
Resources
Resources Download
DatasheetDownloadManualUtilities3D ModelExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€208.65

5 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Features
Entry-Level Modbus Gateway
EKI-1211

EKI-1211 Modbus gateway is an entry-level bi-directional gateway for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. Its compact size means it's suitable for limited space applications, and bring remote management and data accessibility to devices that cannot otherwise connect to a network.

Feature Highlights

Seamless Communication Between Modbus and Ethernet Devices

  • Equipped with 1 x serial port and 1 x Ethernet port.
  • Integrates Modbus TCP and Modbus RTU/ASCII networks
  • Leverages common RS-232/422/485 standard interfaces

Industrial Grade Hardware Design with UL Safety Certification

  • Adheres to EMC and UL certification standards
  • Encased within an industrial-grade, ruggedized metal housing
  • Supports broad operating temperatures of -10 ~ 60 °C (14 ~ 140 °F)
  • Excellent solution for applications within harsh, limited-space environments

Easy-to-use Design

  • Easy to deploy and maintain. Upgrades equipment for better data accessibility without wasting original investments.
  • Monitors and diagnoses serial port status for easy troubleshooting and reduced maintenance.
  • Provides a configuration duplicates function in WebGUI for reducing deployment times.
Utility
Firmware
Certifications

CE

FCC

cUL

Product Specifications

Dimensions

Unit: mm
EKI-1211
Front View
Side View
Back View
Download 3D model

Mounting

Advantech's EKI-1211 series feature several mounting methods to fit the varying needs of different projects in the field

DIN-Rail Mount
Wall Mount

Inside the Box

EKI-1211
Specifications
Category
Attribute
Value
Power
Power Consumption
1W
Power
Power Input (DC)
9 ~ 36 VDC
Protection
Ethernet Isolation
Built-in 2.25 k VDC magnetic isolation
Protection
Serial Isolation
Built-in 8 kV ESD for all signals
Serial Communication
Baud Rate
300~230.4 kbps
Serial Communication
RS-232
Yes
Serial Communication
RS-422
Yes
Serial Communication
RS-485
Yes
Serial Communication
Serial Port Connector Type
DB9 male
Serial Communication
Serial Port Number
1
Serial Communication
Serial Transmission Speed
300 ~ 230.4 kbps
Software
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software
Operation Mode
Modbus RTU Client/Server, Modbus ASCII Client/Server
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Environment
Relative Humidity
10~90% RH
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
60°C (140°F)
Environment
Temperature (Min. Operating)
-10°C (14°F)
Mechanism
Dimensions (W x H x D)
46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
Mechanism
Enclosure (Metal)
Metal with solid mounting hardware
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Wall)
Yes
Ethernet Communication
RJ-45 Port Connector Type
1 x RJ-45
Ethernet Communication
RJ-45 Port Number
1
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Certification
EMC
CE, FCC
Certification
EMI
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification
EMS
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Certification
Freefall
IEC 60068-2-32
Certification
Shock
IEC 60068-2-27
Certification
Vibration
IEC 60068-2-6
Warranty
Warranty Period
5 years
