EKI-1511-A 1-port device server RS-232/422/485

  1. 1 x 10/100 Mbps Ethernet port
  2. Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  3. Baud rate: supports up to 230.4 Kbps
  4. Maximum of five hosts can access one serial port
  5. Maximum of 16 hosts accessed in TCP client mode
  6. Built-in 8-kV ESD protection for all serial signals
  7. Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
  8. Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  9. "I" models support a wide operating temperature
Certifications
CE CE CE CE CE
Please visit via PC to place order/quote
Contact us for stock info

€126.75

Features

Entry-Level Serial-to-Ethernet Device Server

EKI-1511 Series

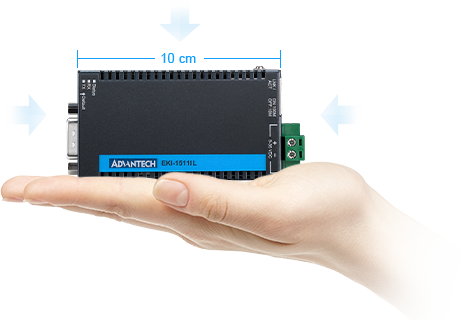

Serial device IP-ization is the first step into the world of industry 4.0. The EKI-1511 series are industrial grade, entry-level serial-to-Ethernet device servers that support widely adopted RS-232/422/485 serial modes for serial-to-Ethernet protocol conversion. Their compact size and affordability are suitable for limited space applications, and projects requiring partial serial device digitalization.

Feature Highlights

Supports Ethernet and Serial Communication

  • Equipped with 1 x serial port and 1 x Ethernet port.
  • Enables protocol conversion between serial and Ethernet protocols
  • Leverages common RS-232/422/485 standard interfaces

Industrial Grade Hardware Design with UL Safety Certification

  • Adheres to EMC and UL certification standards
  • Encased within an industrial-grade, ruggedized metal housing
  • Supports broad operating temperatures of -40 ~ 75 °C (-40 ~ 167 °F)
  • Excellent solution for applications within harsh, limited-space environments

Secure Access IP Function (whitelisting) Augments Security

Secure Access IP — leverages a whitelist that grants communication access to devices with authorized IP addresses exclusively. Users can exploit this feature to define/update IP whitelists according to the security needs of individual devices.

Certifications

CE

FCC

cUL

Product Specifications

Dimensions

Unit: mm
EKI-1511
Front View
Front I/O
Rear I/O

Mounting

Advantech's EKI-1511 series feature several mounting methods to fit the varying needs of different projects in the field

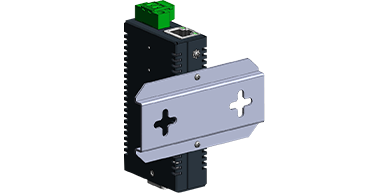

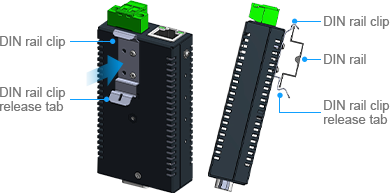

DIN-Rail Mount
Wall Mount

Inside the Box

EKI-1511
Specifications
Category
Attribute
Value
Power
Power Consumption
1W
Power
Power Input (DC)
9 ~ 36 VDC
Protection
Ethernet Isolation
Built-in 2.25 k VDC magnetic isolation
Serial Communication
Baud Rate
300~230.4 kbps
Serial Communication
Serial Port Connector Type
DB9 male
Serial Communication
Serial Port Number
1
Serial Communication
Serial Standard
RS-232 / RS-422 / RS-485
Software
Configuration
Windows utility, Telnet console, Web Browser
Software
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software
Operation Mode
COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
Environment
Operating Humidity
10~95% RH
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
Mechanism
Enclosure (Metal)
Metal with solid mounting hardware
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Wall)
Yes
Mechanism
Weight
125 g
Ethernet Communication
Ethernet Standard
IEEE 802.3 , 802.3u
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
1
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Certification
EMC
CE, FCC
Certification
EMI
EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification
EMS
EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
Certification
Freefall
IEC 60068-2-32
Certification
Safety
UL 62368
Certification
Shock
IEC 60068-2-27
Certification
Vibration
IEC 60068-2-6
Warranty
Warranty Period
5 years
