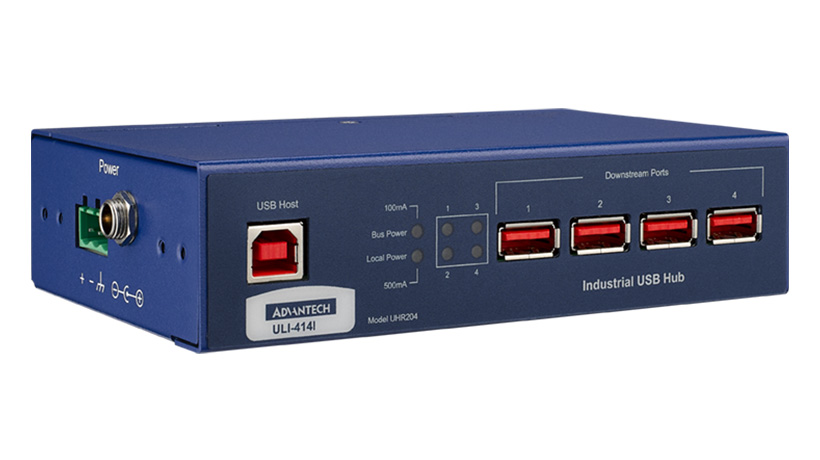

BB-UHR204 CIRCUIT MODULE, USB 2.0 Hub, 4 Port, Industrial

  1. High Retention USB Connectors
  2. Level 4 ESD Protection – 15kV
  3. Rugged Metal Case – Panel & DIN Rail Mount
  4. Wide Operating Temperature (-40 to 80°C)
  5. USB 2.0 – High Speed (480 Mbps
Certifications
RoHS FCC CE
Please visit via PC to place order/quote
Contact us for stock info

€261.02

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Mounting
DIN, Panel
General
Power
Bus, 10-30VDC
General
Technology
USB
General
Temperature
-40 to 80C
General
USB Port Count
1
Power
Power Input (DC)
10 ~ 30 VDC
Protection
ESD Protection
8 kV (Contact) ; 15 kV (Air)
Environment
Temperature (Operating Range)
-40 ~ 80°C (-40 ~ 176°F)
Mechanism
Enclosure (Metal)
Metal
Certification
Safety
UL508, Class 1 Division 2
Accessory General
Mounting
DIN
Upstream USB Port
Connector Type
Type B (Female) High Retention
Upstream USB Port
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Upstream USB Port
Port Number
1
Upstream USB Port
Standard
USB 2.0
Downstream USB Port
Connector Type
Type A (Female) High Retention
Downstream USB Port
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Downstream USB Port
Port Number
4
Downstream USB Port
Standard
USB 2.0
Downstream USB Port
Supply Current
500mA for each downstream port
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
BB-MDR-20-24 POWER SUPPLY, PS, DIN, SLIM, PLASTIC, 24W, 24V €23.06
Part No. Qty
BB-MDR-20-24
POWER SUPPLY, PS, DIN, SLIM, PLASTIC, 24W, 24V
Unit Price: €23.06
