Home I/O Devices & Communication Remote I/O Modules Automation Controllers

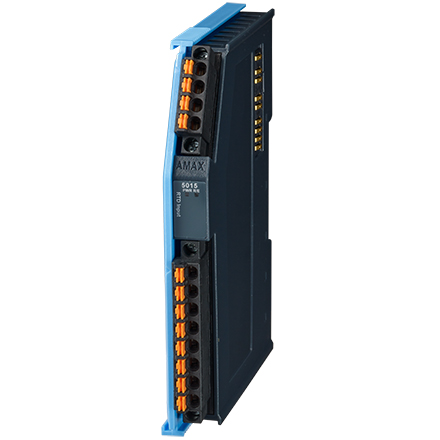

AMAX-5015-A 4-ch RTD Input Module

4-ch RTD Input Module

  1. RTD Input
  2. Channels : 4
  3. Input Connections : 2 or 3 wire
  4. Resolution : 16 bit with ±0.1% FSR accuracy
  5. Sample Rate: 100 sample/s (per channel)
  6. Burn-out detection: Yes
Certifications
CE CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualUtilities3D ModelExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info

€197.59

2 years extended warranty
Request Quantity Discount Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Analog Input
Burn-out Detection
Yes
Analog Input
Channels
4
Analog Input
Sampling Rates(S/s)
100 S/s (per channel)
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
General
Protocol
EtherCAT
Hardware
Certification
CE, FCC class A
Hardware
LED Indicators
PWR, RUN / ERROR
Hardware
Power Consumption
2 W@ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Environment
Operating Temperature
-25~60 °C (-13~140 °F)
Environment
Relative Humidity
95% RH (non-condensing)
Environment
Storage Humidity
95% RH (non-condensing)
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
EtherCAT
Cycle Time
100 μs
Mechanical
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
Mechanical
Enclosure
PC
Mechanical
Mounting
DIN-rail
Mechanical
Weight (Net)
82 g
RTD Input
Input Type
Pt 100, Pt 1000, Balco 500, Ni 518
RTD Input
Resolution
16-bit
