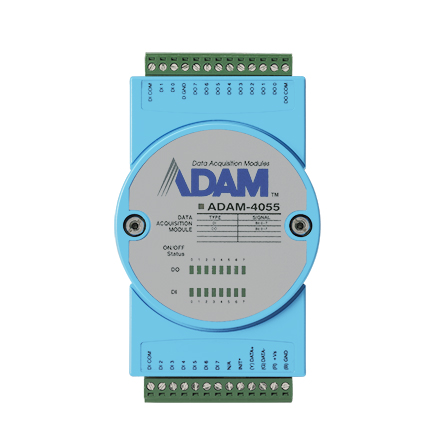

ADAM-4055-C 16-Ch Isolated DI/DO Module w/ LED & Modbus

  1. 8 channel digital input/8ch digital output
  2. Protocols: Modbus RTU, ASCII
  3. Watchdog timer to recover the system
  4. 2500VDC isolation protection
Please visit via PC to place order/quote

$178.50

Make an inquiry Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Specifications
Category
Attribute
Value
General
Connectors
2 x 13-pin plug-in screw terminal
General
Protocol
ASCII command, Modbus/RTU
Hardware
Certification
CE, FCC
Communications
Interface
RS-485
Isolated Digital Input
Channels
8
Isolated Digital Input
Input Voltage
Dry Contact Logic level 1: close to DGND Logic level 0: open Wet Contact Logic level 1: 10~50 VDC Logic level 0: 0~3 VDC
Environment
Isolation Voltage
2,500 VDC
Environment
Operating Temperature
-10~70 °C (14~158 °F)
Isolated Digital Output
Channels
8
Isolated Digital Output
Output Type
Sink
Isolated Digital Output
Output Voltage
0~40 VDC
Isolated Digital Output
Sink Current
200 mA max./channel
Power Requirements
Input Voltage
10~30 VDC
