Home Medical Applications Medical Computers Healthcare Information Terminal

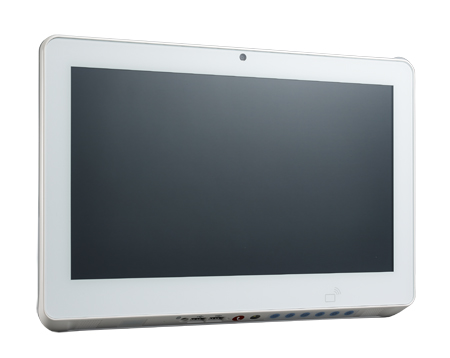

HIT-W153AP-APW1E HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10

HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10
  • HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10
  • HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10
  • HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10
  • HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10
  • HIT-W153 PCT,4G,64G,Cam,WiFiBT,RFID,SC,PoE,win10

  1. Medical and ITE dual certification (EN 60601-1 & IEC 62368) to provide complete application coverage
  2. Rich optional peripherals – Handset / TV Tuner (SMA Jack)/2nd Smart Card Reader, Barcode Scanner/PoE, RFID+HID
  3. Supports nurse call button & LED indicator
  4. Dual isolated Ethernet – Internet (for patients) and intranet (for hospitals) network traffic management and data security
  5. Supports RFID/NFC/Web Camera/Smart Card Reader
  6. Supports M.2 2230 WiFi / BT modules and M.2 2242 SSDs
  7. All-in-one computer with Intel® Apollo Lake N4200 CPU
  8. Innovative and ultra-slim design for healthcare and hospitality applications
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended Specifications
Please visit via PC to place order/quote
Contact us for stock info
2 years extended warranty
Request Quantity Discount
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
Contrast Ratio
1000 : 1
Display
Luminance (cd/m2)
300 cd/m2
Display
Max. Resolution
1920 x 1080 FHD
Display
Size
15.6" W TFT
Display
Viewing Angle
178°/178°
Power Supply
Input Voltage
100 ~ 240 VAC, 1.1 ~ 0.45 A @ 47~ 63 Hz
Network
Bluetooth
BT 4.1 (Default Module)
Network
LAN (Isolated)
Isolated RJ45 (10/100/1000 Mbit) x 2
Network
WLAN
802.11 a/b/g/n/ac (Default Module)
Audio
Internal Microphone
1
Audio
Speaker
3 Watt x 2
I/O Ports
Audio Jack (TRRS)
1
I/O Ports
Handset Out (RJ12)
1
I/O Ports
RFID
1
I/O Ports
Smart Card Reader
1 (Default), Optional 2nd reader
I/O Ports
USB 2.0
2 (Bottom)
I/O Ports
USB 3.0 ports
1 (Rear)
Mechanical
Dimensions (W x H x D)
466.4 x 311.5 x 41mm (18.4" x 12.3" x 1.6")
Mechanical
Mounting
VESA 75/100mm
Mechanical
Weight
Gross Weight: 11.02 lb, 5 kgs
Environment
Operating Temperature
0 – 40°C
Hardware
Bus Expansion
Full Mini-PCIe x 1
Hardware
Camera
5MP CMOS with LED Indicator
Hardware
CPU
Intel® Celeron® Apollo Lake N4200
Hardware
Memory
DDR3L x 1, up to 8GB (Default 4GB)
Hardware
Primary Storage
M.2 2242 SSD (Default 64GB)
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
ARES-5221B-ORW1000 Workstation,≦27",sup2~8kg,single arm w/KBtray €392.00
ARES-5221C-ORW2000 Workstation,≦27",sup2~8kg,dual arm w/KBtray €447.00
ARES-5222A-ATW2000 WallArm,75/100mm,supp2~10kg,Silver+Black €156.00
ARES-7221A-LW22000 MedArm,WB,sup1~6.5kg,wo cables,75/100mm €820.00
ARES-7321I-LW20000 MedArm,WM,sup2.5~6.5kg,wo cable,75/100mm €840.84
ARES-2424X-S170200 TableStand,White,≦21.5'',max.15kg,100x100 75x75m €88.00
ARES-2425X-S271000 TableStand,White,≦27'',max.20kg,100x100 75x75mm €91.00
ARES-2421R-HA74100 TableStand,White,≦27",2~8kg,100x100 75x75mm €104.00
ARES-7621C-LB20000 MedArm,sup15~24",2.5~6.5kg,wo cable,75/100mm €588.88
ARES-7600C-AR00100 Medical Ceiling, min. 1100mm, max.1700mm €355.03
ARES-5222G-ATW1000 ARES-5222G is compatible with 75 x 75 / 100 x 100 mm VESA patterns. It screens up to 32" and supports 2~10 kg. €136.50
Part No. Qty
ARES-5221B-ORW1000
Workstation,≦27",sup2~8kg,single arm w/KBtray
Unit Price: €392.00
ARES-5221C-ORW2000
Workstation,≦27",sup2~8kg,dual arm w/KBtray
Unit Price: €447.00
ARES-5222A-ATW2000
WallArm,75/100mm,supp2~10kg,Silver+Black
Unit Price: €156.00
ARES-7221A-LW22000
MedArm,WB,sup1~6.5kg,wo cables,75/100mm
Unit Price: €820.00
ARES-7321I-LW20000
MedArm,WM,sup2.5~6.5kg,wo cable,75/100mm
Unit Price: €840.84
ARES-2424X-S170200
TableStand,White,≦21.5'',max.15kg,100x100 75x75m
Unit Price: €88.00
ARES-2425X-S271000
TableStand,White,≦27'',max.20kg,100x100 75x75mm
Unit Price: €91.00
ARES-2421R-HA74100
TableStand,White,≦27",2~8kg,100x100 75x75mm
Unit Price: €104.00
ARES-7621C-LB20000
MedArm,sup15~24",2.5~6.5kg,wo cable,75/100mm
Unit Price: €588.88
ARES-7600C-AR00100
Medical Ceiling, min. 1100mm, max.1700mm
Unit Price: €355.03
ARES-5222G-ATW1000
ARES-5222G is compatible with 75 x 75 / 100 x 100 mm VESA patterns. It screens up to 32" and supports 2~10 kg.
Unit Price: €136.50
