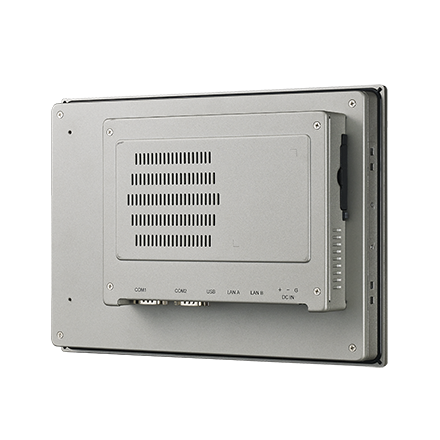

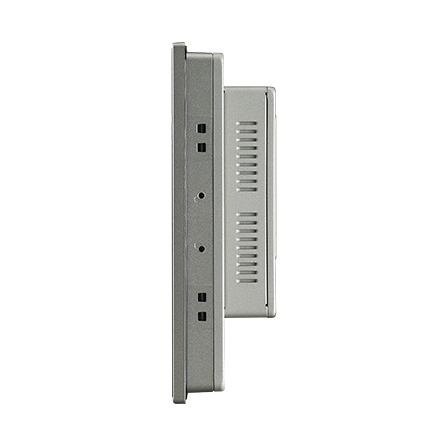

TPC-1051WP-3S51 10.1" WXGA LCD Intel Atom E3827 based Fanless Thin Client Terminal with Mini-PCIe and iDoor Expansion

  1. Industrial 10.1" TFT LCD with 25K Lifetime LED Backlight
  2. Built with Intel® Atom E3827 1.75GHz processor
  3. 4GB Memory Built-in
  4. Supports iDoor with optional accessory kit
  5. IP66 Approved Front Protection & Panel Mounting
  6. 16:9 Wide Screen with PCT Multi-Touch
  7. Anti-scratch surface: 7H hardness
Certifications
R33138 FCC_Class-A CE
Please visit via PC to place order/quote

€1,553.00

2 years extended warranty
Configure System
  • Configure Your System
Base System : 10.1" WXGA LCD Intel Atom E3827 based Fanless Thin Client Terminal with Mini-PCIe and iDoor Expansion
10.1" WXGA LCD Intel Atom E3827 based Fanless Thin Client Terminal with Mini-PCIe and iDoor Expansion
[ +0.00 ]
Power Adapter (E) : NONE
100-240V 60W 24V 2.5A Power Supply with European Power Cord
[ +35.17 ]
100-240V 60W 24V 2.5A Power Supply with UK Power Cord
[ +39.92 ]
NONE
[ +0.00 ]
Memory : 4GB DDR3 Memory Built-in
4GB DDR3 Memory Built-in
[ +0.00 ]
Converter / Adapter : HDD and iDoor Extension Kit
HDD and iDoor Extension Kit
[ +0.00 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATA III HDD 500GB 5KRPM 128MB 24*7
1x 2.5" SATA III HDD 500GB 5KRPM 128MB 24*7
[ +0.00 ]
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ --8.45 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +39.52 ]
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ --3.69 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +23.94 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +79.31 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +189.93 ]
CFast : None
None
[ +0.00 ]
SQF CFast 630 32G SLC (0~70°C)
[ +299.11 ]
SQF CFast 630 32G SLC (-40~85°C)
[ +344.03 ]
iDoor Modules : None
None
[ +0.00 ]
2-Ports Isolated CANBus, CANOpen Mini-PCIe iDoor Module, DB9 x 2
[ +225.87 ]
24-Channels Isolation Digital I/O Mini-PCIe iDoor Module, DB37 x 1
[ +146.71 ]
Operating System (E) : None
None
[ +0.00 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (German)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (French)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (Italian)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 32bit with Recovery DVD (Spanish)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +157.35 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Entry)
[ +44.83 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +0.00 ]
Extended Warranty for 3 Months
[ +19.42 ]
Extended Warranty for 6 Months
[ +38.83 ]
Extended Warranty for 12 Months
[ +93.18 ]
Extended Warranty for 24 Months
[ +155.30 ]
Extended Warranty for 36 Months
[ +232.95 ]

Comment

Specifications
Category
Attribute
Value
Mounting Options
Mounting Options
Desktop
Wallmount
Operating Temperature
Operating Temperature
-20 ~ 55° C (-4 ~ 131° F)
Optical Drive
Optical Drive
None
System
System
10.1" WXGA LCD Intel Atom E3827 based Fanless Thin Client Terminal with Mini-PCIe and iDoor Expansion
Certification
Certification
BSMI, CCC, CE, FCC, UL
Processor
Processor
Intel® Atom® E3827 1.75GHz CPU Built-In
Memory (Max Capacity)
Memory (Max Capacity)
4GB DDR3L Memory (Max 8GB)
Display Type
Display Type
WXGA TFT LED LCD
Display Size
Display Size
10.1"
Max. Resolution
Max. Resolution
1280 x 800
Max. Colors
Max. Colors
262K
Luminance
Luminance
300 nits
Touchscreen
Touchscreen
Projected capacitive
HDD
HDD
1 x 2.5" SATA HDD (Optional)
LAN Interface
LAN Interface
2 x 10/100/1000Base-T
I/O Ports
I/O Ports
1 x USB3.0
1 x USB2.0
1 x RS-232
1 x RS-232/422/485
CF Slot
CF Slot
1 x CFast
Expansion Slots
Expansion Slots
1 x Mini PCIe
Power Input Voltage
Power Input Voltage
24Vdc +/- 20%
Power Consumption
Power Consumption
13.7W (Typical)
Dimensions (W x H x D)
Dimensions (W x H x D)
283.1 x 202.3 x 61.4 mm
(11.15" x 7.96" x 2.42")
OS (Optional)
OS (Optional)
Windows® 7
Additional OS options available
