Home Panel PCs All-in-one Touch Computers Factory Automation Panel (TPC)

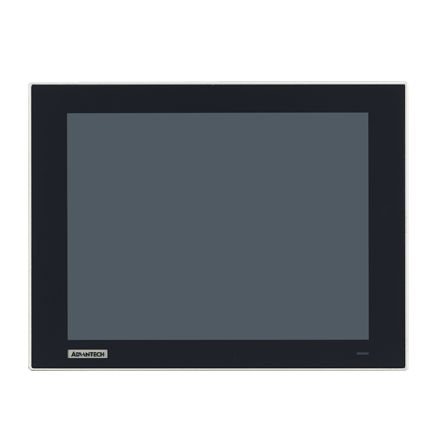

TPC-1251T-3S52 12" TFT LED LCD Intel Atom E3845 based Thin Client Terminals with Mini-PCIe and iDoor expansions

TPC-1251T-E3CE
  • TPC-1251T-E3CE
  • TPC-1251T-E3CE
  • TPC-1251T-E3CE
  • TPC-1251T-E3CE

  1. Features a 12" XGA TFT LED LCD screen
  2. Built with Intel® Atom E3845 1.91GHz Quad core processor
  3. 4GB Memory Built-in
  4. -20 ~ 60° C wide operating temperature
  5. Compact, fanless design with aluminum alloy front bezel
  6. True-flat with IP66 certified front panel protection
  7. Supports iDoor technology for diverse applications
Resources
  • Base System
Please visit via PC to place order/quote

€1,421.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Base System : 12" XGA TFT LCD Intel® Atom™ E3845 Based Thin Client Terminal (True-Flat touch screen)
12" XGA TFT LCD Intel® Atom™ E3845 Based Thin Client Terminal (True-Flat touch screen)
[ +€0.00 ]
Power Adapter (E) : 100-240V 60W 24V 2.5A Power Supply with European Power Cord
100-240V 60W 24V 2.5A Power Supply with European Power Cord
[ +€0.00 ]
100-240V 60W 24V 2.5A Power Supply with UK Power Cord
[ +€5.02 ]
NONE
[ -€-33.64 ]
Memory : 4GB DDR3 Memory Built-in
4GB DDR3 Memory Built-in
[ +€0.00 ]
SQRAM 8G (1 x 8GB) SO-DDR3L-1600MHz 204PIN Industrial Grade Memory (-40 ~85C)
[ +€45.82 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATA III HDD 500GB 5KRPM 128MB 24*7
1x 2.5" SATA III HDD 500GB 5KRPM 128MB 24*7
[ +€0.00 ]
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ -€-4.45 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +€26.35 ]
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ -€-17.38 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +€6.56 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +€60.59 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +€162.22 ]
iDoor Modules : None
None
[ +€0.00 ]
2-Ports Isolated CANBus, CANOpen Mini-PCIe iDoor Module, DB9 x 2
[ +€75.39 ]
2-Port Gigabit Ethernet Mini-PCIe iDoor Module
[ +€124.30 ]
iDoor Module: Isolated RS-422/485, DB9 x 2, (USB type)
[ +€120.75 ]
24-Channels Isolation Digital I/O Mini-PCIe iDoor Module, DB37 x 1
[ +€147.21 ]
Intel 82574L, GbE, IEEE 1588 PTP, RJ45 x 1 iDoor Module
[ +€71.02 ]
iDoor Module: Isolated RS-232, DB9 x 2, (USB type)
[ +€115.42 ]
Mounting : None
None
[ +€0.00 ]
TPC Wall Mount Kit
[ +€53.37 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Entry)
[ +€44.02 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€17.77 ]
Extended Warranty for 6 Months
[ +€35.53 ]
Extended Warranty for 12 Months
[ +€85.26 ]
Extended Warranty for 24 Months
[ +€142.10 ]
Extended Warranty for 36 Months
[ +€213.15 ]

Comment

Specifications
Category
Attribute
Value
System
System
12" TFT LED LCD Intel Atom E3845 based Thin Client Terminal with Mini-PCIe and iDoor expansions
Processor
Processor
Intel® Atom® E3845 1.91GHz
Memory (Max Capacity)
Memory (Max Capacity)
4GB DDR3 Memory
Display Type
Display Type
XGA TFT LCD
Display Size
Display Size
12"
Max. Resolution
Max. Resolution
1024 x 768
Max. Colors
Max. Colors
16.2M
Luminance
Luminance
600 nits
Touchscreen
Touchscreen
Analog Resistive
HDD
HDD
1 x 2.5" SATA HDD
LAN Interface
LAN Interface
2 x 10/100/1000Base-T
I/O Ports
I/O Ports
1 x USB 3.0
3 x USB 2.0
2 x RJ-45
1 x RS-232
1 x RS-232/422/485
Expansion Slots
Expansion Slots
1 x Full-size Mini-PCIe
Power Input Voltage
Power Input Voltage
24 VDC +/- 20%
Dimensions (W x H x D)
Dimensions (W x H x D)
383.2 x 307.3 x 55.9 mm (15.09 x 12.10 x 2.2 in)
Operating Temperature
Operating Temperature
-20~60°C (-4~140°F)
OS (Optional)
OS (Optional)
Windows® 7
Windows® 10
Additional OS options available
Mounting Options
Mounting Options
Panel, wall, desktop, VESA
Optical Drive
Optical Drive
None
Certification
Certification
BSMI, CCC, CE, FCC, UL
