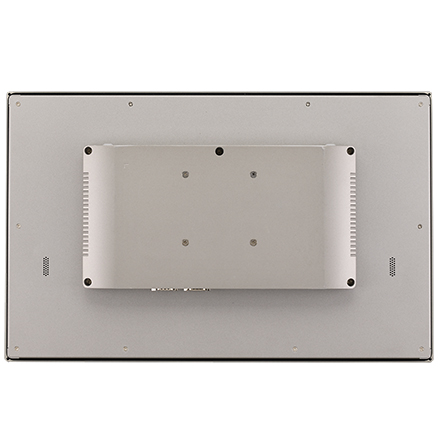

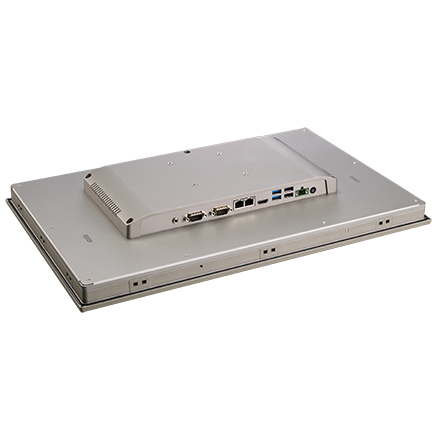

PPC-3180SW-3S50 18.5" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad Core Processor

PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B
  • PPC-3180SW-PN4B

  1. 18.5" true-flat WXGA TFT LCD with projected capacitive touch control
  2. Featuring Intel® Pentium® N4200 1.1 GHz Quad Core Processor
  3. Fanless design with low power consumption
  4. Supports up to 8GB DDR3L Memory
  5. Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
  6. Wide range DC support (12 ~ 24 VDC)
  7. IP65-rated front panel
Certifications
CE CE CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

€1,483.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
Base System : 18.5" Wide screen PPC with PCT Multi-touch, Intel Pentium® N4200 Quad-Core
18.5" Wide screen PPC with PCT Multi-touch, Intel Pentium® N4200 Quad-Core
[ +€0.00 ]
Power Adapter (E) : 19V DC power Adapter Module w/European Power cord
19V DC power Adapter Module w/European Power cord
[ +€0.00 ]
19V DC power Adapter Module w/UK Power cord
[ +€6.05 ]
CPU : Intel® Pentium® N4200 1.1 GHz Quad Core Processor Built In
Intel® Pentium® N4200 1.1 GHz Quad Core Processor Built In
[ +€0.00 ]
Memory : 8GB (1 x 8GB) DDR3-1600MHz 204PIN 512x8 Memory
4GB (1 x 4GB) DDR3-1600MHz 204PIN 512x8 Memory
[ -€-17.90 ]
8GB (1 x 8GB) DDR3-1600MHz 204PIN 512x8 Memory
[ +€0.00 ]
Solid State Disk (mSATA) : SQF mSATA 640 32G MLC (0~70°C)
SQF mSATA 640 32G MLC (0~70°C)
[ +€0.00 ]
SQF mSATA 640 64G MLC (0~70°C)
[ +€26.96 ]
SQF mSATA 640 128G MLC (0~70°C)
[ +€77.84 ]
SQF mSATA 640 256G MLC (0~70°C)
[ +€179.61 ]
SQF mSATA 640 512G MLC (0~70°C)
[ +€383.03 ]
None
[ -€-43.63 ]
HDD/SSD With Bracket : NONE
NONE
[ +€0.00 ]
1x 2.5" SATAIII 500GB 5KRPM 128MB 7mm w/bracket
[ +€68.32 ]
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm w/bracket
[ +€70.77 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm w/bracket
[ +€101.57 ]
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C) w/bracket
[ +€57.84 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C) w/bracket
[ +€81.78 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C) w/bracket
[ +€135.81 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C) w/bracket
[ +€237.44 ]
512GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C) w/bracket
[ +€440.86 ]
Mounting : None
None
[ +€0.00 ]
Wallmount Kit for PPC-174/155/154T Series
[ +€57.68 ]
VESA Standard ARM for PPC Series (w/o adapter)
[ +€143.09 ]
Stand for PPC Series
[ +€132.05 ]
Operating System (E) : None
None
[ +€0.00 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Entry)
[ +€44.02 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +€0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +€10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +€18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +€25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +€0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +€0.00 ]
Extended Warranty for 3 Months
[ +€18.54 ]
Extended Warranty for 6 Months
[ +€37.08 ]
Extended Warranty for 12 Months
[ +€88.98 ]
Extended Warranty for 24 Months
[ +€148.30 ]
Extended Warranty for 36 Months
[ +€222.45 ]

Comment

Specifications
Category
Attribute
Value
System
System
18.5" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad Core Processor
Display Size
Display Size
18.5"
Display Type
Display Type
WXGA TFT LED LCD
Processor
Processor
Intel® Pentium® N4200 quad core
Memory (Max Capacity)
Memory (Max Capacity)
Up to 8GB
Storage
Storage
1 x 2.5" SATA bay
1 x mSATA bay
LAN Interface
LAN Interface
2 x 10/100/1000Base-T
I/O Ports
I/O Ports
1 x RS-232
1 x RS-232/422/485
2 x USB 3.0
2 x USB 2.0
1 x Line-out
1 x HDMI
Expansion Slots
Expansion Slots
1 x Mini PCIe
Dimensions (W x H x D)
Dimensions (W x H x D)
488 x 309 x 58.45 mm (19.21 x 12.16 x 2.3 in)
Weight
Weight
5.4 kg (11.90 lb)
OS (Optional)
OS (Optional)
Windows® 10
Additional OS options available
Power Input Voltage
Power Input Voltage
12 ~ 24 VDC
Power Consumption
Power Consumption
35W (typical)
Max. Resolution
Max. Resolution
1366 x 768
Luminance
Luminance
450 nits
Touchscreen
Touchscreen
PCAP Multi-Touch
Mounting Options
Mounting Options
Wall
Panel
Stand
Optical Drive
Optical Drive
None
Operating Temperature
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F) with SSD
0 ~ 40 °C (32 ~ 104 °F) with HDD
Storage Temperature
Storage Temperature
-20~60°C (-4~140°F)
Certification
Certification
BSMI, CCC, CE, FCC, UL
