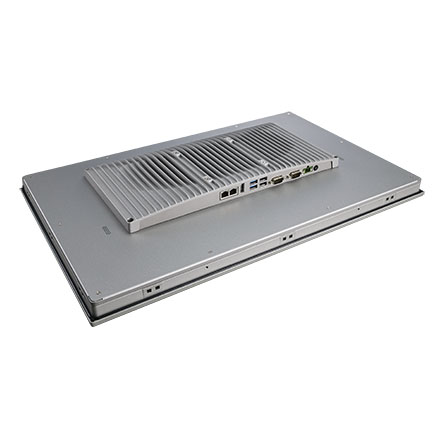

PPC-3211SW-7S50 21.5" Fanless Panel PC with Intel® Core™ i5-6300U Processor

  1. Industrial 21.5" Full HD LED panel with 50k lifetime backlight
  2. Projected capacitive multi touch screen
  3. High performance Intel 6th Gen Core i CPU with Fanless design, System memory up to 16GB DDR4 SDRAM
  4. Compact Fanless Design with solid AI Alloy enclosure, True-flat with IP65 certified front panel protection
  5. Supports dual display (1 x HDMI external), Full-size Mini PCIe Expansion , USB 3.0, VESA 100
Certifications
CE CE CE CE CE CE
Please visit via PC to place order/quote

€2,612.00

2 years extended warranty
Configure System
  • Configure Your System
Base System : 21.5" Fanless Panel PC with Intel® Core™ i5-6300U Processor
21.5" Fanless Panel PC with Intel® Core™ i5-6300U Processor
[ +0.00 ]
Power Adapter (E) : 19V DC power Adapter Module w/European Power cord
19V DC power Adapter Module w/European Power cord
[ +0.00 ]
19V DC power Adapter Module w/UK Power cord
[ +6.10 ]
NONE
[ --21.97 ]
Memory : 8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
8GB (1x8GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +0.00 ]
16GB (1x16GB) DDR4 SODIMM-3200 1GbX8 SAM
[ +19.53 ]
Hard Disk Drive or Solid State Drive : 32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +0.00 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +23.73 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +77.25 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +177.93 ]
Mounting : None
None
[ +0.00 ]
Wallmount Kit for PPC-174/155/154T Series
[ +57.68 ]
VESA Standard ARM for PPC Series (w/o adapter)
[ +143.09 ]
Stand for PPC Series
[ +132.05 ]
Operating System (E) : None
None
[ +0.00 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +168.16 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +168.16 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +88.18 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +0.00 ]
Extended Warranty for 3 Months
[ +32.65 ]
Extended Warranty for 6 Months
[ +65.30 ]
Extended Warranty for 12 Months
[ +156.72 ]
Extended Warranty for 24 Months
[ +261.20 ]
Extended Warranty for 36 Months
[ +391.80 ]

Comment

Specifications
Category
Attribute
Value
System
System
21.5" Fanless Panel PC with Intel® Core™ i5-6300U Processor
Storage
Storage
1 x 2.5" SATA Bay
1 x mSATA Bay
Memory
Memory
1 x SO-DIMM, DDR4 1866/2133, Max 16GB (1.2V)
CPU
CPU
Intel® 6th Gen Core i5-6300U, dual core
I/O Ports
I/O Ports
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
Display Size
Display Size
21.5"
Max. Resolution
Max. Resolution
1920 x 1080
Luminance
Luminance
300 nits
LAN Interface
LAN Interface
2 x 10/100/1000Base-T
Expansion
Expansion
1 x Full size Mini PCIe slot
Power Input Voltage
Power Input Voltage
12 ~ 24 VDC
Operating Temperature
Operating Temperature
0~45°C (32~113°F)
Power Consumption
Power Consumption
45W (typical)
Touchscreen
Touchscreen
10-Points P-Cap Touch Screen
Mounting Options
Mounting Options
Stand, Wall, VESA (Optional)
Dimensions (W x H x D)
Dimensions (W x H x D)
558.4 x 349.8 x 62.2 mm
OS
OS
Windows 7 32bit&64bit
Windows 10 32bit&64bit
WES7, WEC 7
Linux, Android
