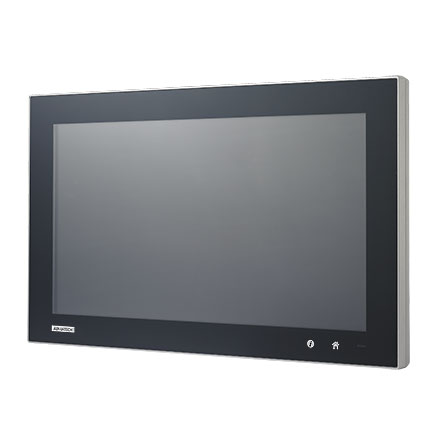

TPC-5212W-9S51 21.5" Full HD Modular Industrial Panel PC with a 6th Gen Intel® Core™ i3-6100U Processor

  1. Intel Core i3-6100U processor with 8GB of DDR4 SODIMM
  2. 3 x LAN with multiple fieldbus protocol support and LAN surge protection
  3. Modular design for flexible configuration and easy maintenance
  4. Display panel modules available in various sizes for multi-touch functionality
  5. Intelligent home key and iKey provide intuitive user interfaces for system control
  6. Built-in Trusted Platform Module (TPM) 2.0
  7. 1 x full-size mini-PCIe with iDoor technology and 1 x half-size PCIe
  8. Optional Wi-Fi/NFC module on the front panel;IP66-compliant front panel protection
  9. IEC 61010-2 compliant (only panels of certain sizes)
Please visit via PC to place order/quote

€2,677.00

2 years extended warranty
Configure System
  • Configure Your System
Base System : TPC-5212W COMPUTER SYSTEM, Modular 21.5" PCT with Core i3 & 8G RAM
TPC-5212W COMPUTER SYSTEM, Modular 21.5" PCT with Core i3 & 8G RAM
[ +0.00 ]
Power Adapter (E) : NONE
100-240V 60W 24V 2.5A Power Supply with European Power Cord
[ +30.86 ]
100-240V 60W 24V 2.5A Power Supply with UK Power Cord
[ +35.28 ]
NONE
[ +0.00 ]
Memory : 8GB DDR4 Memory Built-In
8GB DDR4 Memory Built-In
[ +0.00 ]
Hard Disk Drive or Solid State Drive : 1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
1x 2.5" SATAIII 1TB 5KRPM 128MB 7mm
[ +0.00 ]
1x 2.5" SATAIII 2TB 5KRPM 128MB 7mm
[ +28.90 ]
32GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ --2.23 ]
64GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +21.94 ]
128GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +70.40 ]
256GB 2.5" SATA Solid State Disk (MLC 640, 0~70°C)
[ +167.18 ]
iDoor Modules : None
None
[ +0.00 ]
2-Ports Isolated CANBus, CANOpen Mini-PCIe iDoor Module, DB9 x 2
[ +205.14 ]
24-Channels Isolation Digital I/O Mini-PCIe iDoor Module, DB37 x 1
[ +133.33 ]
1-Port Gigabit Ethernet Module, Intel 82574L, Mini-PCIe
[ +61.55 ]
2-Port Gigabit Ethernet Mini-PCIe iDoor Module
[ +123.07 ]
1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9, Master
[ +631.12 ]
1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9, Slave
[ +539.40 ]
Keyboard : None
None
[ +0.00 ]
MICROSOFT KEYBOARD USB 104KEYS ENGLISH BLACK
[ +15.74 ]
Mouse : None
None
[ +0.00 ]
LOGITECH M100 MOUSE OPTICAL USB
[ +11.85 ]
Operating System (E) : None
None
[ +0.00 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (English) [Minimum space required: 32GB]
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (German)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (French)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Italian)
[ +157.35 ]
Microsoft® Windows® 7 Pro SP1 64bit with Recovery DVD (Spanish)
[ +157.35 ]
Microsoft® Windows® 10 IoT Enterprise LTSC x64 English (Value, For i5/i3/Pentium/Celeron CPU)
[ +81.83 ]
Burn-in test at room temperature : Not Included (check available options)
Not Included (check available options)
[ +0.00 ]
Burn-In Test w/24 hrs at room temperature
[ +10.00 ]
Burn-In Test w/48 hrs at room temperature
[ +18.00 ]
Burn-In Test w/72 hrs at room temperature
[ +25.00 ]
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +0.00 ]
Extended warranty : NoneExtended Warranty Details
None
[ +0.00 ]
Extended Warranty for 3 Months
[ +33.47 ]
Extended Warranty for 6 Months
[ +66.93 ]
Extended Warranty for 12 Months
[ +160.62 ]
Extended Warranty for 24 Months
[ +267.70 ]
Extended Warranty for 36 Months
[ +401.55 ]

Comment

Specifications
Category
Attribute
Value
Mounting Options
Mounting Options
Desktop
Wallmount
System
System
15"/17"/21.5" SXGA modular TPC, Intel® Core i3-6100U 2.30 GHz, dual-core processor with 8 GB RAM
Certification
Certification
BSMI, CCC, CE, FCC, UL
Processor
Processor
6th Gen Intel® Core™ i3-6100U 2.30 GHz
Memory (Max Capacity)
Memory (Max Capacity)
8 GB DDR4 2133MHz SODIMM SDRAM (up to 16 GB)
Display Type
Display Type
SXGA TFT LED LCD
Max. Resolution
Max. Resolution
1280 x 1024
Max. Colors
Max. Colors
16.7 M
Luminance
Luminance
350 nits
Touchscreen
Touchscreen
Projected capacitive
Storage
Storage
1 x M.2 (2280) SATA
1 x 2.5" SATA SSD
1 x CFast (optional via iDoor)
LAN Interface
LAN Interface
3 x 10/100/1000 Base-T (2 x Intel® I210, 1 x Intel® I219)
I/O Ports
I/O Ports
1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 2 x USB 2.0
1 x Audio Line-Out
1 x DisplayPort 1.4 Out
Expansion Slots
Expansion Slots
1 x Half-size PCIe
2 x Full-size mini PCIe
Power Input Voltage
Power Input Voltage
24Vdc +/- 20%
Power Consumption
Power Consumption
42W (typical)
Dimensions (W x H x D)
Dimensions (W x H x D)
15" 383.2 x 307.3 x 85.9 mm
17" 410.4 x 343.4 x 87.5 mm
21.5" 558.4 x 349.8 x 88.8 mm
OS (Optional)
OS (Optional)
Microsoft® Windows WES7 (32/64 bit)
Windows 7 (32/64 bit)
Windows 8.1 (64 bit)
Windows 10 IoT Enterprise LTSB
