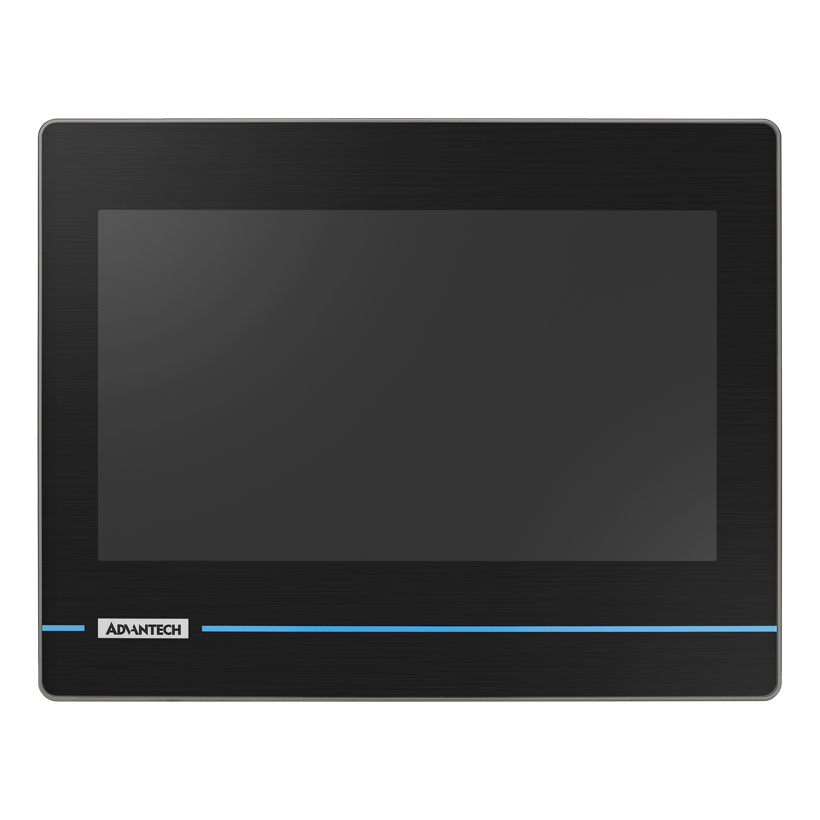

WOP-210K-NAE 10.1" WQVGA Operator Panel Installed with HMINavi Software

  1. ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  2. Supports over 500+ PLC industrial communication protocols
  3. Backup memory 128KB for retaining critical data or parameter
  4. Supports the HMINavi Designer development tool free on Windows 10
  5. Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  6. No limitation on the internal I/Os points used for variety application
  7. Easy to switch one application to different LCD sizes in seconds
  8. Supports operation in both landscape and portrait mode
  9. Panel mount design ensures easy installation and IP66-rated front panel
Certifications
CE CE CE CE CE CE CE CE CE
Please visit via PC to place order/quote
Limited availability

€787.51

Request Quantity Discount Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Features

WOP-200K Series

Powerful Operator Panels Enable Efficient Data Visualization

Exceptional Connectivity

Comprehensive links between PLCs with easy access to the cloud

Intuitive Visualization

Object-oriented HMI Software HMINavi free support

Reliable Design

Wide operating temperature range and IP66 front panel

To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and food & beverage applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by a 32-bit RISC ARM9™ processor with 64 MB working memory. The WOP-200K series systems are available with LCDs of varying size (from 4.3” to 15”).

Seamless Connection Drives Convenient IoT Applications

Supports 500+ PLC Industrial Communication Protocols

WOP-200K can connect to 90% of global PLC devices. The data exchanger function can easily exchange a variety of PLC data. The powerful connectivity makes WOP-200K a perfect fit to existing or future IoT solutions.

Achieve Easy Access to the Cloud with the MQTT Protocol

With the latest MQTT uplink communication protocol, the WOP-200K series makes it easy to achieve OT & IT integration. Users can easily turn legacy machinery into intelligent machinery while having all important data and backups managed by cloud services.

Smart HMI Solutions Fulfill Intuitive Machine Visualization

WOP-200K systems are added to Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization.

Over 50 screen objects can be used for all types of HMI visualizations

Data logger with trend display, with up to 16 different data sources for each display

Support data collection, alarm monitoring, recipe handling and operation logging

No limitation on the number of tags for the internal I/O points

Industrial-Grade Design Assures Reliable Field Implementation

6 screen sizes ensure flexible installation in a variety of work environments

Conformal coating mother boards increase 80% lifecycle

IP66-rated waterproof front panel

-15 ~ 65°C wide operating temperature range

Safety certification UL 61010-1 & UL 61010-2-201

Isolation power input design and 20W low power consumption

Reliable Real-Time OS Reduces Security Issues

Panel Cutout Dimensions: 118.5 x 92.5 mm

Panel Cutout Dimensions: 175 x 132.5 mm

Panel Cutout Dimensions: 221 x 164 mm

Panel Cutout Dimensions: 259.5 x 201.5 mm

Panel Cutout Dimensions: 302 x 228.5 mm

Panel Cutout Dimensions: 384.5 x 283 mm

WOP-200K Series Supports Flexible Communication Architecture for Various Automation Systems

Direct Link

1-to-1 Connection
Use one Serial or Ethernet port to connect one device

1-to-N Multi-Drop Connection
Connect multiple devices together through HMI

N-to-1 Data Sharing Connection
Multiple HMI connections to one device

Indirect Link

2-to-1 Connection
Special 2-to-1 communication service

N-to-1 Connection (COM)

N-to-1 Connection (Ethernet)

Gateway Service

Gateway Service

Data Exchanger
Different brands of PLC controller can directly exchange data

Transparent Communication

2-to-1 Transparent (COM)

Scenario #1: When a PLC connects to 3rd-Party Operator Panels and there is no extra COM/LAN port
Scenario #2: When users don’t have an application program for 3rd-party Operator Panels and need to add new functions
With 2-to-1 transparent functionality, WOP-200 series can be a bridge for connecting devices and adding functionality

Transparent Communication (COM)

Transparent communication is a serial port communication method used to link a PC and a device/server for control and data acquisition through a target panel. The target panel in the link operates as a transparent device that facilitates communication as if the PC is connected to the device/server directly.

Transparent Communication (Ethernet to COM)

Specifications
Category
Attribute
Value
General
Connectors
1 x RJ45, 1 x DB9 female
General
Programming Language
HMINavi Designer
General
Protocol
500+ PLC Drivers
General
Rated Voltage
24 VDC (±10%)
Hardware
Certification
CE, FCC class A, UL-61010
Hardware
CPU
ARM9™ 32-bit RISC processor
Hardware
LAN
1 x 10/100 Mbps
Hardware
Memory
1 x 64 MB SDRAM
Hardware
OS Support
RTOS
Hardware
Power Consumption
20 W @ 24 VDC
Hardware
Power Requirement
24 VDC ±10%
Hardware
Storage
1 x 128M NAND Flash
LCD Display
Backlight Life (hrs)
20,000
LCD Display
Display Size
10.1"
LCD Display
Luminance (cd/m2)
350
LCD Display
Max. Resolution
1024 x 600
I/O Interface
Serial Ports
1 x RS-232, 1 x RS-422/485, 1 x RS-485
I/O Interface
USB Ports
1 x USB (Host), 1 x USB (Client)
Environment
Ingress Protection
Front Panel IP66
Environment
Operating Temperature
-15~65 °C (5~149 °F)
Environment
Relative Humidity
5~95% RH (non-condensing)
Environment
Vibration Protection
1 Grms, random
Touchscreen
Touch Type
4-wire resistive
Mechanical
Dimension (W x H x D)
270.1 x 212.1 x 43.4 mm
Mechanical
Enclosure
PC + ABS
Mechanical
Mounting
Panel
Mechanical
Weight (Net)
1.1 kg (2.43 lb)
